LTX 1050 KH (13RP91AP056) - Cub Cadet 50" Lawn Tractor (2009) Kohler SV715-0002 Air Intake & Filtration Parts Diagram

50" Lawn Tractor

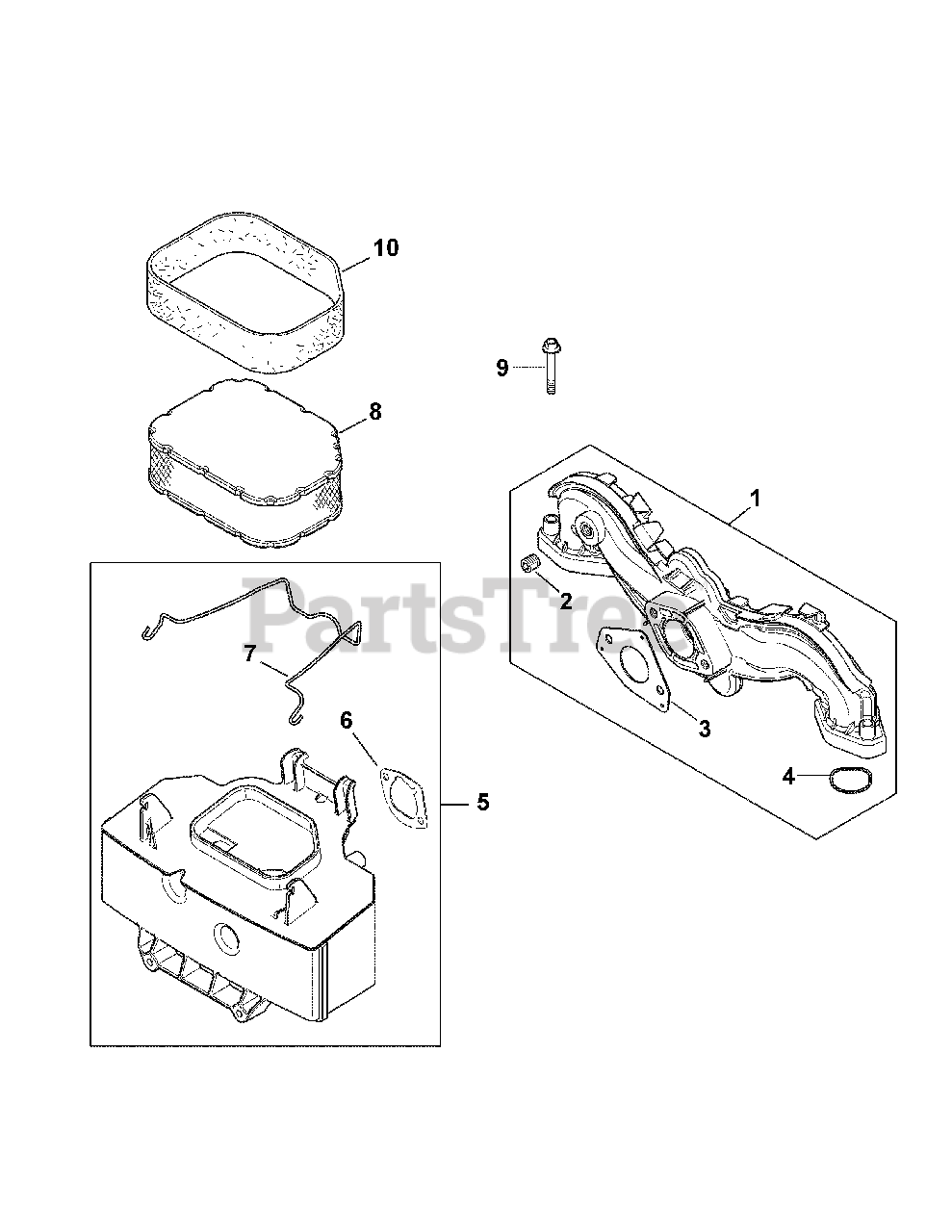

Kohler SV715-0002 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-24-164-91-S

Intake Manifold Kit
(Superseded to KH-24-164-278-S)

Note: (Inc. Ref No. 2-4)

$218.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

$3.99

$

In Stock, Qty 8

0

4

Cub Cadet KH-25-139-60-S

Ctsk. Pipe Plug, 1.8

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-32-094-04-S

Air Cleaner Base Kit

Note: (Inc. Ref No. 5 & 6)

$

$

Not available

6

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

7

Cub Cadet KH-32-344-02-S

Air Cleaner Element Latch

$

$

Not available

8

Cub Cadet KH-32-883-03-S

Air Filter Element with Pre-Cleaner

Note: (replaces KH-32-083-03-S)

$

$

Currently unavailable

9

Cub Cadet KH-M-651040-S

Flg. Screw, M6 X 1.0 X 40

$2.49

$

In Stock, Qty 12

0

10

Cub Cadet N/A

Pre-Cleaner Element

Note: See Ref 8

$

$

Currently unavailable
