LTX 1050 KH (13AP91AP056) - Cub Cadet 50" Lawn Tractor (2009) Kohler SV715-0002 Crankcase Parts Diagram

50" Lawn Tractor

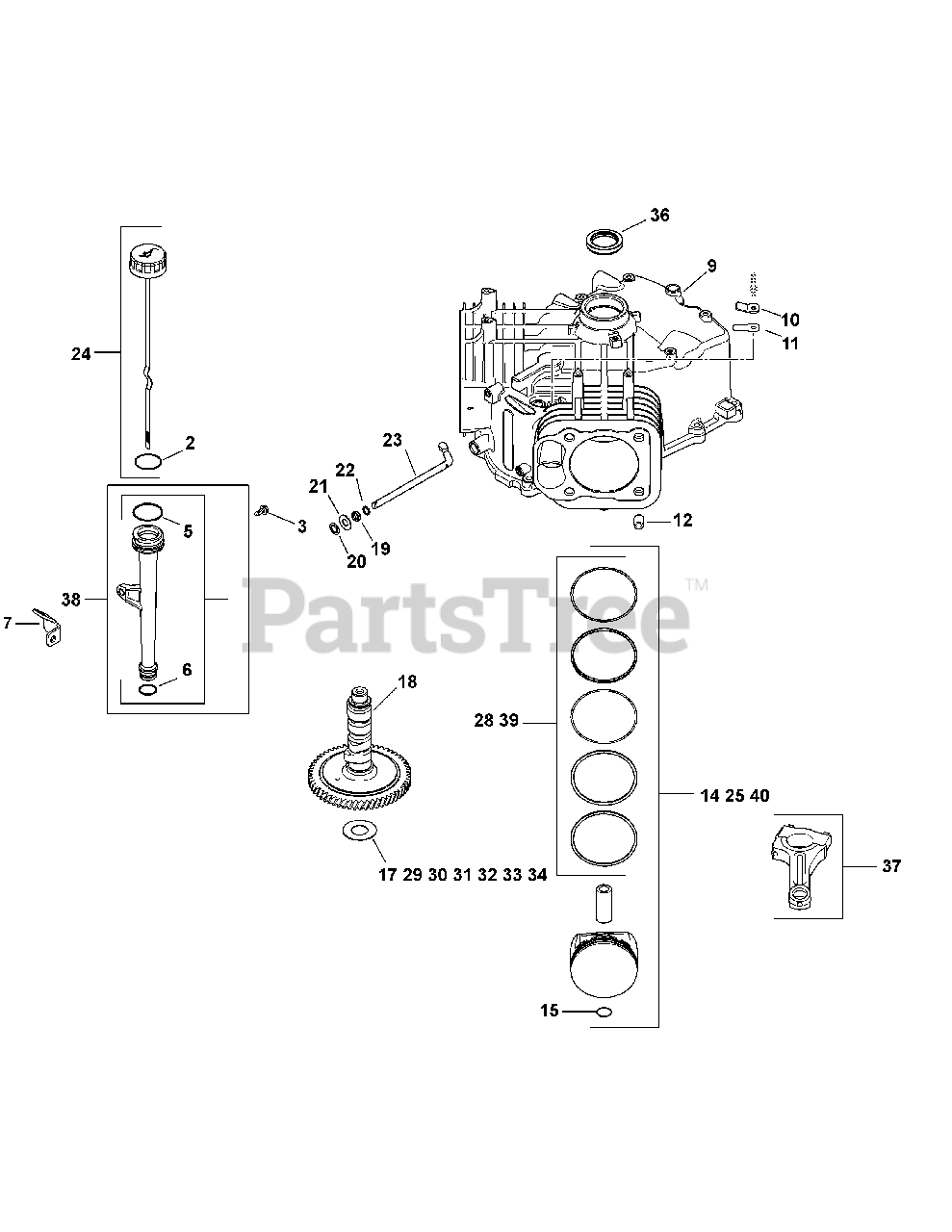

Kohler SV715-0002 Crankcase Parts Diagram

  • Title

2

Cub Cadet KH-25-153-02-S

O-ring

Note: (Inc. Ref No. 2)

$2.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-545013-S

Flg. Thd. Frm. Screw, M5 X 0.8 X 13

$2.49

$

In Stock, Qty 7

0

5

Cub Cadet KH-12-153-02-S

O-ring, Upper Fill Tube

$2.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-12-153-01-S

O-ring, Lower Fill Tube

$4.99

$

In Stock, Qty 16

0

7

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-24-018-04-S

Breather Reed Retainer

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-402-02

Breather Reed

$

$

Not available

12

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet KH-25-874-01-S

Piston Kit w/ Ring Set
(Superseded to KH-25-874-13-S)

Note: (Inc. Ref No. 15)

$270.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$2.99

$

In Stock, Qty 7

0

17

Cub Cadet KH-12-422-07-S

Camshaft Shim (White .028")

$4.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-32-012-01-S

Camshaft Kit

Note: (Inc. Ref No. KH-25-357-14-S)

$136.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 6

0

20

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-M-931010-S

Flat Washer, 9 Mm

$2.49

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-468-15-S

Flat Washer, 11.32

$2.49

$

In Stock, Qty 5

0

23

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-24-038-04-S

Dipstick Assembly

Note: (Inc. Ref No. 2)

$19.99

$

In Stock, only 1 left!

0

25

Cub Cadet KH-25-874-03-S

Piston Kit w/ Ring Set (0.25) 83mm
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-24-108-16-S

Ring Set (.25)

$103.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-12-422-08-S

Camshaft Shim (Blue .03")

Note: as required

$2.49

$

In Stock, only 2 left!

0

29

Cub Cadet KH-12-422-09-S

Camshaft Shim (Red .032")

Note: as required

$2.49

$

In Stock, only 1 left!

0

29

Cub Cadet KH-12-422-10-S

Camshaft Shim (Yellow .034")

Note: as required

$2.49

$

In Stock, only 1 left!

0

29

Cub Cadet KH-12-422-11-S

Camshaft Shim (Green .036")

Note: as required

$2.49

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-12-422-12-S

Camshaft Shim (Gray .038")

Note: as required

$2.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-12-422-13-S

Camshaft Shim (Black .04")

Note: as required

$2.99

$

Usually ships in 2-5 days

0

36

Cub Cadet KH-24-032-19-S

Oil Seal (Helix Lip)

$7.49

$

In Stock, Qty 20+

0

37

Cub Cadet KH-24-067-24-S

Connecting Rod (Std)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

38

Cub Cadet KH-25-123-07-S

Tube Assembly
(Superseded to KH-32-755-04-S)

Note: (Inc. Ref No. 4-6)

$

$

Not available

39

Cub Cadet KH-24-108-14-S

Ring Set (Std)

$

$

Not available

40

Cub Cadet KH-24-874-27-S

Ring Set
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-357-14-S

Camshaft Lubricant

Note: Not Shown

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-25-113-39-S

Clear Laminate Decal
(Superseded to KH-25-113-79-S)

Note: Not Shown

$2.49

$

In Stock, only 4 left!

0

Cub Cadet KH-32-113-60-S

Fill Check Decal

Note: Not Shown

$

$

Not available

Cub Cadet KH-32-113-12-S

Decal, 22 HP
(Superseded to KH-32-113-76-S)

Note: Not Shown

$

$

Not available

Cub Cadet KH-32-522-03

SV710-740 Shortblock
(Superseded to KH-32-522-07)

Note: Not Shown

$

$

Not available

Cub Cadet KH-32-755-01-S

Gasket Set
(Superseded to KH-32-755-09-S)

Note: Not Shown

$103.99

$

Usually ships in 2-5 days

0
