LTX 1046 VT (13VR91AT010) - Cub Cadet 46" Lawn Tractor (2009) Mowing Deck 46 Inch Parts Diagram

46" Lawn Tractor

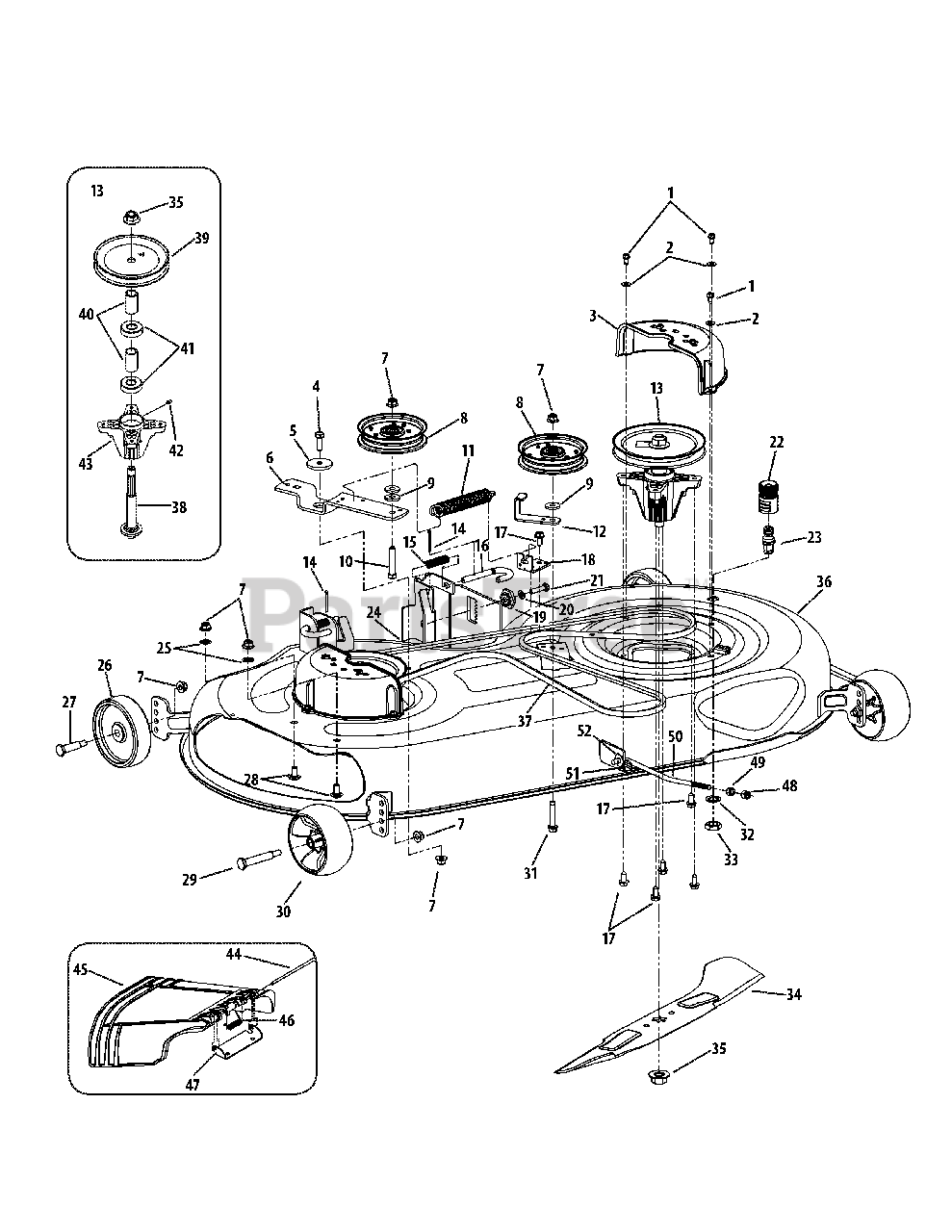

Mowing Deck 46 Inch Parts Diagram

  • Title

1

Cub Cadet 710-0599

Hex Washer Screw, 1.4-20 x .500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 936-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 731-06496

Belt Cover

$23.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0514

Hex Screw, 3.8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

6

Cub Cadet 783-05946

Idler Bracket

$38.99

$

In Stock, Qty 11

0

7

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 710-3144

Hex Screw, 3.8-16 x 2.00

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 732-0459C

Extension Spring

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 783-06368-0637

Belt Guard Bracket
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

13

Cub Cadet 918-04636

Spindle Assembly
(Superseded to 918-04865A)

$147.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 914-0470

Cotter Pin, 1.8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 932-0306A

Compression Spring, .531 x 1.75

$8.49

$

In Stock, only 4 left!

0

16

Cub Cadet 747-1116

Deck Handle Rod

$12.99

$

In Stock, Qty 8

0

17

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 783-06243-0637

Deck Engage Bracket

$10.99

$

In Stock, only 2 left!

0

19

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 19

0

20

Cub Cadet 936-0119

Lock Washer, 5.16

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0528

Hex Screw, 5.16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

23

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

24

Cub Cadet 683-0254B-4021

Deck Hanger Bracket Assembly

$49.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0229

Push Nut, 3.8

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

27

Cub Cadet 938-0373

Shoulder Bolt, 3.8-16 x .496 x 1.525

$9.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-3178

Carriage Bolt, 3.8-16 x .75

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 938-3056

Shoulder Bolt, 3.8-16 x .496 x 2.50

$9.49

$

In Stock, Qty 20+

0

30

Cub Cadet 734-04155

Deck Wheel

$20.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-1008

Hex Washer Screw, 3.8-16 x 1.875

$5.49

$

In Stock, Qty 9

0

32

Cub Cadet 736-0225

Lock Washer, 5.8

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

34

Cub Cadet 942-04244

2-in-1 Blade
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0417A

Flange Nut, 5.8-18

$6.99

$

In Stock, Qty 20+

0

36

Cub Cadet 683-04468-4021

Deck Assembly
(Superseded to 983-04468B-4021)

$964.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 954-04219

V-Belt

$50.99

$

In Stock, Qty 20+

0

38

Cub Cadet 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 14

0

39

Cub Cadet 756-04356

Deck Pulley

$37.99

$

In Stock, only 1 left!

0

40

Cub Cadet 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

41

Cub Cadet 941-0919

Ball Bearing, .787 x 1.85 x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

42

Cub Cadet 937-3000

Lube Fitting

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 619-04199

Spindle Housing
(Superseded to 719-07293-M)

$44.99

$

In Stock, Qty 6

0

44

Cub Cadet 711-04847A

Hinge Pan, .3125 x 7.96
(Superseded to 711-04847B)

$8.99

$

In Stock, Qty 8

0

45

Cub Cadet 631-04288

Chute Assembly
(Superseded to 631-05191A)

Note: (Incl. 44-47)

$56.99

$

In Stock, Qty 20+

0

46

Cub Cadet 732-04372

Torsion Spring, .44 x 2.0

$10.99

$

In Stock, Qty 9

0

47

Cub Cadet 783-06074

Chute Bracket
(Superseded to 783-06074A)

$32.99

$

In Stock, only 1 left!

0

48

Cub Cadet 712-3083

Hex Lock Nut, 1.2-13

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 912-0206

Hex Nut, 1.2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 747-04944A

Deck Lift Rod
(Superseded to 747-04944B)

$24.99

$

In Stock, Qty 6

0

51

Cub Cadet 753-04070

Lynch Pin, .1875

$9.99

$

In Stock, Qty 20+

0

52

Cub Cadet 936-0179

Flat Washer, 1.2 x 1.25 x .10
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0
