LTX 1046 KW (13WF93AT210) - Cub Cadet 46" Lawn Tractor (2014) Hydrostatic Transmission (Tuff-Torq 918-05010) Parts Diagram

46" Lawn Tractor

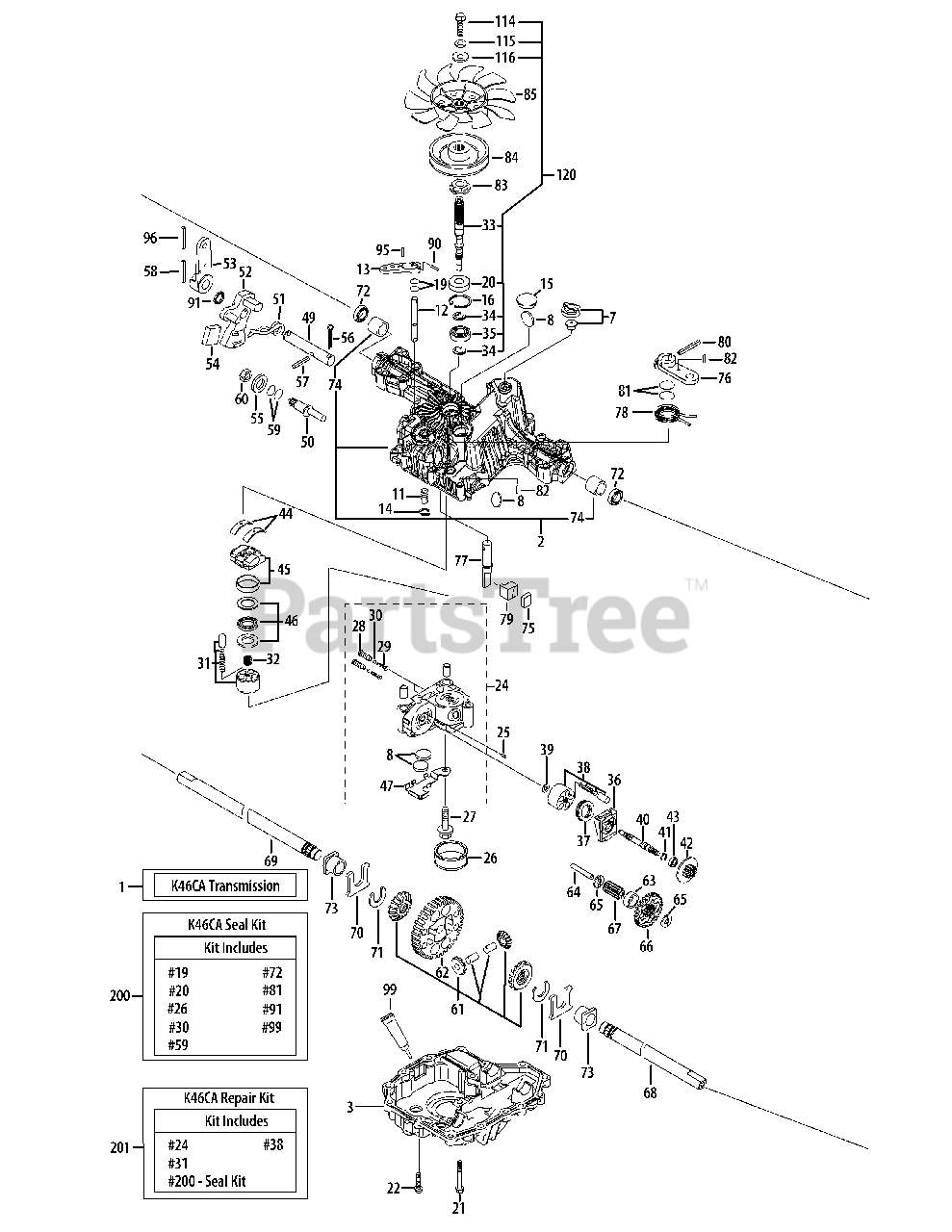

Hydrostatic Transmission (Tuff-Torq 918-05010) Parts Diagram

  • Title

1

Cub Cadet 918-05010

K46CA Transaxle
(Superseded to 753-10424)

$1361.99

$

Usually ships in 3-6 days

0

2

Cub Cadet TT-1A646084431

Kit, Upper Case

$210.99

$

Usually ships in 3-6 days

0

3

Cub Cadet TT-1A646084181

Lower Case

$

$

Not available

7

Cub Cadet TT-168T2024250

Vent Valve 15

$28.99

$

In Stock, only 1 left!

0

8

Cub Cadet TT-19216324360

Magnet

$3.49

$

In Stock, only 2 left!

0

11

Cub Cadet TT-19215427281

Spring 25

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet TT-1A646029510

Bypass Shaft A

$26.99

$

Usually ships in 3-6 days

0

13

Cub Cadet TT-1A632029520

Bypass Lever

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet TT-19216829570

Snap Ring 10
(Superseded to TT-22242000100)

$0.99

$

Usually ships in 3-6 days

0

15

Cub Cadet TT-168T2036300

Sealing Cap 30
(Superseded to TT-187T0136300)

$7.49

$

In Stock, only 2 left!

0

16

Cub Cadet TT-22252000350

Snap Ring C 35

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet TT-24311240100

O-Ring 1A P10A

$2.99

$

Usually ships in 3-6 days

0

20

Cub Cadet TT-24421153507

Seal TC 153507
(Superseded to TT-187T0134380)

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet TT-26476080552

Tapping Screw 8 x 55

$1.99

$

Usually ships in 3-6 days

0

22

Cub Cadet TT-26476080302

Tapping Screw 8 x 30

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet TT-1A646099070

Kit, Center Case C

$291.99

$

Usually ships in 3-6 days

0

25

Cub Cadet TT-19216824760

Pin 3 x 9.8

$2.99

$

Usually ships in 3-6 days

0

26

Cub Cadet TT-168T2025220

Filter 105
(Superseded to TT-187Q1625221)

$16.99

$

In Stock, Qty 14

0

27

Cub Cadet TT-168T2099990

Bolt 10 x 75

$2.49

$

Usually ships in 3-6 days

0

28

Cub Cadet TT-1A646024800

IDS Valve 1.2

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet TT-1A646024761

IDS Spring

$2.49

$

Usually ships in 3-6 days

0

30

Cub Cadet TT-1A646024790

IDS Filter 300

$

$

Not available

31

Cub Cadet TT-168T2025090

Kit, Cylinder Block (Pump)

$123.99

$

Usually ships in 3-6 days

0

32

Cub Cadet TT-1A646025200

Spring

$1.99

$

Usually ships in 3-6 days

0

33

Cub Cadet TT-1A646025230

Pump Shaft

$35.99

$

In Stock, only 3 left!

0

34

Cub Cadet TT-22272-000120

E-Ring 15
(Superseded to TT-22272000120)

$2.99

$

In Stock, Qty 13

0

35

Cub Cadet TT-24101062020

Bearing 6202C3
(Superseded to TT-1A646034790)

$9.49

$

Usually ships in 3-6 days

0

36

Cub Cadet TT-19216824210

Motor Housing

$13.99

$

In Stock, only 1 left!

0

37

Cub Cadet TT-1A646034750

Thrust Bearing 51106

$34.99

$

Usually ships in 3-6 days

0

38

Cub Cadet TT-168T2025080

Kit, Cylinder Block

$169.99

$

Usually ships in 3-6 days

0

39

Cub Cadet TT-19216825230

Washer 12 x 24 x 1

$2.99

$

Usually ships in 3-6 days

0

40

Cub Cadet TT-1A646025271

Motor Shaft

$27.99

$

Usually ships in 3-6 days

0

41

Cub Cadet TT-19215425310

Snap Ring C15

$0.99

$

Usually ships in 3-6 days

0

42

Cub Cadet TT-1A646025400

Brake Disc/Motor Gear (11T)

$14.99

$

Usually ships in 3-6 days

0

43

Cub Cadet TT-168T2025280

Bearing 6202 RSR C3
(Superseded to TT-1A646034760)

$7.49

$

In Stock, only 1 left!

0

44

Cub Cadet TT-187T0027060

Thrust, Plastic

$2.99

$

Usually ships in 3-6 days

0

45

Cub Cadet TT-168T2084530

Swash Plate Assembly
(Superseded to TT-168T2084570)

$31.99

$

Usually ships in 3-6 days

0

46

Cub Cadet TT-19216399000

Kit, Thrust Bearing (Pump)

$47.99

$

Usually ships in 3-6 days

0

47

Cub Cadet TT-1A646029010

Magnet Holder

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet TT-1A646029911

Control Shaft

$17.99

$

Usually ships in 3-6 days

0

50

Cub Cadet TT-168T2029920

Fulcrum

$24.99

$

Usually ships in 3-6 days

0

51

Cub Cadet TT-168T2029800

Torsion Spring, Standard

$13.99

$

Usually ships in 3-6 days

0

52

Cub Cadet TT-1A646029740

Control Arm A

$44.99

$

In Stock, only 1 left!

0

53

Cub Cadet TT-1A646029400

Control Lever F

$12.99

$

Usually ships in 3-6 days

0

54

Cub Cadet TT-168T2029360

Jerky Plate

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet TT-22137120000

Washer 12

$2.49

$

Usually ships in 3-6 days

0

56

Cub Cadet TT-1A646029940

Cotter Pin 1/8" x 3/4"

$1.99

$

Usually ships in 3-6 days

0

57

Cub Cadet TT-22351060036

Spring Pin 6 x 36

$0.99

$

Usually ships in 3-6 days

0

58

Cub Cadet TT-22351060040

Roll Pin 6 x 40

$2.99

$

Usually ships in 3-6 days

0

59

Cub Cadet TT-24311000140

O-Ring P14

$2.49

$

Usually ships in 3-6 days

0

60

Cub Cadet TT-26776120002

Nut 12

$2.49

$

Usually ships in 3-6 days

0

61

Cub Cadet TT-1A646031570

Diff Gear Kit

$54.99

$

Usually ships in 3-6 days

0

62

Cub Cadet TT-1A646033520

Final Gear (54T)
(Superseded to TT-1A646033540)

$

$

Not available

63

Cub Cadet TT-1A646033250

Final Pinion Collar

$3.49

$

Usually ships in 3-6 days

0

64

Cub Cadet TT-1A646033410

Reduction Shaft

$11.99

$

Usually ships in 3-6 days

0

65

Cub Cadet TT-19216833420

Washer 12 x 32 x 3.2

$1.99

$

In Stock, Qty 5

0

66

Cub Cadet TT-1A646033450

Reduction Gear (37T)

$18.99

$

Usually ships in 3-6 days

0

67

Cub Cadet TT-168T2033540

Final Pinion Gear (10T)
(Superseded to TT-1A646033531)

$19.99

$

Usually ships in 3-6 days

0

68

Cub Cadet TT-1A646034370

Axle Shaft, Left
(Superseded to TT-1A646034390)

$44.99

$

In Stock, only 1 left!

0

69

Cub Cadet TT-1A646034380

Axle Shaft, Right
(Superseded to TT-1A646034400)

$56.99

$

In Stock, Qty 7

0

70

Cub Cadet TT-19216334261

Thrust Washer

$9.49

$

Usually ships in 3-6 days

0

71

Cub Cadet TT-19216834270

Ring 17

$2.99

$

Usually ships in 3-6 days

0

72

Cub Cadet TT-19216334280

Seal 19 x 32 x 8
(Superseded to TT-187T0134280)

$11.99

$

In Stock, Qty 20+

0

73

Cub Cadet TT-19216834350

Bushing 19 x 25

$2.99

$

In Stock, Qty 20+

0

74

Cub Cadet TT-19216334240

Bushing 19.05
(Superseded to TT-1A646034500)

$3.99

$

In Stock, Qty 20+

0

75

Cub Cadet TT-1A646036121

Brake Shoe

$2.99

$

Usually ships in 3-6 days

0

76

Cub Cadet TT-1A646036160

Brake Lever

$7.49

$

Usually ships in 3-6 days

0

77

Cub Cadet TT-1A646036171

Brake Shaft

$37.99

$

Usually ships in 3-6 days

0

78

Cub Cadet TT-168T2036180

Brake Return Spring

$4.99

$

Usually ships in 3-6 days

0

79

Cub Cadet TT-1A646036200

Brake Actuator

$2.49

$

Usually ships in 3-6 days

0

80

Cub Cadet TT-22351050032

Spring Pin 5 x 32

$2.99

$

Usually ships in 3-6 days

0

81

Cub Cadet TT-24311000120

O-Ring 1A P12

$2.99

$

In Stock, Qty 7

0

82

Cub Cadet TT-22351040016

Spring Pin 4 x 16

$2.49

$

In Stock, only 1 left!

0

83

Cub Cadet TT-1A646025300

Spline Collar

$2.99

$

In Stock, Qty 6

0

84

Cub Cadet TT-1A646025760

Pulley B

$23.99

$

In Stock, only 1 left!

0

85

Cub Cadet TT-1A646083070

Fan, Black

$22.99

$

In Stock, Qty 20+

0

90

Cub Cadet TT-22351030020

Spring Pin 3.0A x 20

$2.99

$

Usually ships in 3-6 days

0

91

Cub Cadet TT-1A646024440

Oil Seal 16 x 22 x 03

$3.99

$

In Stock, only 3 left!

0

95

Cub Cadet TT-22351030016

Spring Pin 3.0A x 16

$2.99

$

Usually ships in 3-6 days

0

96

Cub Cadet TT-22351035040

Roll Pin 3.5 x 40

$2.99

$

Usually ships in 3-6 days

0

99

Cub Cadet N/A

Sealant

$

$

Currently unavailable

114

Cub Cadet TT-1A646083090

Bolt

$5.49

$

In Stock, Qty 7

0

115

Cub Cadet TT-1A646083100

Lock Washer

$2.99

$

Usually ships in 3-6 days

0

116

Cub Cadet TT-1A646083110

Washer

$2.99

$

Usually ships in 3-6 days

0

120

Cub Cadet TT-1A646099980

Pump Shaft/Bearing Kit

$54.99

$

Usually ships in 3-6 days

0

200

Cub Cadet TT-1A646099140

Kit,Seal
(Superseded to TT-1A646098240)

Note: Incl. 19, 20, 26, 30, 59, 72,81, 91 & 99

$111.99

$

In Stock, only 3 left!

0

201

Cub Cadet TT-1A646099600

Repair Kit
(Superseded to TT-1A646098450)

Note: Incl. 24, 31, 38 & 200

$536.99

$

Usually ships in 3-6 days

0
