LTX 1046 KW (13WF93AT010) - Cub Cadet 46" Lawn Tractor (2014) Kawasaki FR651-S08 Air Filter & Muffler Parts Diagram

46" Lawn Tractor

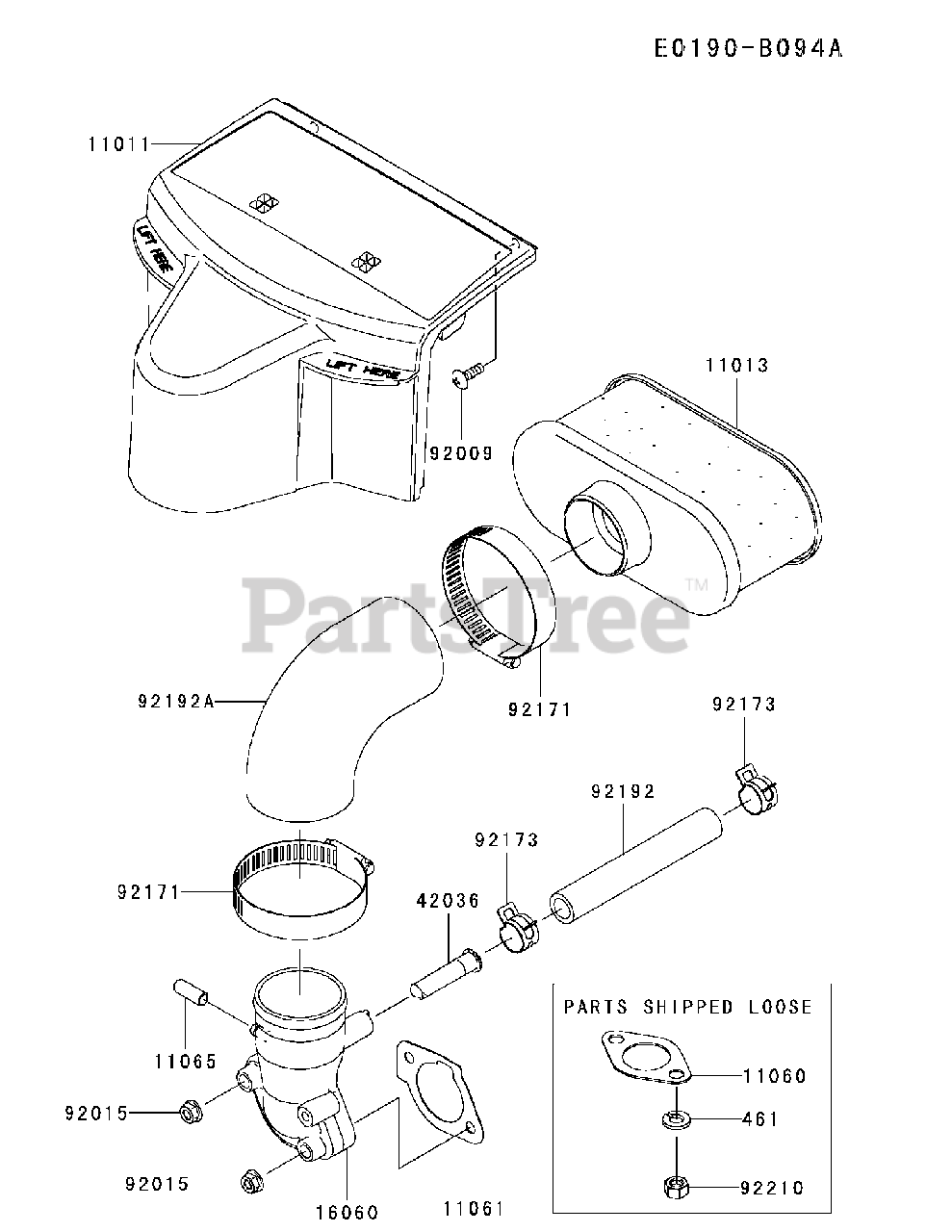

Kawasaki FR651-S08 Air Filter & Muffler Parts Diagram

  • Title

11011

Cub Cadet KM-11011-7065

Air Filter Case
(Superseded to KM-11011-0820)

$33.99

$

In Stock, Qty 15

0

11013

Cub Cadet KM-99999-0384

Air Filter Element
(Superseded to KM-11013-0752)

$17.99

$

In Stock, Qty 20+

0

11060

Cub Cadet KM-11060-7016

Muffler Gasket

$2.49

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7086

Carburetor/Intake Pipe Gasket

$1.99

$

In Stock, only 4 left!

0

11065

Cub Cadet KM-11065-7037

Cap

$0.99

$

In Stock, Qty 5

0

16060

Cub Cadet KM-16060-7038

Intake Pipe

$42.99

$

Usually ships in 2-5 days

0

42036

Cub Cadet KM-42036-7017

Breather Sleeve
(Superseded to KM-42036-0781)

$1.49

$

In Stock, Qty 20+

0

92009

Cub Cadet KM-92009-2303

Screw

$2.99

$

In Stock, Qty 7

0

92015

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, only 2 left!

0

92171

Cub Cadet KM-92173-1001

Clamp

$3.99

$

In Stock, Qty 20+

0

92173

Cub Cadet KM-92173-7003

Clamp

$2.49

$

In Stock, Qty 15

0

92192

Cub Cadet KM-92192-7146

Tube, 12.6 x 18.6 x 118

$1.99

$

In Stock, only 2 left!

0

92192A

Cub Cadet KM-99999-7082

Air Filter Tube
(Superseded to KM-99999-0534)

$38.99

$

In Stock, only 1 left!

0

92210

Cub Cadet KM-92210-7027

Nut, M8

$1.99

$

In Stock, only 2 left!

0

461

Cub Cadet KM-461DA0800

Spring Washer, 8mm

$0.99

$

In Stock, Qty 20+

0
