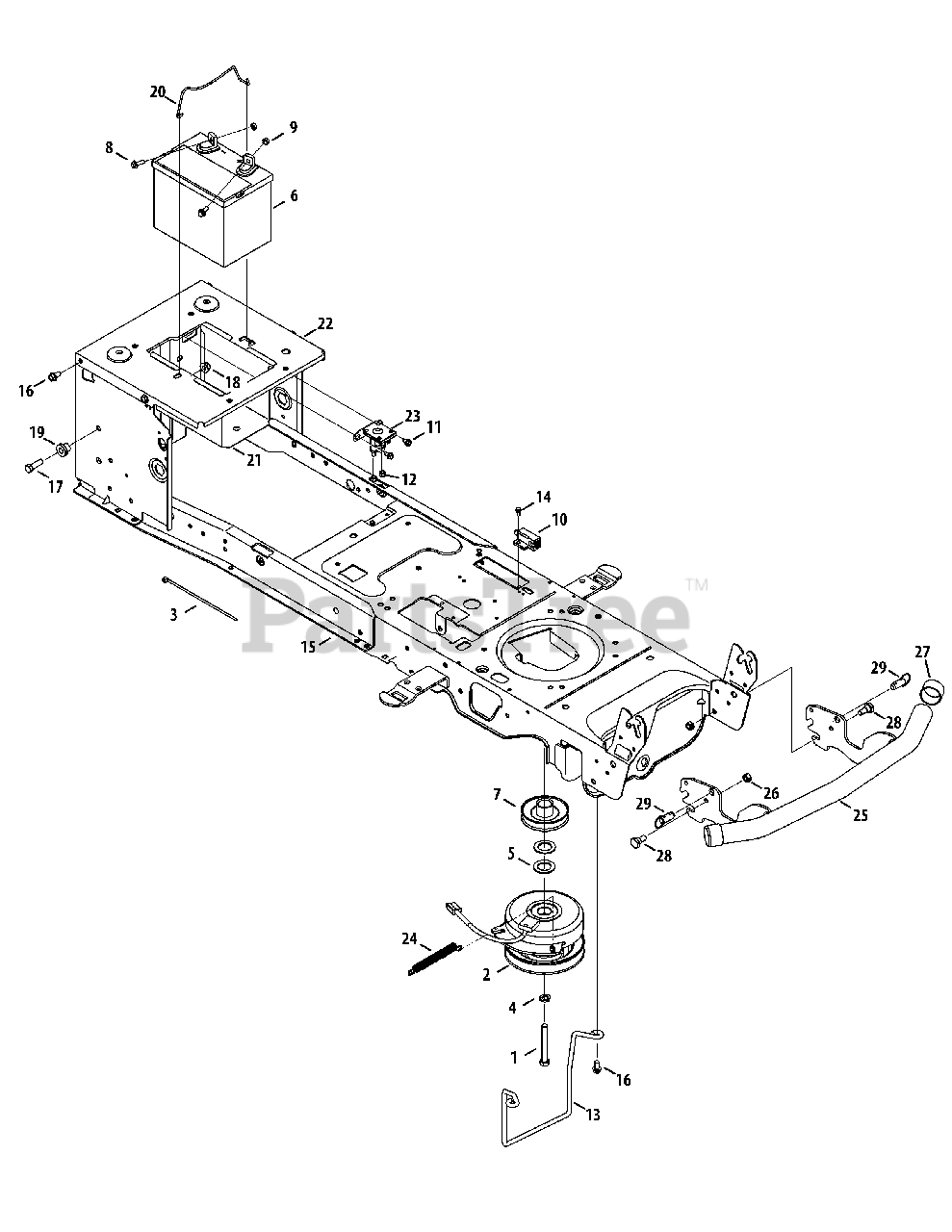

LTX 1046 KW (13AF93AT210) - Cub Cadet 46" Lawn Tractor (2012) Frame, Electrical & PTO Parts Diagram

46" Lawn Tractor

Frame, Electrical & PTO Parts Diagram

  • Title

1

Cub Cadet 710-04379A

Hex Screw, 7/16-20, 3.50, Gr5, Lock

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 917-04552

Clutch, Electric PTO

$531.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 725-0157

Cable, Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet 936-0171

Washer, Lock, 7/16 , Regular Duty
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 736-0277

Washer, Flat, 1.031 X1.620 X.095

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 925-1707D

Battery

$

$

Not available

7

Cub Cadet 756-0978B

Engine Pulley, Electric PTO

$66.99

$

In Stock, Qty 15

0

8

Cub Cadet 710-04666

Hex Flange Screw, 1/4-20, .75, Gr5

$6.99

$

In Stock, only 3 left!

0

9

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

10

Cub Cadet 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0653

Screw, Self-tapping, 1/4-20, 0.375

$4.49

$

In Stock, Qty 13

0

12

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 747-05171A

Rod, Keeper

$32.99

$

In Stock, Qty 8

0

14

Cub Cadet 738-04237A

Screw, Shoulder, #10-32, .50

$6.49

$

In Stock, Qty 7

0

15

Cub Cadet 683-04469B-0637

Frame Assembly, Lower
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-05097

Hex Screw, 3/8-16, 1.50, Gr2

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-04058

Spacer, Shoulder, .38 X 1.0 X .70

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 747-04121A

Rod, Battery

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet 783-0349

Tray, Battery

Variations

Cub Cadet 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 783-06089-0637

Bracket, Frame, Seat

$57.99

$

In Stock, only 1 left!

0

23

Cub Cadet 725-04439

Solenoid, 12V, 100 Amp, 4 term
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

24

Cub Cadet 932-0320

Spring, Extn, .38 Dia X 3.25

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 683-04219B

Bumper Assembly, Universal

Variations

Cub Cadet 683-04219B-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

Cub Cadet 683-04219B-0606

BMPR ASM-UNVERSL - MAJESTIC ORANGE (0606)

$61.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 912-3000

Nut, Hex Lock, 3/8-16, GrB
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

27

Cub Cadet 731-05674

Cap, Bumper

$5.49

$

In Stock, Qty 20+

0

28

Cub Cadet 738-0143

Bolt, Shoulder, .496 x .336, 3/8-16

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 714-04061

Pin, Quick Release, 1/2 Dia x .50

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 925-04093

Harness Assembly, Main

Note: (Not shown)

$226.99

$

Usually ships in 3-6 days

0
