LTX 1046 KW (13AF93AT010) - Cub Cadet 46" Lawn Tractor (2013) Steering Parts Diagram

46" Lawn Tractor

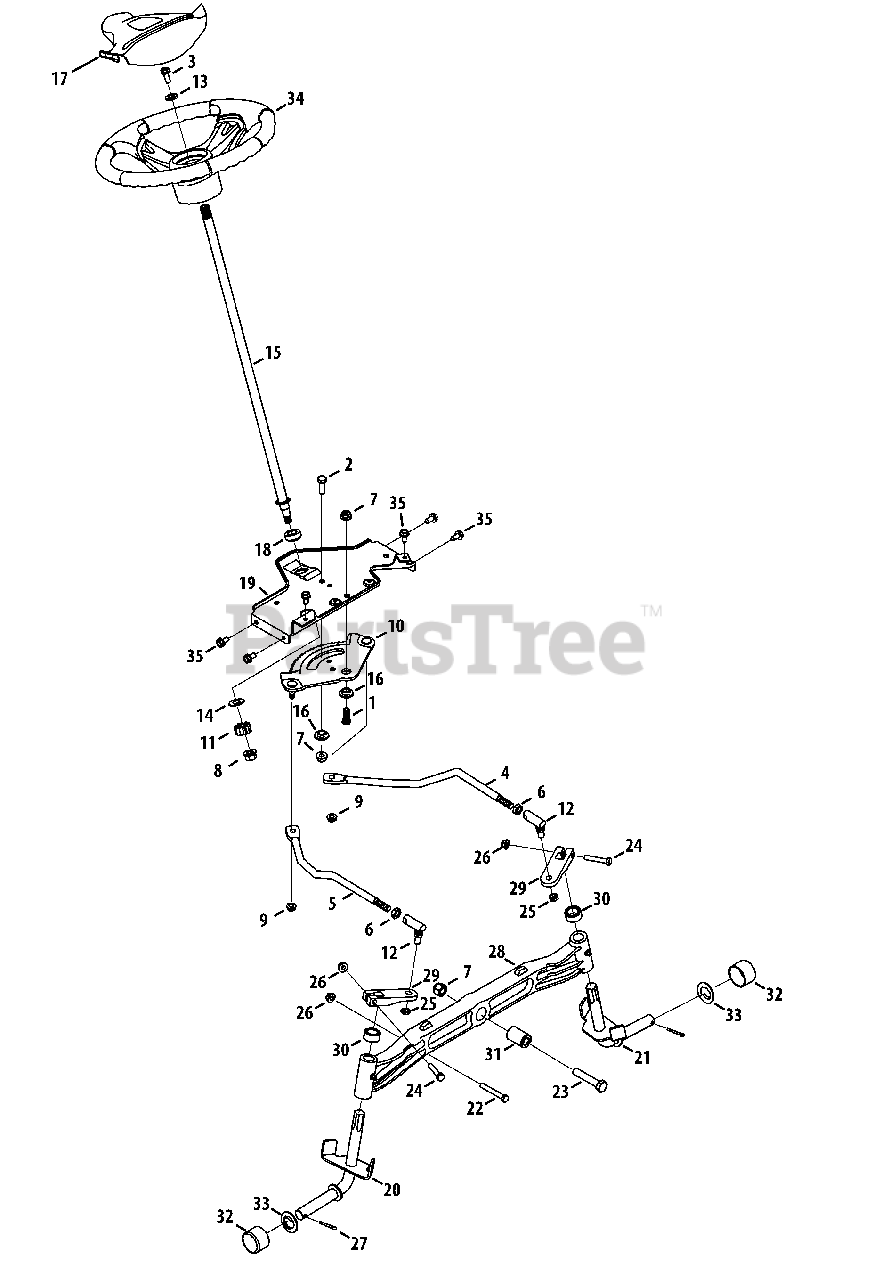

Steering Parts Diagram

  • Title

1

Cub Cadet 710-04095

Hex Screw, 3/8-16, 1.00, Gr5, Spec

$5.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0650

Hex Screw, 5/16-18, .875, Gr5, Lock

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 711-04998

Link, Drag LH

$27.99

$

In Stock, only 1 left!

0

5

Cub Cadet 711-04999

Link, Drag RH

$27.99

$

In Stock, only 1 left!

0

6

Cub Cadet 912-0240

Nut, Jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0459

Nut, Flange Lock, 7/16-20, Grb, Lock

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 717-1550F

Gear, Steering, 11/90 Ratio

$70.99

$

In Stock, Qty 20+

0

11

Cub Cadet 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 923-0448A

Ball Joint, 7/16-20, Lock

$24.99

$

In Stock, Qty 20+

0

13

Cub Cadet 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

Cub Cadet 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-04262

Shaft, Steering, .625 OD x 25, Cub

$66.99

$

In Stock, only 2 left!

0

16

Cub Cadet 738-04363

Spacer, Shoulder, .385x 1.25 x .3025

$5.99

$

In Stock, only 3 left!

0

17

Cub Cadet 731-04532B

Cover, Steering Wheel, Cub Cadet

$24.99

$

In Stock, Qty 12

0

18

Cub Cadet 741-04237B

Bearing, Flange, Hex 5/8 Pm

$6.99

$

In Stock, Qty 15

0

19

Cub Cadet 783-06043-0637

Bracket, Support, Steering

$

$

Not available

20

Cub Cadet 638-04022-0637

Axle Ass’y, RH .750 Dia.

$

$

Not available

21

Cub Cadet 638-04028-0637

Axle Ass’y, LH .750 Dia.

$

$

Not available

22

Cub Cadet 710-0395

Hex Screw, 5/16-18, 2.25, Gr5, Std

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 710-0859

Hex Screw, 3/8-16, 2.50, Gr5, Std

$6.99

$

In Stock, Qty 17

0

24

Cub Cadet 710-3180

Hex Screw, 5/16-18, 1.75, Gr5, Std

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet 912-0214

Nut, Hex Lock, 3/8-24, Grb
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

26

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 719-04413A

Axle, Pivot Bar, Cast

$241.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 748-04278-0637

Steering, Block
(Superseded to 748-04278)

$21.99

$

In Stock, only 1 left!

0

30

Cub Cadet 748-04068

Spacer, .71 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 750-05280

Spacer, .385 x 1.00 x 1.5075

$11.99

$

In Stock, Qty 10

0

32

Cub Cadet 731-08049

Cap, Bumper
(Superseded to 731-08049A)

$

$

Not available

33

Cub Cadet 736-04228A

Washer, Flat, .350 x 1.559 x .062
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 631-04008A

Wheel, Steering, 3 Spoke, Softgrip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

35

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0
