LTX 1046 KW (13AF93AT010) - Cub Cadet 46" Lawn Tractor (2013) Mower Deck 46-Inch Parts Diagram

46" Lawn Tractor

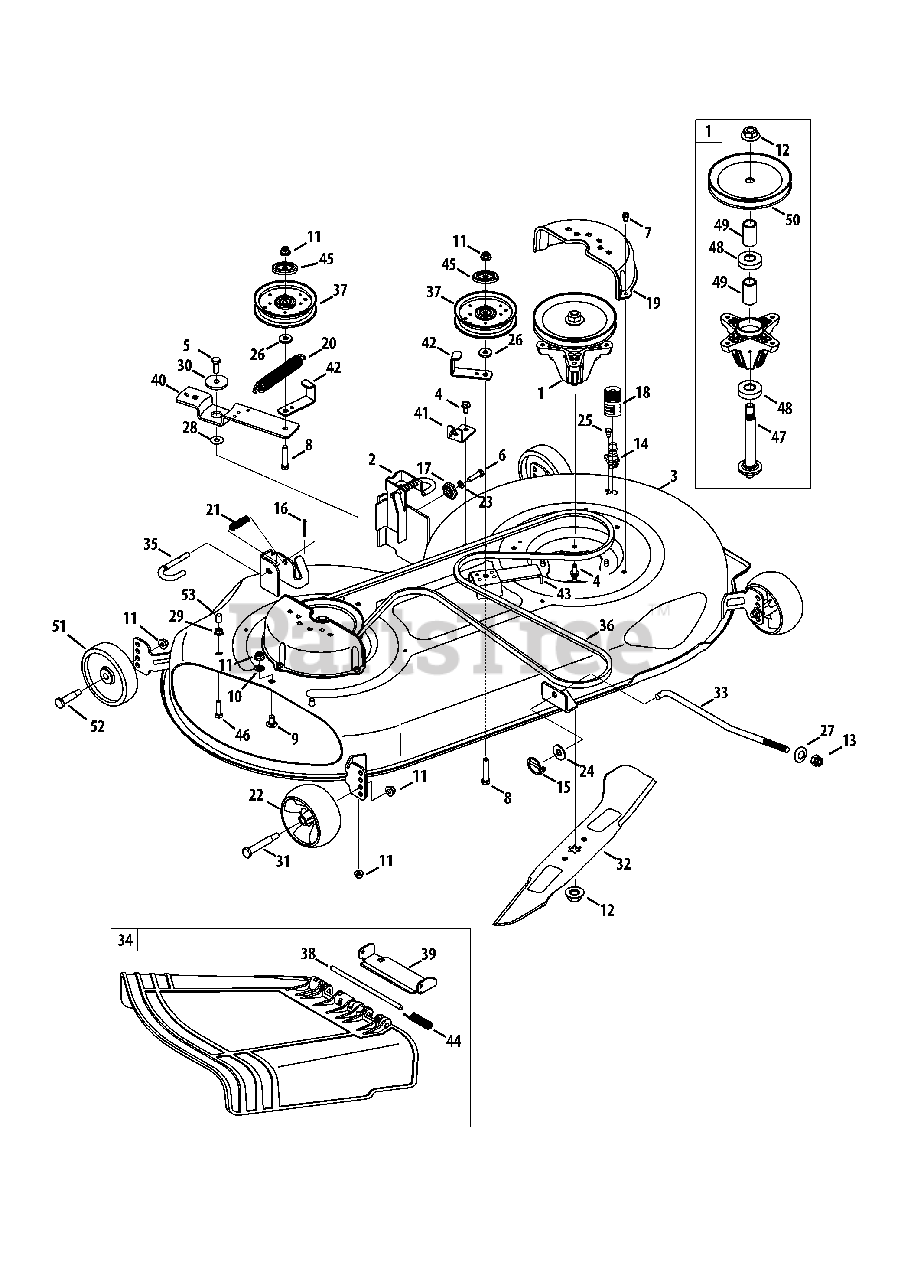

Mower Deck 46-Inch Parts Diagram

  • Title

1

Cub Cadet 918-04865A

Spindle Assembly, Pulley 6.93 Dia.

$147.99

$

In Stock, only 2 left!

0

2

Cub Cadet 683-0254B-4021

Bracket Assembly, Deck, Hanger LH

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 983-04468B-4021

Deck, Offset, 46"

$964.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 9

0

9

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04243

Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 753-04070

Pin, Lynch, .1875

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 914-0470

Pin, Cotter, 1/8 X 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 917-04074

Gear, Deck, Adj

$13.99

$

In Stock, Qty 19

0

18

Cub Cadet 921-04041

Adapter, Water

$23.99

$

In Stock, Qty 20+

0

19

Cub Cadet 731-06496

Cover, Belt, Universal

$23.99

$

In Stock, Qty 20+

0

20

Cub Cadet 732-0459C

Spring, Extension, .94 Dia. X 6.74

$18.99

$

In Stock, only 1 left!

0

21

Cub Cadet 732-04652

Spring, Compression, .535 OD X 1.75

$6.99

$

In Stock, only 2 left!

0

22

Cub Cadet 734-04155

Wheel, Deck, 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

23

Cub Cadet 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 936-0179

Washer, Flat, .531 X 1.25 X .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 7

0

26

Cub Cadet 736-0262

Washer, Flat, .385 X .870 X .092

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0317

Washer, Bell, .63 X 1.25 X .18

$7.99

$

In Stock, Qty 20+

0

28

Cub Cadet 936-0344

Washer, Flat, .385 X 1.0 X .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 738-04162C

Spacer, Shoulder, .8840 X .190

$13.99

$

In Stock, Qty 20+

0

31

Cub Cadet 938-3056

Bolt, Shoulder, .496 X 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

32

Cub Cadet 942-04244A

Blade, Cut, 23.25" 2-In-1, Cub
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

33

Cub Cadet 747-04944B

Rod, Lift, Deck, Front, 13.7

$24.99

$

In Stock, Qty 6

0

34

Cub Cadet 631-04288

Chute Assembly, 46" Deck
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

35

Cub Cadet 747-1116

Rod, Deck Release .375 Dia.

$12.99

$

In Stock, Qty 8

0

36

Cub Cadet 954-04219

Belt, V-Type, A Sec

$50.99

$

In Stock, Qty 20+

0

37

Cub Cadet 756-04129B

Pulley, Idler, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

38

Cub Cadet 711-04847B

Pin, Hinge, 7.96

$8.99

$

In Stock, Qty 8

0

39

Cub Cadet 783-06074A

Bracket, Chute

$32.99

$

In Stock, only 1 left!

0

40

Cub Cadet 783-05946

Bracket, Idler, Pivot

$38.99

$

In Stock, Qty 11

0

41

Cub Cadet 783-06243-0637

Bracket, Cable, Deck Engage

$10.99

$

In Stock, only 2 left!

0

42

Cub Cadet 783-06368A-0637

Bracket, Guard, Belt, 4.25 Pulley

$21.99

$

In Stock, Qty 20+

0

43

Cub Cadet 783-06643-0637

Bracket, Support, Stationary Idler

$9.49

$

In Stock, only 1 left!

0

44

Cub Cadet 732-04372

Spring, Torsion, .44 I.D. X 2.0

$10.99

$

In Stock, Qty 9

0

45

Cub Cadet 783-07236

Pulley Cap

$5.49

$

In Stock, only 4 left!

0

46

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

47

Cub Cadet 738-1186A

Shaft, Spindle, 6.11

$49.99

$

In Stock, Qty 14

0

48

Cub Cadet 941-0919A

Bearing, Ball, .787 X 1.85 x.551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

49

Cub Cadet 750-04936

Spacer, .792 X 1.060 X 1.860

$6.99

$

In Stock, Qty 20+

0

50

Cub Cadet 756-04356

Pulley, Deck, 6.93 Dia.

$37.99

$

In Stock, only 1 left!

0

51

Cub Cadet 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

52

Cub Cadet 938-0373

Bolt, Shoulder, .496 x 1.525, 3/8-16

$9.49

$

In Stock, Qty 20+

0

53

Cub Cadet 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0
