LTX 1046 (13YP91AT010) - Cub Cadet 46" Lawn Tractor (2011) Kohler SV720-3002 Head & Valve & Breather Parts Diagram

46" Lawn Tractor

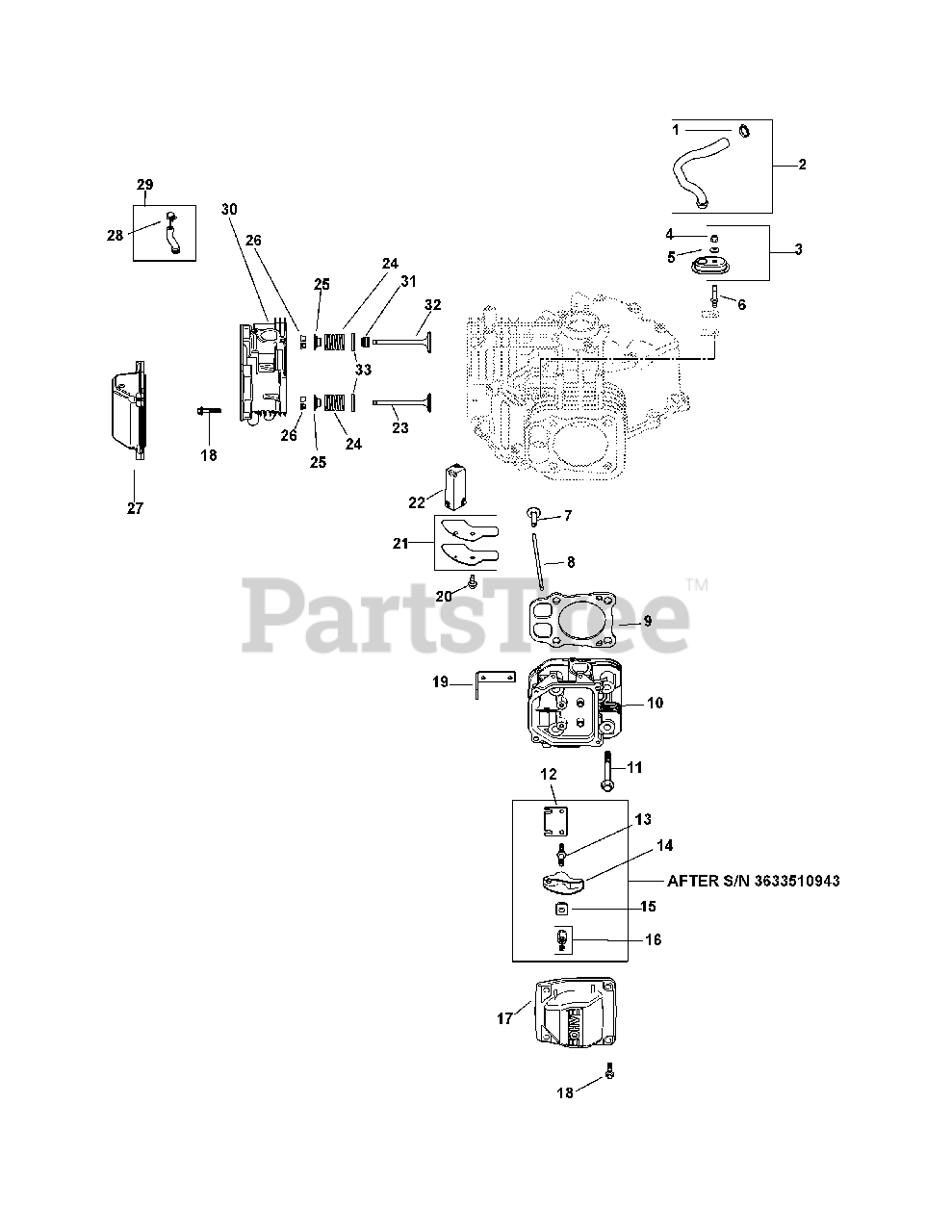

Kohler SV720-3002 Head & Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-25-237-14-S

Clamp, Hose 1/2''
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-32-326-06-S

Kit, Breather Hose

$18.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-32-081-02-S

Kit, Breather Housing

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-M-547050-S

Nut, Lock M5X.8

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-32-468-01-S

Washer, Sealing

$2.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-32-072-03-S

Stud, Breather Cover

$2.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-32-019-02-S

Tappet

$13.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-32-411-04-S

Rod, Push

Note: (After S/N 3633510943)

$4.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-32-841-01-S

Kit, Cylinder Head Gasket
(Superseded to KH-32-841-02-S)

$19.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-32-318-14-S

Kit, #2 Cylinder Head Assembly
(Superseded to KH-32-318-22-S)

Note: (Includes Exhaust Mounting Hardware) (After S/N 38101 00003)

$

$

Not available

11

Cub Cadet KH-62-086-08-S

Screw, Flg M10X1.5X90

$5.99

$

In Stock, Qty 5

0

12

Cub Cadet KH-32-146-09-S

Plate, Guide

$2.99

$

In Stock, only 3 left!

0

13

Cub Cadet KH-32-072-04-S

Stud, Rocker

Note: (After S/N 3633510943)

$4.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-32-186-03-S

Arm, Rocker

$6.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-25-599-01-S

Pivot, Rocker Arm

Note: (After S/N 3633510943)

$2.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-32-100-05-S

Hex Nut Assembly

Note: (After S/N 3633510943)

$3.99

$

In Stock, Qty 7

0

17

Cub Cadet KH-25-096-09-S

Cover, Rocker Stamped Steel

$14.99

$

In Stock, Qty 5

0

18

Cub Cadet KH-25-086-374-S

Screw, Pan Head
(Superseded to KH-25-086-660-S)

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-25-445-03-S

Strap, Lift

$

$

Not available

20

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6X1.0X16

$3.99

$

In Stock, Qty 13

0

21

Cub Cadet KH-32-096-04-S

Cover, Breather

$2.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-32-050-05-S

Filter, Breather

$2.99

$

In Stock, Qty 6

0

23

Cub Cadet KH-24-016-01

Valve, Exhaust (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 14

0

24

Cub Cadet KH-32-089-05-S

Spring, Valve
(Superseded to KH-25-089-17-S)

$2.49

$

In Stock, only 3 left!

0

25

Cub Cadet KH-25-173-28-S

Cap, Valve Spring

$8.49

$

In Stock, only 3 left!

0

26

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 8

0

27

Cub Cadet KH-25-096-10-S

Cover, Rocker Stamped Steel
(Superseded to KH-32-755-42-S)

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-25-237-01-S

Clamp, Hose

$3.49

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-32-326-07-S

Kit, Fuel Pump Hose

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet KH-32-318-13-S

Kit, #1 Cylinder Head Assembly
(Superseded to KH-32-755-39-S)

Note: (Includes Exhaust Mounting Hardware)(After S/N 3810100003)

$

$

Not available

31

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

32

Cub Cadet KH-24-017-01

Valve, Intake (Std)

$

$

Not available

33

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KH-32-755-03-S

Kit, Cylinder Head Hardware

Note: Not Shown(Services 1 Head. Quantities Listed A Re For Both Heads)

$69.99

$

In Stock, only 1 left!

0

Cub Cadet KH-32-050-05-S

Filter, Breather

Note: Not Shown

$2.99

$

In Stock, Qty 6

0
