LTX 1046 (13YP91AT010) - Cub Cadet 46" Lawn Tractor (2011) Kohler SV720-0002 Blower Housing, Baffles & Rectifier Parts Diagram

46" Lawn Tractor

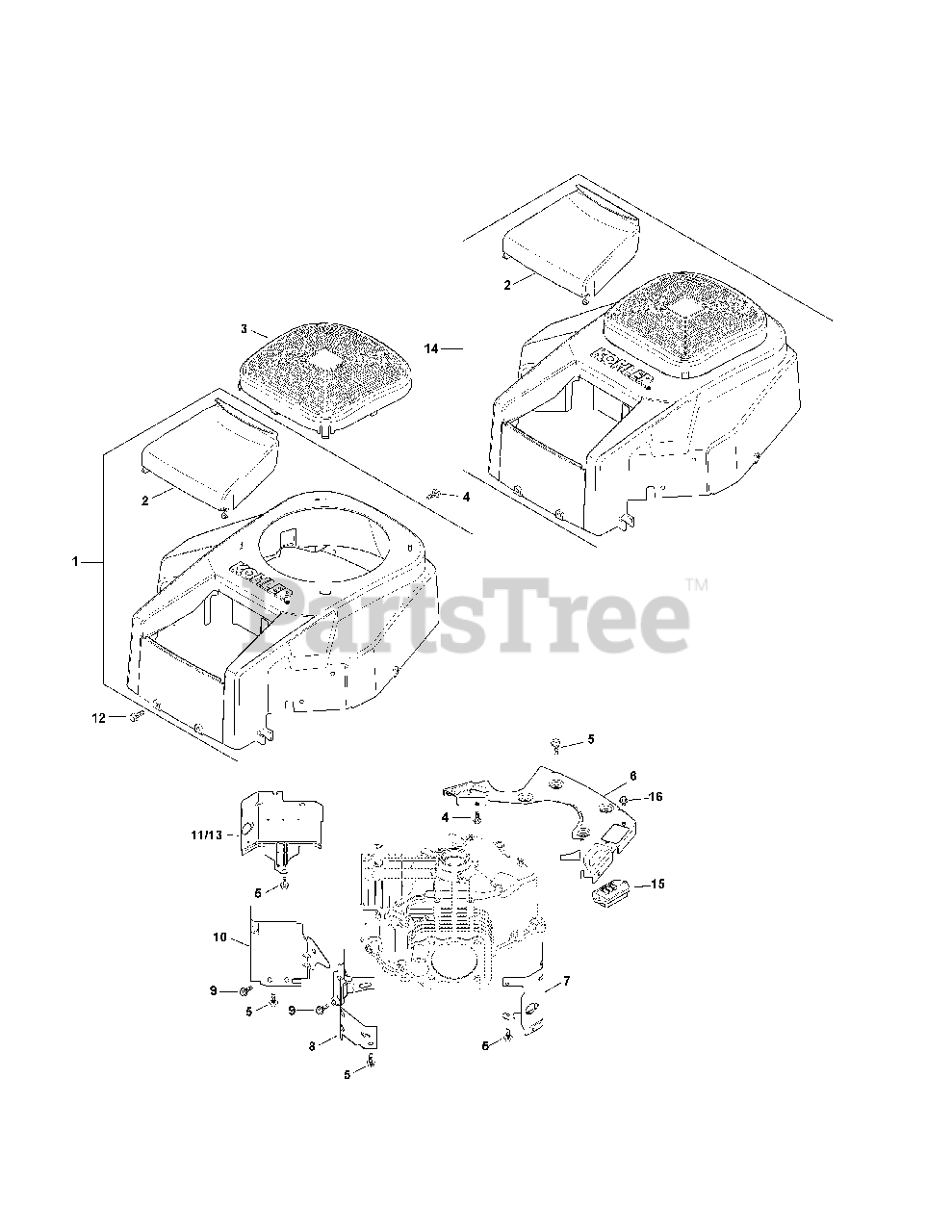

Kohler SV720-0002 Blower Housing, Baffles & Rectifier Parts Diagram

  • Title

1

Cub Cadet KH-32-027-03-S

Housing Blower Kit (Inc. 2 & KH-41-037-10-S)

$

$

Not available

2

Cub Cadet KH-32-096-08-S

Air Cleaner Cover

$7.49

$

In Stock, Qty 8

0

3

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

4

Cub Cadet KH-M-545016-S

Flg. Thd. Frm. Screw, M5 X 0.8 X 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-645016-S

Flg. Thd. Frm. Screw, M6 X 1.0 X 16

$3.99

$

In Stock, Qty 13

0

6

Cub Cadet KH-32-146-05-S

Backing Plate Kit

$

$

Not available

7

Cub Cadet KH-32-063-12-S

Cyl. Barrel Baffle - #2 Side

$19.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-32-063-02-S

Valley Baffle - #2 Side

$

$

Not available

9

Cub Cadet KH-M-0545010

Flg. Thd. Frm. Screw, M5 X .8 X 10

$

$

Not available

10

Cub Cadet KH-32-063-03-S

Valley Baffle - #1 Side
(Superseded to KH-24-063-93-S)

$

$

Not available

11

Cub Cadet KH-32-063-10-S

Cyl. Barrel Baffle - #1 Side

$15.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-086-12

Tap Screw, M6 X 1.7 X 18

$

$

Not available

14

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

15

Cub Cadet KH-41-403-10-S

Regulator/Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

16

Cub Cadet KH-25-086-158-S

Flg. Thd. Frm. Screw, M6 X 1.0 X 10
(Superseded to KH-25-086-406-S)

$2.49

$

In Stock, Qty 9

0

Cub Cadet KH-41-037-10-S

Service Nameplate

Note: Not shown

$8.99

$

In Stock, only 4 left!

0
