LTX 1046 (13BP91AT010) - Cub Cadet 46" Lawn Tractor (2011) Kohler SV720-3002 Ignition & Electrical Parts Diagram

46" Lawn Tractor

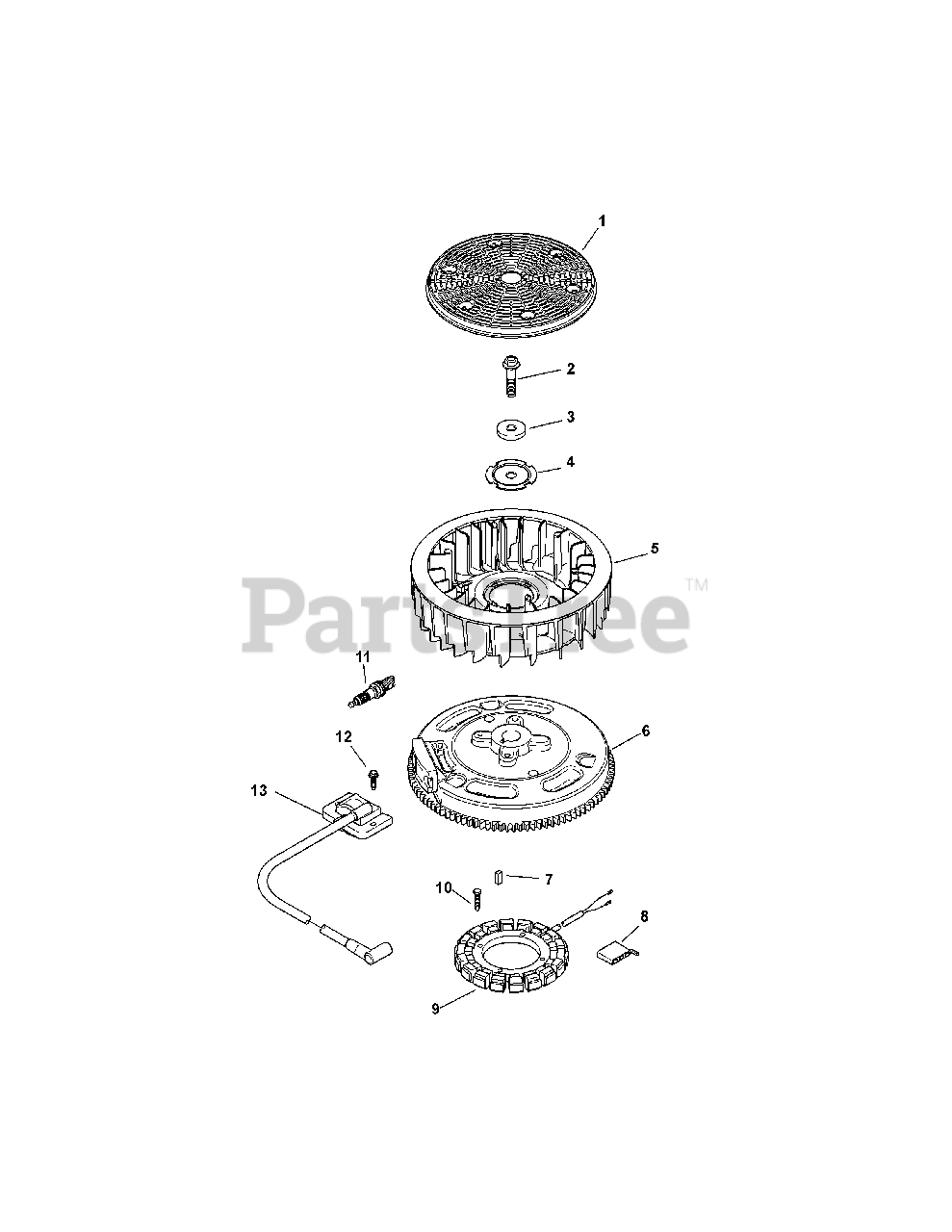

Kohler SV720-3002 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-32-162-03-S

Screen, Grass

$5.49

$

In Stock, Qty 7

0

2

Cub Cadet KH-25-086-361-S

Screw, Hex Flange

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-25-468-09-S

Washer, Flat

$6.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-20-146-05-S

Plate, Fan Mounting

$2.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-32-025-16-S

Flywheel Assembly (Sv710/Sv730)
(Superseded to KH-32-025-22-S)

$347.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-25-340-04-S

Key, Square

$3.99

$

In Stock, Qty 10

0

8

Cub Cadet KH-25-155-41-S

Connector

$24.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-237878

Kit, 15 / 20 Amp Stator

$149.99

$

In Stock, Qty 8

0

10

Cub Cadet KH-M-548025-S

Screw, Thd Frm M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-132-02

Plug, Spark (Std)
(Superseded to 759-3336)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-24-584-45-S

Kit, Module Igntn (Cdi ! Fixed)
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

Cub Cadet KH-25-454-03-S

Tie, Wire

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-05-S

Tie

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-32-176-24-S

Harness, Wiring

$31.99

$

Usually ships in 2-5 days

0
