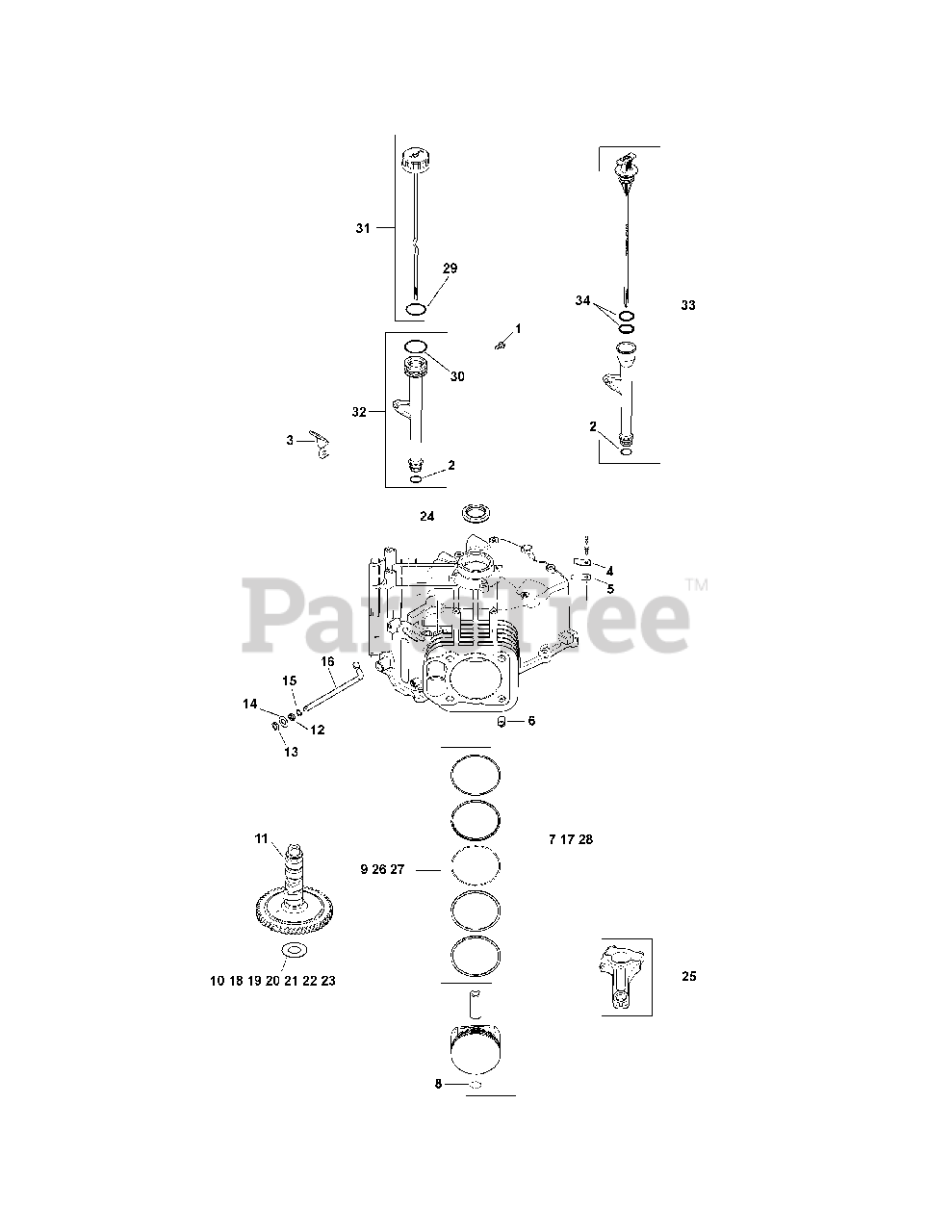

LTX 1046 (13BP91AT010) - Cub Cadet 46" Lawn Tractor (2011) Kohler SV720-0002 Crankcase Parts Diagram

46" Lawn Tractor

Kohler SV720-0002 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-M-545013-S

Flg. Thd. Frm. Screw, M5 X 0.8 X 13

$2.49

$

In Stock, Qty 9

0

2

Cub Cadet KH-12-153-01-S

Lower Oil Fill Tube O-Ring

$4.99

$

In Stock, Qty 17

0

3

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-018-04-S

Breather Reed Retainer

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-12-402-02

Breather Reed

$

$

Not available

6

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-874-01-S

Piston Kit w/ Ring Set (Inc. 8, 26)
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-24-108-15-S

Ring Set (.08)

$103.99

$

In Stock, only 3 left!

0

10

Cub Cadet KH-12-422-07-S

Camshaft Shim (White .028")

$4.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-32-012-01-S

Camshaft Kit (Inc. KH-25-357-14-S)

$136.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-M-931010-S

Flat Washer, 9 Mm

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-468-15-S

Flat Washer, 11/32

$2.49

$

In Stock, Qty 5

0

16

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-25-874-03-S

Piston Kit w/ Ring Set (0.25) 83mm
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-12-422-08-S

Camshaft Shim (Blue .03")

$2.49

$

In Stock, only 2 left!

0

19

Cub Cadet KH-12-422-09-S

Camshaft Shim (Red .032")

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet KH-12-422-10-S

Camshaft Shim (Yellow .034")

$2.49

$

In Stock, only 1 left!

0

21

Cub Cadet KH-12-422-11-S

Camshaft Shim (Green .036")

$2.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-12-422-12-S

Camshaft Shim (Gray .038")

$2.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-12-422-13-S

Camshaft Shim (Black .04")

$2.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-24-032-19-S

Oil Seal (Helix Lip)

$7.49

$

In Stock, Qty 20+

0

25

Cub Cadet KH-24-067-28-S

Connecting Rod (Std)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 6

0

26

Cub Cadet KH-24-108-14-S

Ring Set (Std)

$

$

Not available

27

Cub Cadet KH-24-108-16-S

Ring Set (.25)

$103.99

$

In Stock, only 2 left!

0

28

Cub Cadet KH-25-874-02-S

Piston Kit w/ Ring Set (0.08) 83mm (Inc. 8 & 9)
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-25-153-02-S

Dipstick O-Ring

Note: (Before S/N 3909900011)

$2.49

$

In Stock, only 1 left!

0

30

Cub Cadet KH-12-153-02-S

Upper Oil Fill Tube O-Ring

Note: (Before S/N 3909900011)

$2.49

$

In Stock, Qty 8

0

31

Cub Cadet KH-24-038-04-S

Dipstick Assembly (Inc. 29)

Note: (Before S/N 3909900011)

$19.99

$

In Stock, only 1 left!

0

32

Cub Cadet KH-32-755-04-S

Tube Assembly (Inc. 2, 30)

Note: (Before S/N 3909900011)

$

$

Not available

33

Cub Cadet KH-32-755-04-S

Dipstick & Tube Kit (Inc. 2 & 29)

Note: (After S/N 3909900011)

$

$

Not available

34

Cub Cadet KH-20-153-01-S

O-Ring
(Superseded to KH-25-153-09-S)

Note: (Use KH-25-153-09-S After S/N 3909900011)

$3.49

$

In Stock, only 1 left!

0

Cub Cadet KH-25-357-14-S

Camshaft Lubricant

Note: (Not shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-25-113-39-S

Clear Laminate Decal
(Superseded to KH-25-113-79-S)

Note: (Not shown)

$2.49

$

In Stock, only 4 left!

0

Cub Cadet KH-32-113-07-S

Decal, 23 HP
(Superseded to KH-32-113-72-S)

Note: (Not shown)

$

$

Not available

Cub Cadet KH-32-522-07

SV710-740 Shortblock

Note: (Not shown)

$

$

Not available

Cub Cadet KH-32-755-01-S

Gasket Set
(Superseded to KH-32-755-09-S)

Note: (Not shown)

$103.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-SV720-0002

Complete Engine SV720-0002

Note: (Not shown)

$1732.99

$

Usually ships in 3-6 days

0
