LTX 1045 (13WX91AT010) - Cub Cadet 46" Lawn Tractor (2011) Kohler SV600-3225 Oil Pan & Lubrication Parts Diagram

46" Lawn Tractor

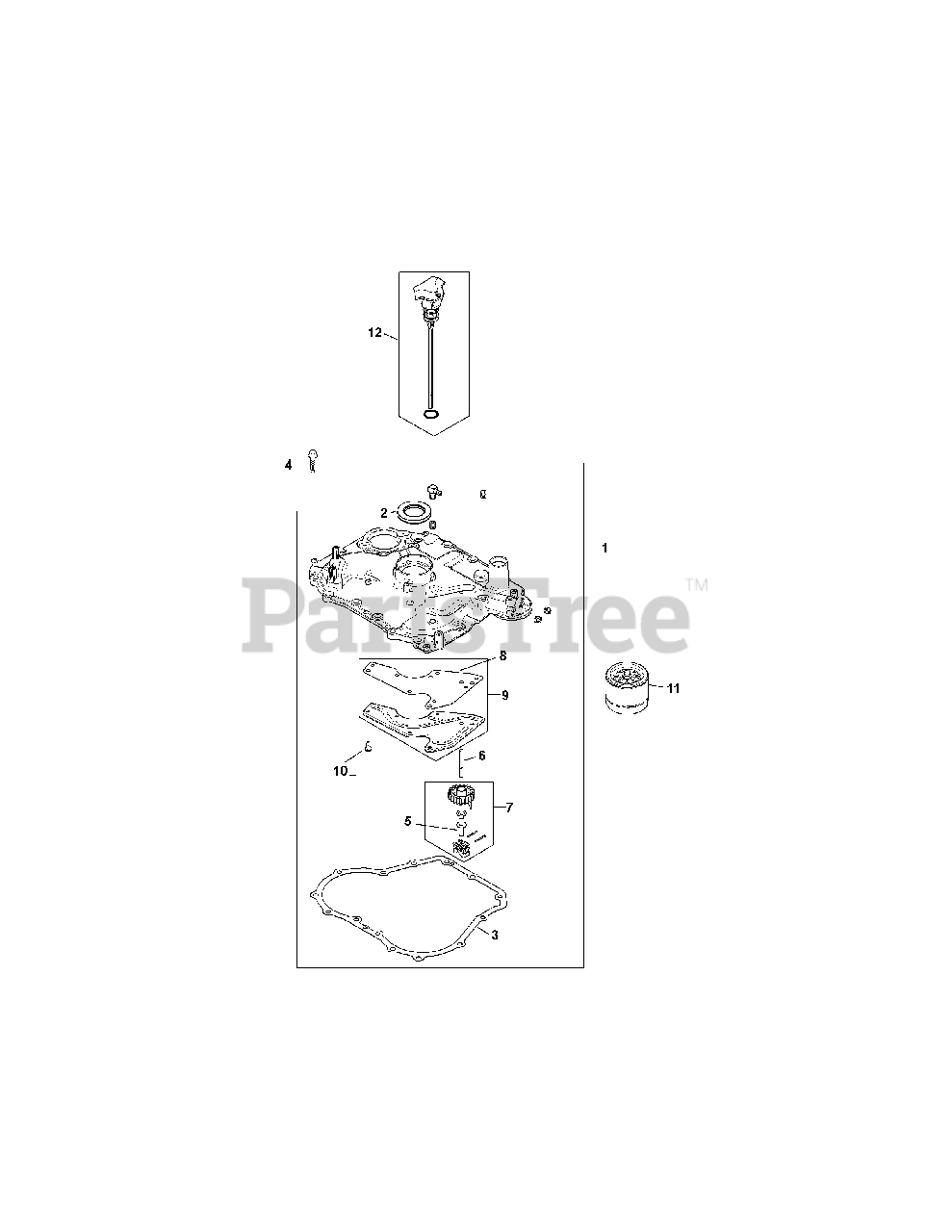

Kohler SV600-3225 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-20-009-30-S

Closure Plate Assembly
(Superseded to KH-20-009-35-S)

$238.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-20-032-08-S

Oil Seal

$9.49

$

In Stock, Qty 11

0

3

Cub Cadet KH-20-041-01-S

Closure Plate Gasket
(Superseded to KH-20-041-21-S)

$

$

Not available

4

Cub Cadet KH-25-086-127-S

Hex Flange Screw, 1/2
(Superseded to KH-25-086-421-S)

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

6

Cub Cadet KH-20-144-03-S

Governor Cross Shaft

$2.49

$

In Stock, only 4 left!

0

7

Cub Cadet KH-25-310-07-S

Governor Gear Assembly
(Superseded to KH-25-310-09-S)

$13.99

$

In Stock, only 4 left!

0

8

Cub Cadet KH-20-041-02-S

Oil Passage Gasket

$3.49

$

In Stock, Qty 6

0

9

Cub Cadet KH-20-096-02-S

Oil Passage Cover Kit (Includes 7)

$

$

Not available

10

Cub Cadet KH-M-545013-S

Flg. Thd. Frm. Screw, M5 X 0.8 X 13

$2.49

$

In Stock, Qty 9

0

11

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-20-040-08-S

Dipstick Assembly Blade

$7.99

$

In Stock, Qty 9

0
