LTX 1045 (13AX91AT256) - Cub Cadet 46" Lawn Tractor (2009) Kohler SV600-3223 Fuel System Parts Diagram

46" Lawn Tractor

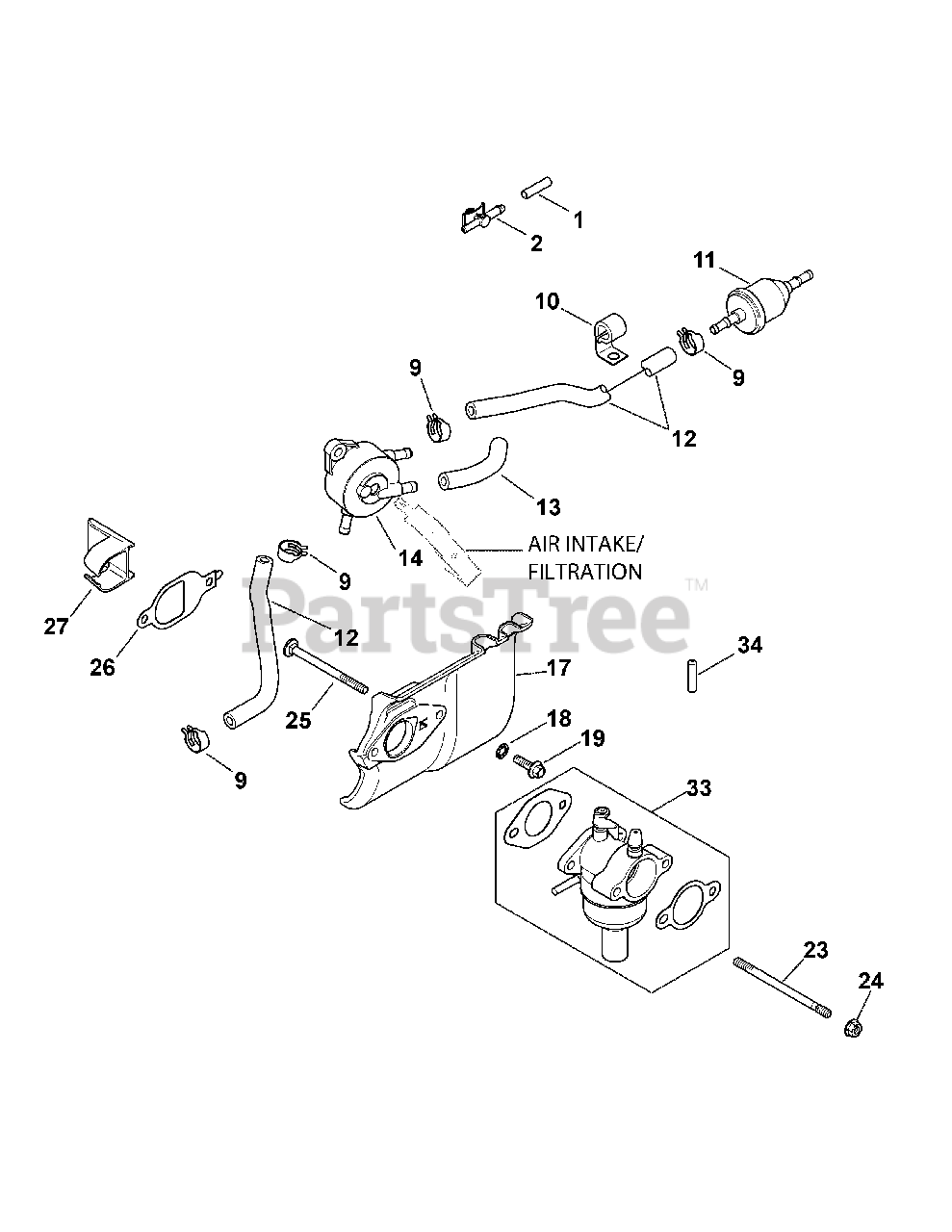

Kohler SV600-3223 Fuel System Parts Diagram

  • Title
1

$

$

Not available

2

Cub Cadet KH-25-155-40-S

SAI Connector
(Superseded to KH-25-155-51-S)

$13.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-25-237-14-S

Hose Clamp, 1.2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

10

$4.99

$

In Stock, Qty 5

0

11

$9.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-111-34-S

Fuel Line
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 1 left!

0

13

$

$

Not available

14

$

$

Not available

17

Cub Cadet KH-20-265-09-S

Heat Deflector Kit

$29.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-X-22-11

Int. Tooth Lock Washer, 1.4

$

$

Not available

19

Cub Cadet KH-M-651020-S

Flange Screw, M6 X 1.0 X 20

$2.49

$

In Stock, Qty 6

0

23

Cub Cadet KH-20-072-05-S

Stud, M6 X 1.0 X 100
(Superseded to KH-20-072-10-S)

$4.99

$

In Stock, Qty 8

0

24

Cub Cadet KH-M-641060-S

Flange Nut, M6 X 1.0

$4.49

$

In Stock, Qty 11

0

25

Cub Cadet KH-20-072-07-S

Carburetor Stud
(Superseded to KH-20-072-09-S)

$2.99

$

In Stock, Qty 10

0

26

Cub Cadet KH-20-041-18-S

Heat Deflector Gasket

$6.99

$

In Stock, Qty 14

0

27

Cub Cadet KH-20-332-01-S

Intake Port Insert

$2.99

$

In Stock, Qty 10

0

33

Cub Cadet KH-20-853-37-S

Carb Tier III Walbro Kit

Note: (Inc. Ref No. 21 & 22)

$

$

Not available

34

$

$

Not available

Cub Cadet KH-25-454-05-S

Tie

Note: Not Shown

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-755-109-S

High Altitude Kit

Note: Not Shown

$

$

Not available

Cub Cadet KH-12-755-110-S

Choke Repair Kit

Note: Not Shown

$14.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-757-02

Float Repair Kit

Note: Not Shown

$

$

Not available

Cub Cadet KH-12-757-03

Carburetor Repair Kit

Note: Not Shown

$34.99

$

In Stock, Qty 8

0

Cub Cadet KH-12-757-33

Solenoid Repair Kit

Note: Not Shown

$

$

Not available

Cub Cadet KH-12-757-37-S

Bowl Replacement Repair Kit

Note: Not Shown

$15.99

$

In Stock, Qty 6

0

Cub Cadet KH-20-755-07-S

High Altitude Kit

Note: Not Shown

$18.99

$

Usually ships in 2-5 days

0
