LTX 1045 (13AX91AT056) - Cub Cadet 46" Lawn Tractor (2012) Kohler SV600-3225 Crankcase Parts Diagram

46" Lawn Tractor

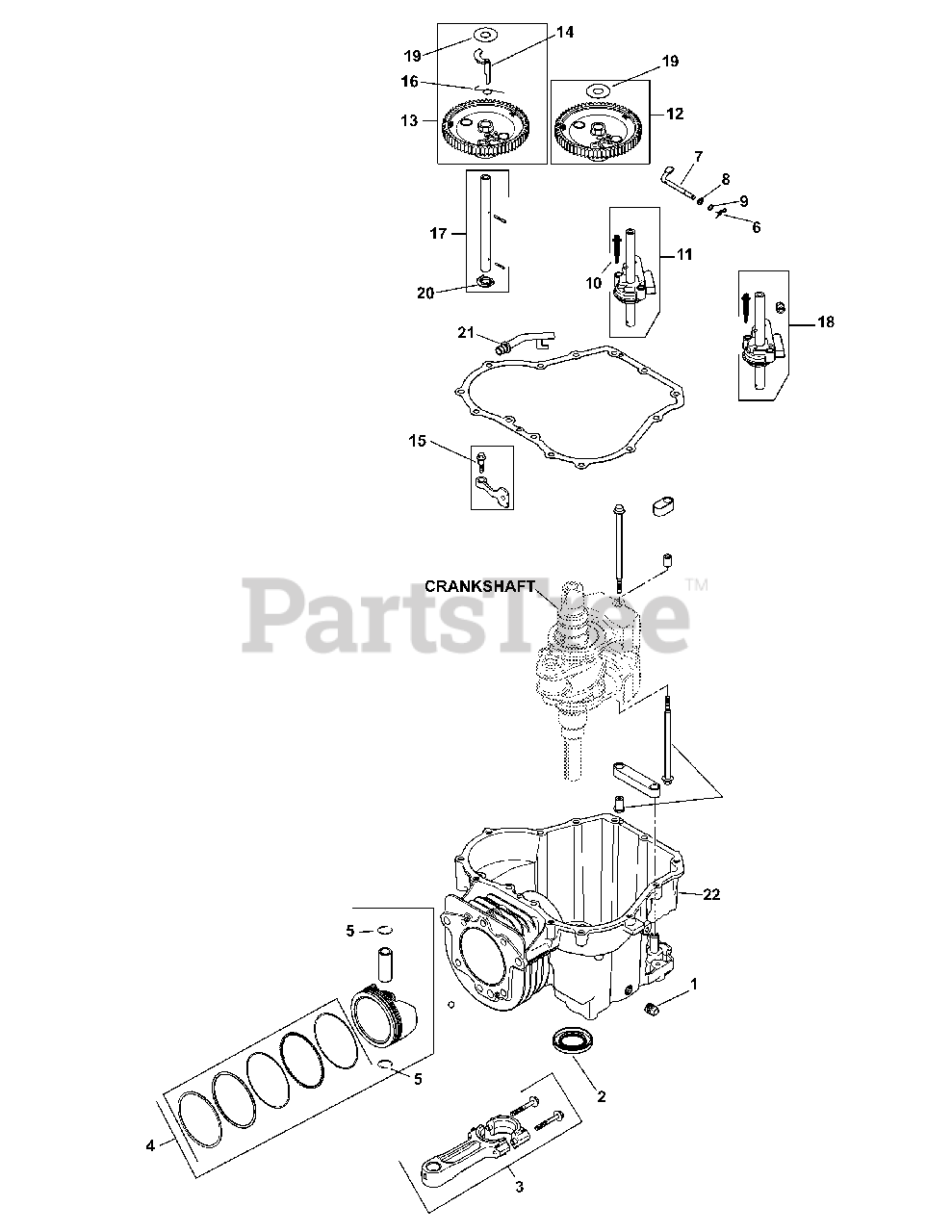

Kohler SV600-3225 Crankcase Parts Diagram

  • Title
1

Cub Cadet KH-25-139-57-S

Square Head Pipe Plug, 3/8

$2.49

$

In Stock, only 3 left!

0

$9.49

$

In Stock, Qty 11

0

3

Cub Cadet KH-20-067-05-S

Connecting Assembly Rod

$80.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-20-874-16-S

Piston W/ Ring Set Kit, 94mm

$114.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-62-018-04-S

Piston Pin Retainer

$2.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-12-154-05

Hitch Pin Clip
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet KH-20-144-02-S

Governor Cross Shaft

$14.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-M-631015

Flat Washer, 6 Mm
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 7

0

9

Cub Cadet KH-X-25-102-S

Flat Washer, 1/4

$2.49

$

In Stock, Qty 5

0

10

Cub Cadet KH-20-086-12-S

Shd. Thd. Frm. Screw

$2.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-20-393-02-S

Oil Pump Assembly Kit

$41.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-20-010-07-S

Cam Lobe Assembly

$

$

Not available

13

Cub Cadet KH-20-010-08-S

Cam Gear Assembly
(Superseded to KH-20-010-23-S)

$36.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-20-044-32-S

Acr. Weight & Follower Kit

$13.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-20-086-06-S

Shd. Thd. Frm. Screw, M6 x 1 x 26

$3.99

$

In Stock, Qty 15

0

16

$2.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-20-144-11-S

Cam Center Shaft Kit

$20.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-20-393-01-S

Oil Pump Kit (Shallow 10mm)

$

$

Not available

19

Cub Cadet KH-20-468-03-S

Thrust -Acr. Washer

$2.49

$

In Stock, Qty 10

0

20

Cub Cadet KH-20-468-08-S

Thrust Washer

$2.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-20-123-02-S

Drainback Tube

$4.99

$

In Stock, Qty 10

0

22

Cub Cadet N/A

Crankcase (Use: Short Block)

$

$

Currently unavailable

Cub Cadet KH-20-522-13

Short Block

Note: (Not shown)

$

$

Not available

Cub Cadet KH-SV600-3225

Complete Engine
(Superseded to KH-SV601-3212)

Note: (Not shown)

$

$

Not available
