LTX 1045 (13AX91AT010) - Cub Cadet 46" Lawn Tractor (2009) Kohler SV600-3223 Oil Pan & Lubrication Parts Diagram

46" Lawn Tractor

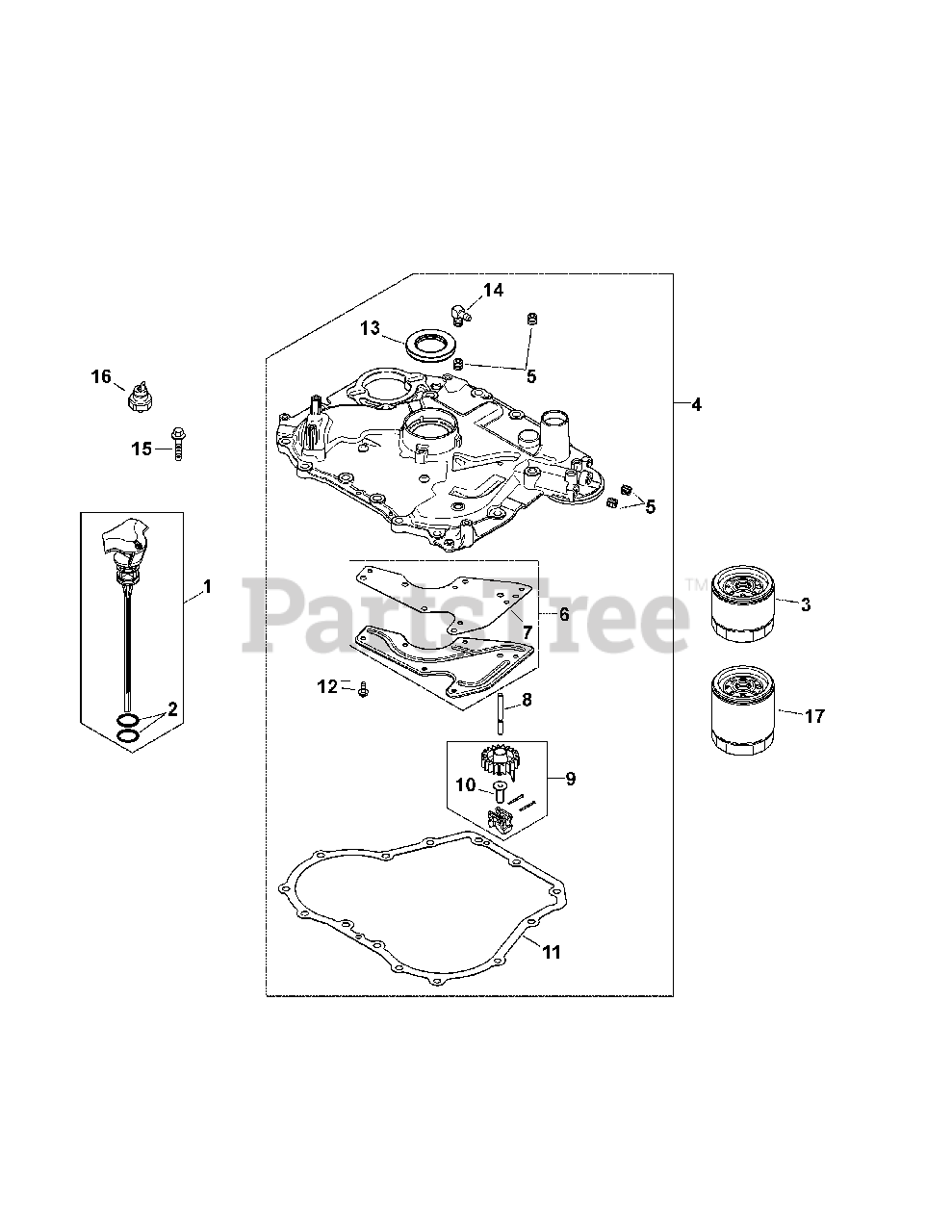

Kohler SV600-3223 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-20-040-06-S

Dipstick Assembly-Std Yellow
(Superseded to KH-20-040-08-S)

Note: (Incl. Ref No. 2)

$7.99

$

In Stock, Qty 9

0

2

Cub Cadet KH-20-153-01-S

O-Ring
(Superseded to KH-25-153-09-S)

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

4

Cub Cadet KH-20-009-30-S

Closure Plate Assembly
(Superseded to KH-20-009-35-S)

Note: (Incl. Ref No. 5-14)

$238.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-25-139-60-S

Ctsk. Pipe Plug, 1/8

$3.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-20-096-02-S

Oil Passage Cover Kit

Note: (Incl. Ref No. 7)

$

$

Not available

7

Cub Cadet KH-20-041-02-S

Oil Passage Gasket

$3.49

$

In Stock, Qty 6

0

8

Cub Cadet KH-20-144-03-S

Governor Cross Shaft

$2.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-25-310-07-S

Governor Gear Assembly
(Superseded to KH-25-310-09-S)

$13.99

$

In Stock, only 4 left!

0

10

Cub Cadet KH-12-380-01-S

Governor Regulating Pin

$

$

Currently unavailable

11

Cub Cadet KH-20-041-01-S

Closure Plate Gasket
(Superseded to KH-20-041-21-S)

$

$

Not available

12

Cub Cadet KH-M-545013-S

Flg. Thd. Frm. Screw, M5 X 0.8 X 13

$2.49

$

In Stock, Qty 9

0

13

Cub Cadet KH-20-032-01-S

Oil Seal
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 11

0

14

Cub Cadet KH-25-155-02-S

90° Hose Connector

$

$

Currently unavailable

15

Cub Cadet KH-25-086-127-S

Hex Flange Screw, 1/2
(Superseded to KH-25-086-421-S)

$2.49

$

In Stock, only 3 left!

0

16

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

17

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable
