LTX 1045 (13AX91AT010) - Cub Cadet 46" Lawn Tractor (2009) Hood & Dash Assembly Parts Diagram

46" Lawn Tractor

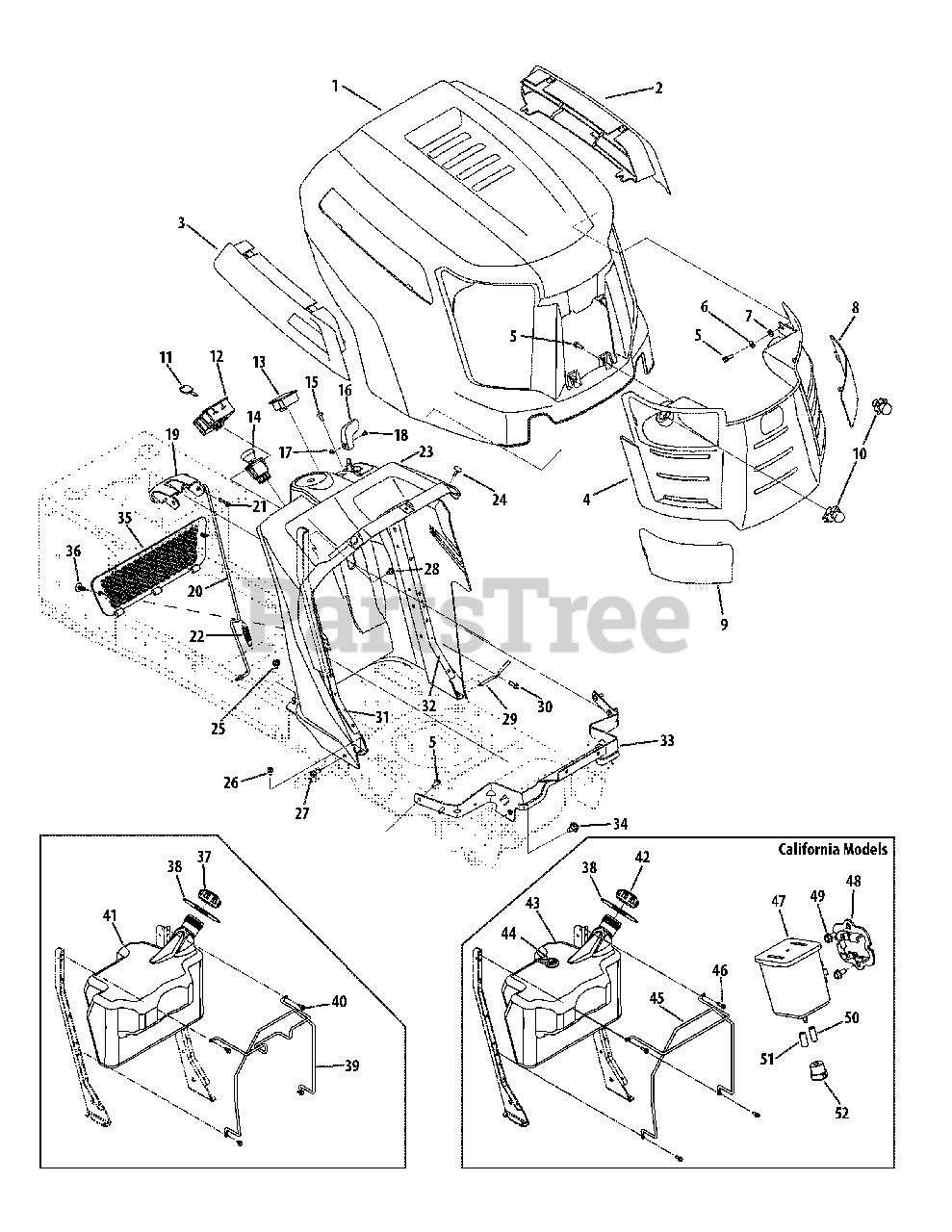

Hood & Dash Assembly Parts Diagram

  • Title

1

Cub Cadet 931-06634

Hood
(Superseded to 931-06634A)

Note: When replacing hood, use 8 new 710-05108 screws.

$328.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-06543

LH Hood Scoop
(Superseded to 931-06543B)

$52.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06542

RH Hood Scoop
(Superseded to 931-06542B)

$

$

Not available

4

Cub Cadet 931-04322

Grille Asm

Note: includes 8 & 9

$96.99

$

In Stock, only 1 left!

0

4

Cub Cadet 777X43335

Reflective Label, LH
(Superseded to 777X44055)

Note: Not Shown

$12.99

$

In Stock, only 1 left!

0

4

Cub Cadet 777X43334

Reflective Label, RH
(Superseded to 777X44056)

Note: Not Shown

$12.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-05108

Hex Washer BosScrew™, 1/4 Dia. x .750

Note: Replaces 710-0895 in this application

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

7

Cub Cadet 936-0222

Lock Washer, 1/4
(Superseded to 736-0222)

$

$

Not available

8

Cub Cadet 931-06559

Lens, LH

$18.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 931-06558

Lens, RH

$

$

Not available

10

Cub Cadet 925-0963

Bulb

$7.49

$

In Stock, only 4 left!

0

10

Cub Cadet 925-1649

Socket, Headlight
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 925-2054A

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

12

Cub Cadet 925-04227B

Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

13

Cub Cadet 925-04022B

Indicator Meter

$146.99

$

In Stock, only 1 left!

0

14

Cub Cadet 725-04258

Electric PTO
(Superseded to 925-04258A)

Note: (If Equipped)

$56.99

$

In Stock, only 4 left!

0

15

Cub Cadet 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

16

Cub Cadet 731-06593

Throttle Knob

$9.49

$

In Stock, Qty 6

0

16

Cub Cadet 746-04617

Cable, Throttle/Choke - LTX1042 & LTX1045
(Superseded to 946-04617)

Note: Not Shown

$39.99

$

In Stock, Qty 9

0

16

Cub Cadet 746-04556

Cable, Throttle/Choke - LTX1046 & LTX1050
(Superseded to 946-04556)

Note: Not Shown

$39.99

$

In Stock, only 2 left!

0

17

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 710-3217

Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 731-05447A

Parking Brake/Cruise Control Lever

$16.99

$

In Stock, only 3 left!

0

20

Cub Cadet 747-05009

Control Rod
(Superseded to 747-05009B)

$18.99

$

In Stock, only 3 left!

0

21

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

22

Cub Cadet 732-04580

Extension Spring, .500 x 2.733

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 931-06666

Dash Panel - LTX1042 & LTX1045

$149.99

$

In Stock, only 3 left!

0

23

Cub Cadet 931-06554

Dash Panel - LTX1046 & LTX1050

$149.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 735-0271A

Bumper

$8.99

$

In Stock, only 4 left!

0

25

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-1611B

Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

28

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 747-1196

Bent Lever Rod

$15.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

31

Cub Cadet 783-06099-0637

Dash Support, RH

$42.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 783-06098-0637

Dash Support, LH

$42.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 783-06114-0637

Hood Pivot Bracket

$49.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 735-04076

Net

$15.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

37

Cub Cadet 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

38

Cub Cadet 735-04170

Fuel Tank Gasket

$5.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 747-05040A

Fuel Tank Support Rod

$65.99

$

In Stock, only 2 left!

0

40

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 751-10879

Fuel Tank
(Superseded to 751-10879B)

$145.99

$

In Stock, Qty 5

0

42

Cub Cadet 951-10947

Fuel Cap
(Superseded to 951-12426B)

Note: (CA)

$41.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 751-10906

Fuel Tank
(Superseded to 951-04311)

Note: (CA)

$175.99

$

In Stock, only 1 left!

0

44

Cub Cadet 751-10441

Rollover Valve
(Superseded to 751-12118)

Note: (CA)

$35.99

$

In Stock, only 1 left!

0

44

Cub Cadet 735-04081

Rubber Grommet

Note: (CA), Not shown

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 747-05040A

Fuel Tank Support Rod

Note: (CA)

$65.99

$

In Stock, only 2 left!

0

46

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x .750

Note: (CA)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 951-10589

Carbon Canister

Note: (CA)

$72.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-10610

Canister Adapter Bracket

Note: (CA)

$23.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

Note: (CA)

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 751-10749

Fuel Hose, 3/16 White

Note: (CA)

$0.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 751-10750-28

Fuel Hose, 7/32 Yellow

Note: (CA)

$

$

Not available

52

Cub Cadet 951-10590

Canister Vent Filter

Note: (CA)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-04734

Wire Harness Electric PTO (LTX1046 & LTX1050)

Note: Not Shown

$252.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-04762

Wire Harness Manual PTO (LTX1042 & LTX1045)
(Superseded to 759-05157)

Note: Not Shown

$241.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

Note: Not Shown

$6.49

$

In Stock, Qty 11

0
