LTX 1042 (13AX91AR010) - Cub Cadet 42" Lawn Tractor (2009) Mowing Deck Timed 42 Inch Parts Diagram

42" Lawn Tractor

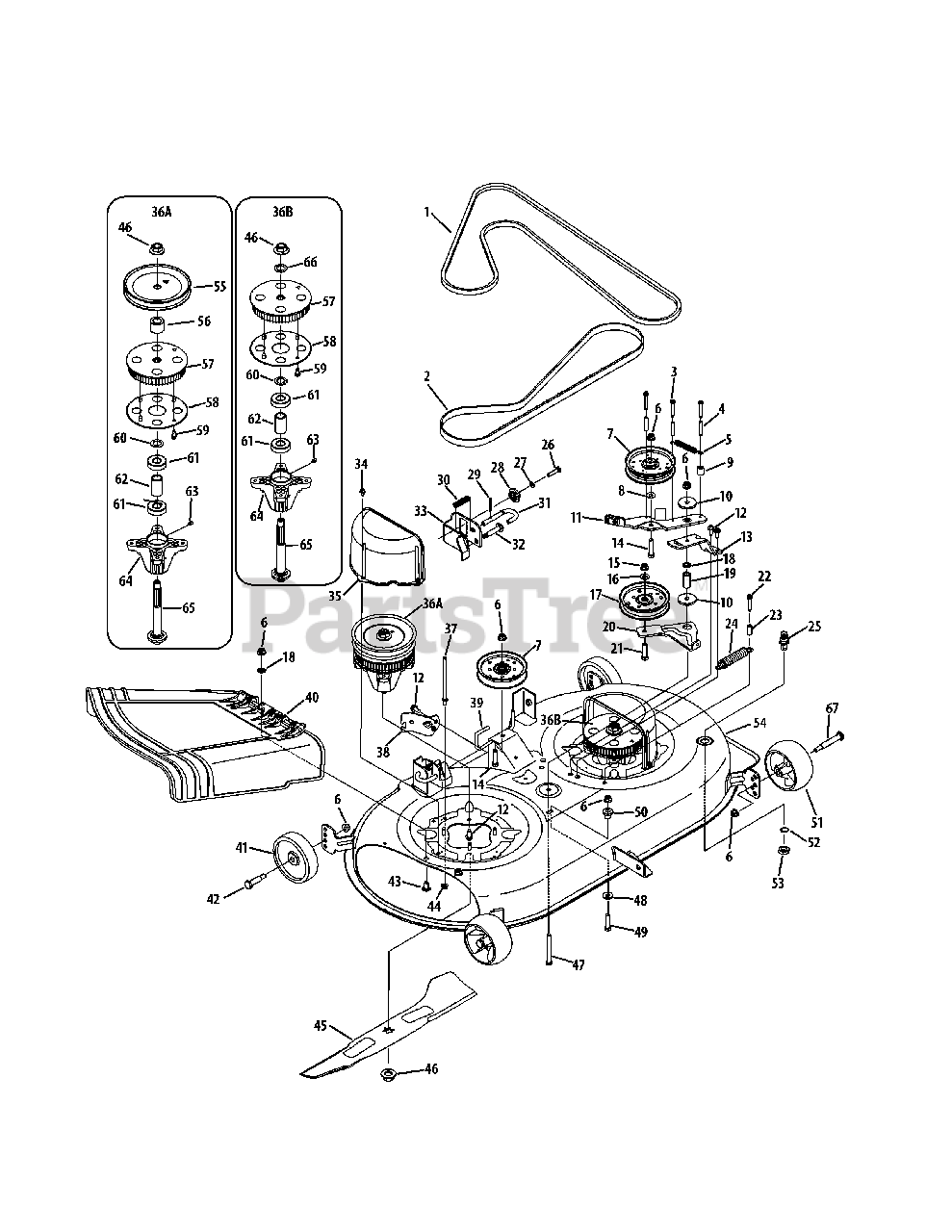

Mowing Deck Timed 42 Inch Parts Diagram

  • Title

1

Cub Cadet 954-0266A

Drive Belt

$47.99

$

In Stock, only 2 left!

0

2

Cub Cadet 954-04167

Timing Belt

$113.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1325

Hex Washer Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

5

Cub Cadet 932-0428A

Extension Spring, .50 x 4.35
(Superseded to 732-0428B)

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

8

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

9

Cub Cadet 750-0807

Spacer, .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

11

Cub Cadet 983-04524

Brake Assembly

$54.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 783-06176-0637

Idler Brace Bracket

$18.99

$

In Stock, Qty 5

0

14

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 756-04280

Idler Pulley
(Superseded to 756-04280A)

$39.99

$

In Stock, only 4 left!

0

18

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 750-04446

Spacer, 3/8 x .68 x 1.46

$6.99

$

In Stock, Qty 6

0

20

Cub Cadet 783-05802-0637

Tension Bracket
(Superseded to 783-05802)

$

$

Not available

21

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 710-1325

Hex Washer, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 750-0566A

Spacer, .260 x .375 x 1.030

$9.99

$

In Stock, only 1 left!

0

24

Cub Cadet 732-0826A

Extension Spring, .865 x 4.68

$11.99

$

In Stock, Qty 20+

0

25

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

26

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 14

0

29

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 932-0306A

Compression Spring, .531 x 1.75

$8.49

$

In Stock, only 4 left!

0

31

Cub Cadet 747-1116

Deck Handle Rod

$12.99

$

In Stock, Qty 6

0

32

Cub Cadet 738-04316A

Shoulder Bolt, 5/16-24 x .435 x 1.76

$7.99

$

In Stock, only 1 left!

0

33

Cub Cadet 783-05627-0637

Deck Lift Bracket

$19.99

$

In Stock, only 1 left!

0

34

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 731-06291A

Belt Cover

$

$

Not available

36A

Cub Cadet 918-04512A

Spindle Assembly, Drive
(Superseded to 918-04512B)

$197.99

$

In Stock, only 1 left!

0

36B

Cub Cadet 918-04516

Spindle Assembly, Driven
(Superseded to 918-04516A)

$176.99

$

In Stock, only 2 left!

0

37

Cub Cadet 711-1044A

Belt Guard Pin

$8.99

$

In Stock, Qty 8

0

38

Cub Cadet 783-06262-0637

Deck Engage Cable Bracket
(Superseded to 783-06262A-0637)

$

$

Not available

39

Cub Cadet 747-05055

Belt Keeper Rod

$

$

Not available

40

Cub Cadet 631-04254

Chute Assembly
(Superseded to 631-04293A)

$63.99

$

In Stock, Qty 6

0

41

Cub Cadet 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

42

Cub Cadet 938-0373

Shoulder Screw, 3/8-16 x .496 x 1.525

$9.49

$

In Stock, Qty 20+

0

43

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 712-04063

Flange Lock Nut, 5/16 x 18

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 942-04217

2-in-1 Blade

$43.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 710-3130

Hex Screw, 3/8-16 x 3.25

$10.99

$

In Stock, only 1 left!

0

48

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 2 left!

0

49

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 938-0785

Shoulder Spacer, 1.38 x .445 x .36

$25.99

$

In Stock, Qty 9

0

51

Cub Cadet 734-04155

Deck Wheel

$20.99

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

53

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

54

Cub Cadet 683-04492-4021

Deck Assembly
(Superseded to 983-04492-4021)

$1109.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 756-04372

Pulley (Drive Spindle)

$

$

Not available

56

Cub Cadet 750-04724

Spacer, .792 x 1.060 x 1.860 (Drive Spindle)

$10.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 913-04040A

Timing Pulley

$71.99

$

In Stock, only 1 left!

0

58

Cub Cadet 787-01520

Timing Pulley Plate

$11.99

$

In Stock, only 2 left!

0

59

Cub Cadet 710-04065

Screw, 1/4-10 x .625

$6.49

$

In Stock, Qty 20+

0

60

Cub Cadet 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

61

Cub Cadet 941-0919

Ball Bearing, .787 x 1.85 x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

62

Cub Cadet 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

63

Cub Cadet 937-3000

Drive Lube Fitting

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 619-04199

Spindle Housing
(Superseded to 719-07293-M)

$44.99

$

In Stock, Qty 5

0

65

Cub Cadet 938-04292

Spindle Shaft (Drive Spindle)

$46.99

$

In Stock, Qty 8

0

65

Cub Cadet 938-04291

Spindle Shaft (Driven Spindle)

$44.99

$

In Stock, only 1 left!

0

66

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

67

Cub Cadet 938-3056

Shoulder Bolt .50 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0
