LTX 1042 (13AX91AR010) - Cub Cadet 42" Lawn Tractor (2009) Kohler SV590-0220 Fuel System Parts Diagram

42" Lawn Tractor

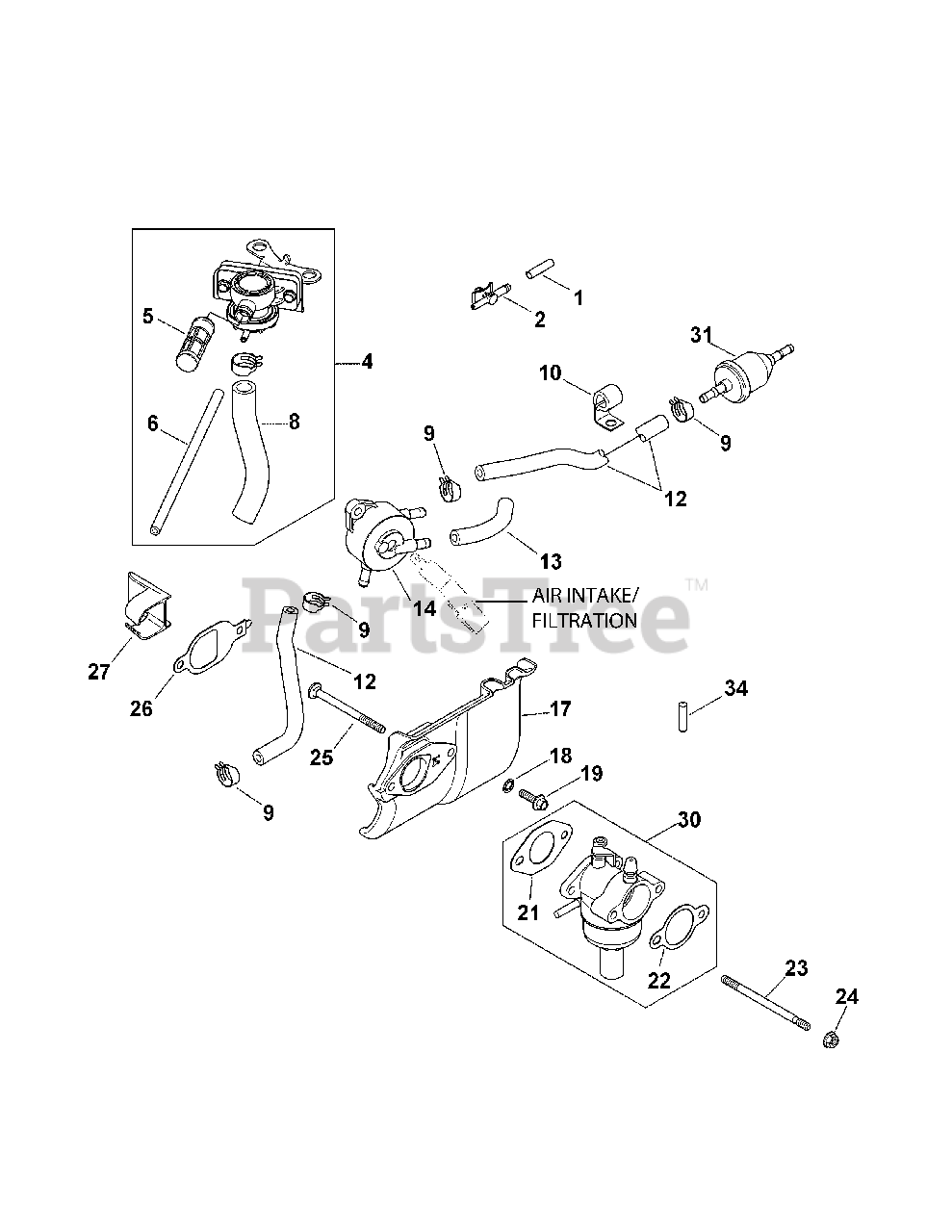

Kohler SV590-0220 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-173-23-S

Masking Cap

$

$

Not available

2

Cub Cadet KH-25-155-40-S

SAI Connector
(Superseded to KH-25-155-51-S)

$13.99

$

In Stock, only 3 left!

0

4

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

5

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

6

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

8

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

9

Cub Cadet KH-25-237-14-S

Hose Clamp, 1/2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

10

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

12

Cub Cadet KH-25-111-34-S

Fuel Line
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 1 left!

0

13

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

14

Cub Cadet N/A

Fuse Block

$

$

Currently unavailable

17

Cub Cadet KH-20-265-09-S

Heat Deflector Kit

$29.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-X-22-11

Int. Tooth Lock Washer, 1/4

$

$

Not available

19

Cub Cadet KH-M-651020-S

Flange Screw, M6 X 1.0 X 20

$2.49

$

In Stock, Qty 6

0

21

Cub Cadet KH-12-041-01

Gasket, carburetor

$2.49

$

In Stock, Qty 16

0

22

Cub Cadet KH-12-041-02

Gasket, air cleaner

$2.49

$

In Stock, Qty 8

0

23

Cub Cadet KH-20-072-05-S

Stud, M6 X 1.0 X 100
(Superseded to KH-20-072-10-S)

$4.99

$

In Stock, Qty 8

0

24

Cub Cadet KH-M-641060-S

Flange Nut, M6 X 1.0

$4.49

$

In Stock, Qty 11

0

25

Cub Cadet KH-20-072-07-S

Carburetor Stud
(Superseded to KH-20-072-09-S)

$2.99

$

In Stock, Qty 10

0

26

Cub Cadet KH-20-041-18-S

Heat Deflector Gasket

$6.99

$

In Stock, Qty 14

0

30

Cub Cadet KH-20-853-35-S

Carburetor Kit

Note: (Inc. Ref No. 21 & 22)

$175.99

$

In Stock, only 1 left!

0

31

Cub Cadet KH-25-050-21-S

Fuel Filter

$8.99

$

In Stock, Qty 20+

0

34

Cub Cadet N/A

not used in this application

$

$

Currently unavailable

Cub Cadet KH-25-454-05-S

Tie

Note: (not shown)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-755-109-S

High Altitude Kit

Note: (not shown)

$

$

Not available

Cub Cadet KH-12-755-110-S

Repair Choke Kit

Note: (not shown)

$14.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-757-02

Repair Float Kit

Note: (not shown)

$

$

Not available

Cub Cadet KH-12-757-03

Repair Carburetor Kit

Note: (not shown)

$34.99

$

In Stock, Qty 8

0

Cub Cadet KH-25-757-25-S

Solenoid Repair Kit

Note: (not shown)

$75.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-757-37-S

Repair Bowl Replacement Kit

Note: (not shown)

$15.99

$

In Stock, Qty 6

0

Cub Cadet KH-20-755-07-S

High Altitude Kit

Note: (not shown)

$18.99

$

Usually ships in 2-5 days

0
