LTX 1040 (13WX90AS209) - Cub Cadet 42" Lawn Tractor (2010) Transmission Parts Diagram

42" Lawn Tractor

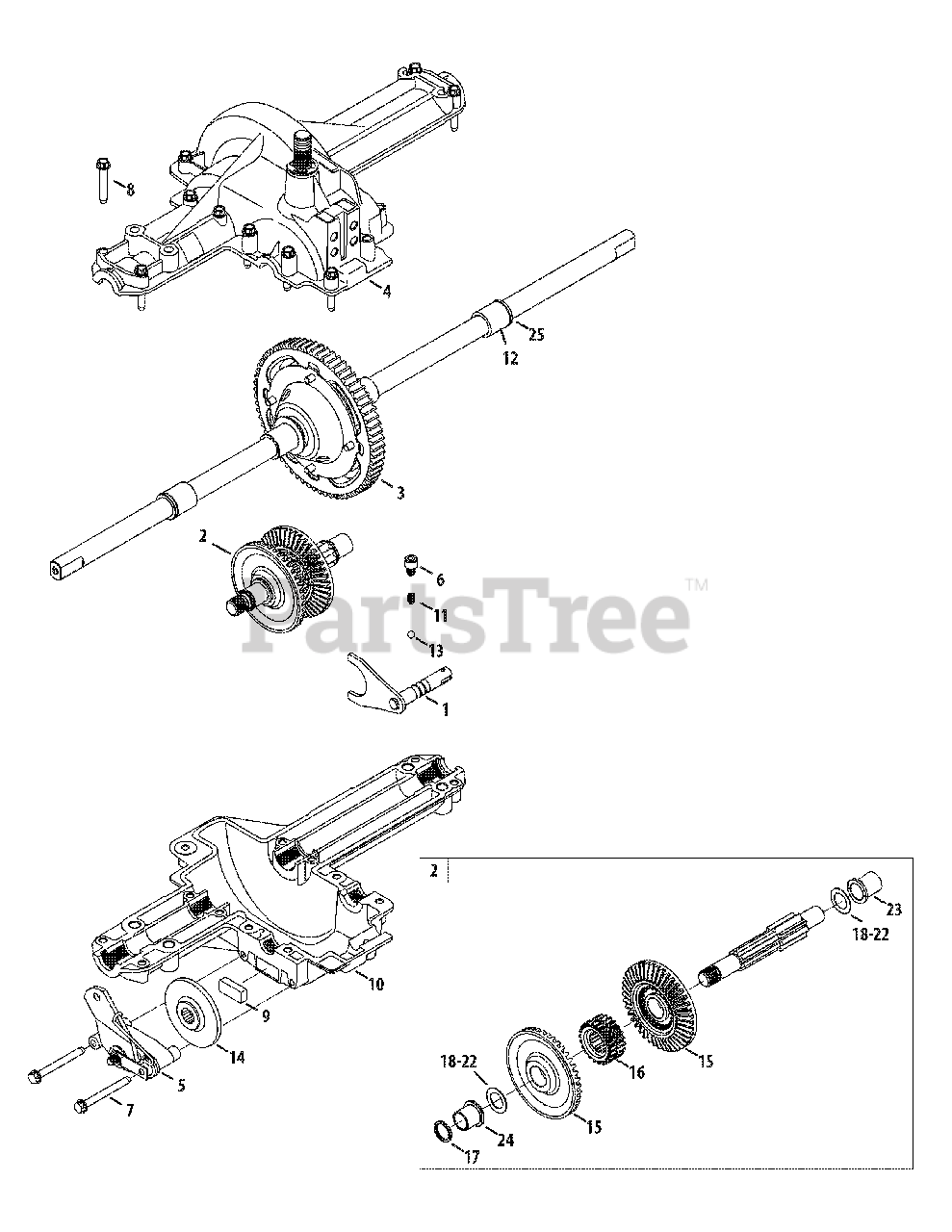

Transmission Parts Diagram

  • Title

1

Cub Cadet 911-0011

Shaft Ass’y, Detent

$42.99

$

In Stock, only 3 left!

0

2

Cub Cadet 911-04091

Shaft Ass’y, Drive, Fwd-Rev
(Superseded to 911-05051)

$155.99

$

In Stock, only 1 left!

0

3

Cub Cadet 918-04619

Differential Ass’y

$238.99

$

In Stock, only 1 left!

0

4

Cub Cadet 919-04187

Housing Ass’y, Upper
(Superseded to 919-04187A)

$164.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 961-0001

Brake Ass’y, Yoke, RH

$57.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-04731

Shcs, Self-tapping, 5/16-18, .375

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1206

Screw, Self-tapping, 1/4-20, 2.375,

$7.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-1325

Screw, Self-tapping, 1/4-20, 1.625,

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 917-0678

Pad, Brake

$7.49

$

In Stock, Qty 7

0

10

Cub Cadet 919-04329

Housing, Lower
(Superseded to 919-04329B)

$85.99

$

In Stock, only 1 left!

0

11

Cub Cadet 932-0863

Compression Spring
(Superseded to 932-05125)

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 941-0340

Bearing, Sleeve, .75 x 1.00 x .42
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 8

0

13

Cub Cadet 741-0862

Ball, Detent, .250

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 761-0202

Disc, Brake

$15.99

$

In Stock, only 1 left!

0

15

Cub Cadet 917-04479

Gear, Bevel, 42t, Spline
(Superseded to 917-04479B)

$29.99

$

In Stock, only 2 left!

0

16

Cub Cadet 718-04381P

Collar, Clutch

$18.99

$

In Stock, only 2 left!

0

17

Cub Cadet 721-0213

Seal, .625 x .812 x .094

$10.99

$

In Stock, Qty 12

0

18

Cub Cadet 936-0336

Washer, Flat, 5/8x1.00x.030 Hd

Note: Use as required to control backlash .022 / .010

$4.49

$

In Stock, Qty 7

0

18

Cub Cadet 936-0337

Washer, Flat, .634x1.00x.04

Note: Use as required to control backlash .022 / .010

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 936-0349

Washer, Flat, .63 x 1.00 x .020

Note: Use as required to control backlash .022 / .010

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0494

Washer, Flat, .632x1.00x.035

Note: Use as required to control backlash .022 / .010

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet 936-0495

Washer, Thrust, 1.00 x .632 x .020
(Superseded to 736-0495)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 941-0336

Bearing, Flange, 5/8 x 3/4 x 3/4

$11.99

$

In Stock, only 1 left!

0

24

Cub Cadet 941-0337

Bearing, Flange, 5/8 x 3/4 x 15/16

$10.99

$

In Stock, only 3 left!

0

25

Cub Cadet 921-0338

Seal, .75 x 1.00 x .125

$7.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0300A

Grease, Darina, Transmission

Note: Not Shown, 20 oz required if rebuilding transmission
