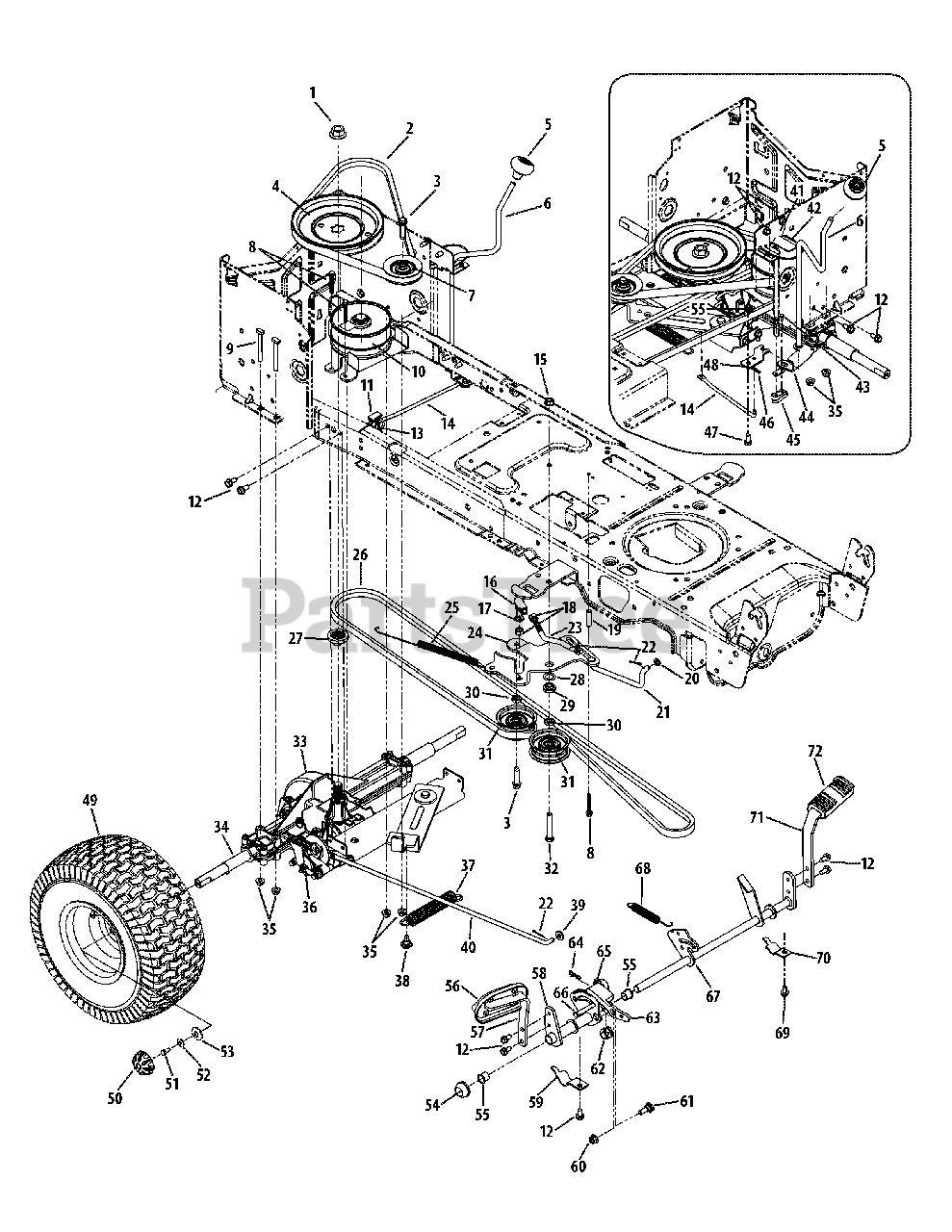

LTX 1040 (13RX90AR056) - Cub Cadet 42" Lawn Tractor (2009) Drive System Parts Diagram

42" Lawn Tractor

Drive System Parts Diagram

  • Title

1

Cub Cadet 712-0700

Flange Nut

$10.99

$

In Stock, only 1 left!

0

2

Cub Cadet 954-04208

V-Belt
(Superseded to 954-04208A)

$45.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-1007

Hex Washer Screw, 3/8-16 x 1.500

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 956-04002

Pulley

$27.99

$

In Stock, Qty 19

0

5

Cub Cadet 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

6

Cub Cadet 647-04035

Shift Lever Assembly

$37.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1026

Hex Washer Screw, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

9

Cub Cadet 710-04823

Bolt, 5/16-18 x 2.75

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 956-04015A

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

10

Cub Cadet 683-04522

Guide, Variable Speed Belt
(Superseded to 783-06227A)

Note: Not shown

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 683-04523

Bracket, Variable Speed Pulley

Note: Not shown

$

$

Not available

10

Cub Cadet 710-0627

Screw, 5/16-24, .750

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0778

Screw, 1/4-20, 1.500

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 718-04261

Cup, Bearing

Note: Not shown

$20.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0362

Washer, Flat

Note: Not shown

$4.49

$

In Stock, Qty 7

0

10

Cub Cadet 741-0124

Ball Bearing
(Superseded to 941-0600)

Note: Not shown

$25.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-06894

Shift Plate Bearing

$6.49

$

In Stock, only 1 left!

0

12

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 914-0209

Internal Cotter Pin

$3.99

$

In Stock, only 2 left!

0

14

Cub Cadet 747-05109

Shift Rod
(Superseded to 747-05243)

$11.99

$

In Stock, only 3 left!

0

15

Cub Cadet 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 923-3018

Joint Ball

$16.99

$

In Stock, Qty 20+

0

17

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

19

Cub Cadet 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

20

Cub Cadet 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

21

Cub Cadet 747-04957A

Foot Pedal Transmission Bypass Rod

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 914-0111

Cotter Pin, 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

23

Cub Cadet 747-04959A

Idler Adjuster Rod

$12.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-06027

Idler Bracket
(Superseded to 783-06027B)

$

$

Not available

25

Cub Cadet 732-04612

Extension Spring, .70 x 12.00

$16.99

$

In Stock, only 1 left!

0

26

Cub Cadet 954-0467

V-Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

27

Cub Cadet 718-04407

Pulley Hub

$12.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-04337

Shim Washer, 1.00 x .632 x .010

$3.99

$

In Stock, Qty 11

0

29

Cub Cadet 738-0372B

Shoulder Spacer, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

30

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 918-04566

Transmission Drive Assembly
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

34

Cub Cadet 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

35

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 732-0716D

Extension Spring, .59 x 4.00

$13.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 732-04616

Extension Spring, .97 x 6.18
(Superseded to 732-04616B)

$14.99

$

In Stock, only 2 left!

0

38

Cub Cadet 738-04091A

Shoulder Screw, 5.16-18 x .43 x .29

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-04984

Brake Rod

$21.99

$

In Stock, only 1 left!

0

41

Cub Cadet 783-06132

Shift Bracket

$8.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 732-0525

Spring Shifter Clip

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

45

Cub Cadet 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

46

Cub Cadet 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 710-3025

Hex Screw, 5.16-18 x .625

$3.99

$

In Stock, Qty 8

0

48

Cub Cadet 783-04595A

Shift Adjustment Bracket

$10.99

$

In Stock, only 4 left!

0

49

Cub Cadet 634-0104-0931

Wheel, Complete, 20 x 8 x 8

$144.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 634-04369-0499

Rim Assembly, 8.0 x 7.0 x.750

$165.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 734-1730-0901

Tire, 20 x 8 x 8

$99.99

$

In Stock, only 1 left!

0

50

Cub Cadet 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0627

Hex Lock Screw, 5.16-24 x .750

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

54

Cub Cadet 726-0214

Push Cap, 5.8

$10.99

$

In Stock, only 4 left!

0

55

Cub Cadet 741-0495

Flange Bearing, .630 x .695 x .60

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 735-0662

Control Pad

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 683-0266

Auto Drive Control Pedal Assembly

$

$

Not available

58

Cub Cadet 683-04489

Transmatic Pedal Bracket Assembly
(Superseded to 753-08028)

$

$

Not available

59

Cub Cadet 783-05914

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 938-0380

Shoulder Bolt, 3.8-16 x .500 x .270
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

62

Cub Cadet 741-3065B

Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

63

Cub Cadet 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

65

Cub Cadet 783-06278

Bracket Reinforcement Plate

$7.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 711-05068

Clevis Pin, 5.16-3.985
(Superseded to 711-05068A)

$7.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 647-04152

Brake Control Assembly
(Superseded to 647-04152D)

$

$

Not available

68

Cub Cadet 732-04587

Extension Spring, .63 x 4.95

$7.49

$

In Stock, Qty 12

0

69

Cub Cadet 710-0604A

Hex Washer Screw, 5.16-18 x .625

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 783-05940

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0
