LTX 1040 (13AX90AS210) - Cub Cadet 42" Lawn Tractor (2012) Drive System Parts Diagram

42" Lawn Tractor

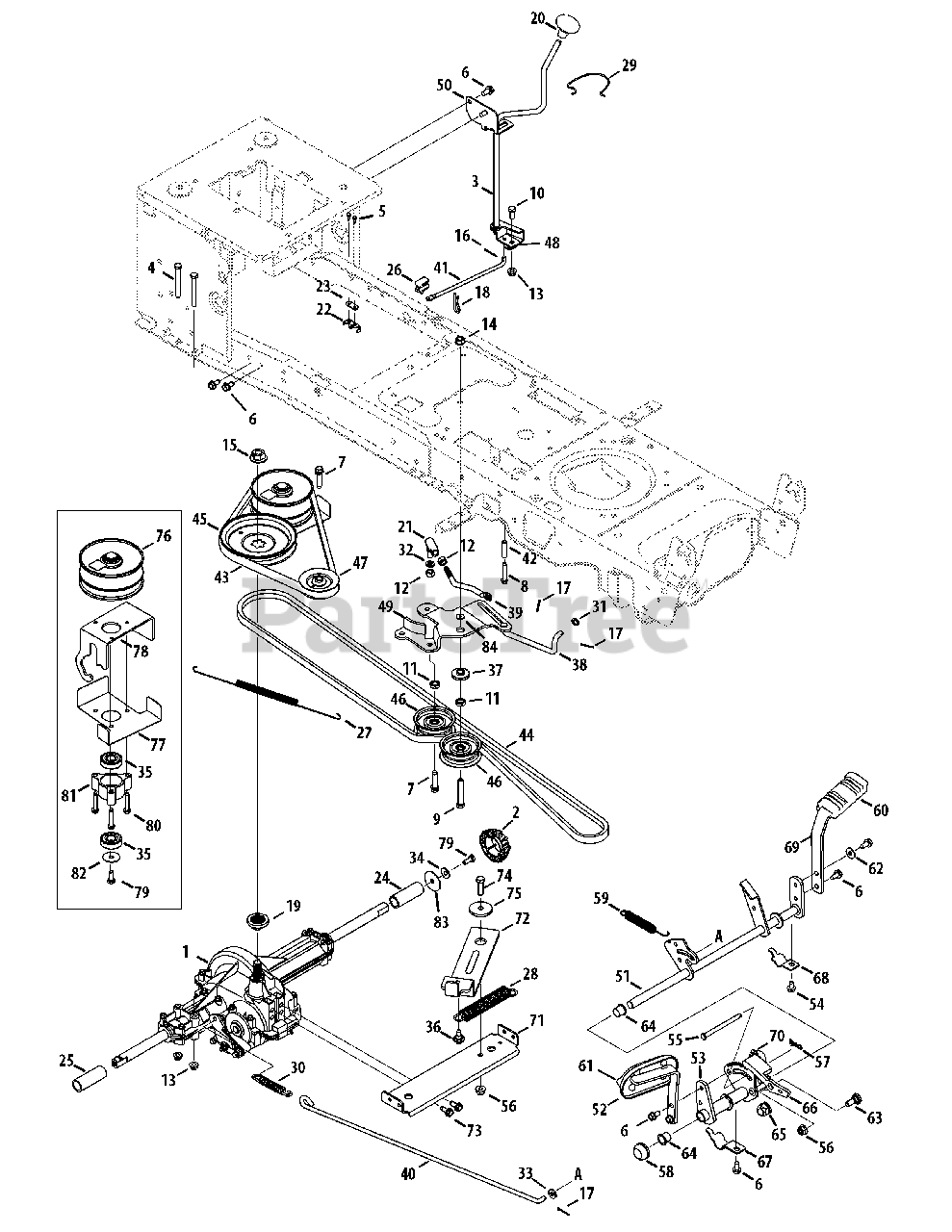

Drive System Parts Diagram

  • Title

1

Cub Cadet 918-04566

Transaxle Ass’y
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

Cub Cadet 731-2290A

Cap, Hub
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 647-04035

Lever Ass’y, Shift

$37.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0176

Hex Screw, 5/16-18, 2.75, Gr5, Std

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0227

Screw, Ab, #8-18, 0.500,

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet 710-1026

Screw, Self-tapping, 1/4-20, 1.750,

$6.99

$

In Stock, Qty 13

0

9

Cub Cadet 710-3011

Hex Screw, 3/8-16, 2.25, Gr5, Std

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3025

Hex Screw, 5/16-18, .625, Gr5, Std

$3.99

$

In Stock, Qty 8

0

11

Cub Cadet 912-0240

Nut, Jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

13

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 912-0431

Nut, Flange Lock, 3/8-16, Grf

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0700

Nut, Flange, 9/16-18, Gr2

$10.99

$

In Stock, only 2 left!

0

16

Cub Cadet 914-0104

Pin, Cotter, .072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 914-0209

Pin, Cotter Internal, .125 Dia

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 718-04407

Hub, Pulley, 5/8 Spline

$12.99

$

In Stock, only 2 left!

0

20

Cub Cadet 720-04028

Knob, Shift

$10.99

$

In Stock, only 4 left!

0

21

Cub Cadet 923-3018

Ball, Joint

$16.99

$

In Stock, Qty 20+

0

22

Cub Cadet 725-1644

Switch, Spring, Short

$9.99

$

In Stock, only 1 left!

0

23

Cub Cadet 926-0320

Plate, Insulator Nut

$6.99

$

In Stock, Qty 9

0

24

Cub Cadet 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

25

Cub Cadet 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 1 left!

0

26

Cub Cadet 731-06894

Bearing, Shift Plate

$6.49

$

In Stock, only 1 left!

0

27

Cub Cadet 732-04612

Spring, Extension, .70 Dia x 12.00

$16.99

$

In Stock, only 1 left!

0

28

Cub Cadet 732-04616B

Spring, Extension, .97 OD x 6.18

$14.99

$

In Stock, only 2 left!

0

29

Cub Cadet 732-0525

Clip, Spring, Shifter

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 732-0716D

Spring, Extension, .59 OD x 4.00

$13.99

$

In Stock, only 2 left!

0

31

Cub Cadet 936-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

32

Cub Cadet 936-0169

Washer, Lock, 3/8, Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 936-3008

Washer, Flat, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 941-0600

Bearing, Ball, 17x40x12, 6203, Ds

$25.99

$

In Stock, Qty 20+

0

36

Cub Cadet 738-04091A

Screw, Shoulder, .43x.29, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-04420

Spacer, Shoulder, 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

38

Cub Cadet 747-04957A

Rod, Footpedal Bypass

$13.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 747-04959A

Rod, Adjustment, Idler, 3/8

$12.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-04984

Rod, Brake

$21.99

$

In Stock, only 1 left!

0

41

Cub Cadet 747-05109

Rod, Shift,
(Superseded to 747-05243)

$11.99

$

In Stock, only 3 left!

0

42

Cub Cadet 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

43

Cub Cadet 954-04208

Belt, V-Type, Poly
(Superseded to 954-04208A)

$45.99

$

In Stock, Qty 20+

0

44

Cub Cadet 954-0467A

Belt, V-Type, Poly

$50.99

$

In Stock, Qty 20+

0

45

Cub Cadet 956-04002

Pulley, V-Type, 7.25 Dia Spun

$27.99

$

In Stock, Qty 14

0

46

Cub Cadet 756-04224

Pulley, Idler, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

47

Cub Cadet 756-04325

Pulley, Idler, V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

48

Cub Cadet 783-04595A

Bracket, Shift, Adjustment

$10.99

$

In Stock, only 4 left!

0

49

Cub Cadet 783-06027A

Bracket, Idler, Center Double
(Superseded to 783-06027B)

$

$

Not available

50

Cub Cadet 783-06132

Bracket, Shift, F-N-R

$8.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 647-04152C

Control Ass’y, Brake
(Superseded to 647-04152D)

$

$

Not available

52

Cub Cadet 683-0266

Ped Ass’y, Control, Auto Drive

$

$

Not available

53

Cub Cadet 683-04489

Bracket Ass’y, Pedal
(Superseded to 753-08028)

$

$

Not available

54

Cub Cadet 710-0604A

Screw, Self-tapping, 5/16-18, 0.625,

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 711-05068

Pin, Clevis, 5/16 x 3.985
(Superseded to 711-05068A)

$7.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

58

Cub Cadet 726-0214

Cap, Push 5/8

$10.99

$

In Stock, only 3 left!

0

59

Cub Cadet 732-04587

Spring, Extension, .63 Dia x 4.95

$7.49

$

In Stock, Qty 12

0

60

Cub Cadet 735-04136

Pad, Pedal, Brake

$15.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 735-0662

Pad, Control

$11.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 938-0380

Bolt, Shoulder, .500 x .270, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

64

Cub Cadet 741-0495

Bearing, Flange

$4.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 741-3065B

Bearing, Hex Flange, .628 ID, Split

$8.49

$

In Stock, Qty 11

0

66

Cub Cadet 748-04203

Latch, Cruise

$14.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 783-05914

Bracket, Support, Pedal Strap

$7.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 783-05940

Bracket, Support, Pedal Strap 5/8

$7.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 783-06103A

Bracket, Ped, Brake

Variations

Cub Cadet 783-06103A-0637

PEDAL-FOOT BRAKE - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 783-06278

Plate, Bracket, Reinforcement

$7.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 683-04520

Bracket Ass’y, Transmission

$35.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 753-06662

Bracket Ass’y, Idler

$22.99

$

In Stock, only 4 left!

0

73

Cub Cadet 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 710-3005

Hex Screw, 3/8-16, 1.25, Gr5, Std

$3.99

$

In Stock, Qty 12

0

75

Cub Cadet 738-04162A

Spacer, Shoulder, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

76

Cub Cadet 956-04015A

Pulley Ass’y, Var Spd, 4.75 OD
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

77

Cub Cadet 683-04522

Keepr Ass’y, Belt
(Superseded to 783-06227A)

$16.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 683-04612-0637

Bracket Ass’y, Variable
(Superseded to 783-06587A)

$34.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 710-0627

Hex Screw, 5/16-24, .750, Gr5, Lock

$4.49

$

In Stock, Qty 20+

0

80

Cub Cadet 710-0778

Screw, Self-tapping, 1/4-20, 1.500,

$4.49

$

In Stock, only 3 left!

0

81

Cub Cadet 718-04261

Cup, Bearing

$20.99

$

In Stock, only 3 left!

0

82

Cub Cadet 736-0362

Washer, Flat, .330 x 1.25 x .06,

$4.49

$

In Stock, Qty 9

0

83

Cub Cadet 736-0430

Washer, Flat, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

84

Cub Cadet 936-0344

Wash, Flat, .385 x 1.00 x .03
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0
