LTX 1040 (13AX90AS056) - Cub Cadet 42" Lawn Tractor (2014) Kohler SV590-3220 Fuel System Parts Diagram

42" Lawn Tractor

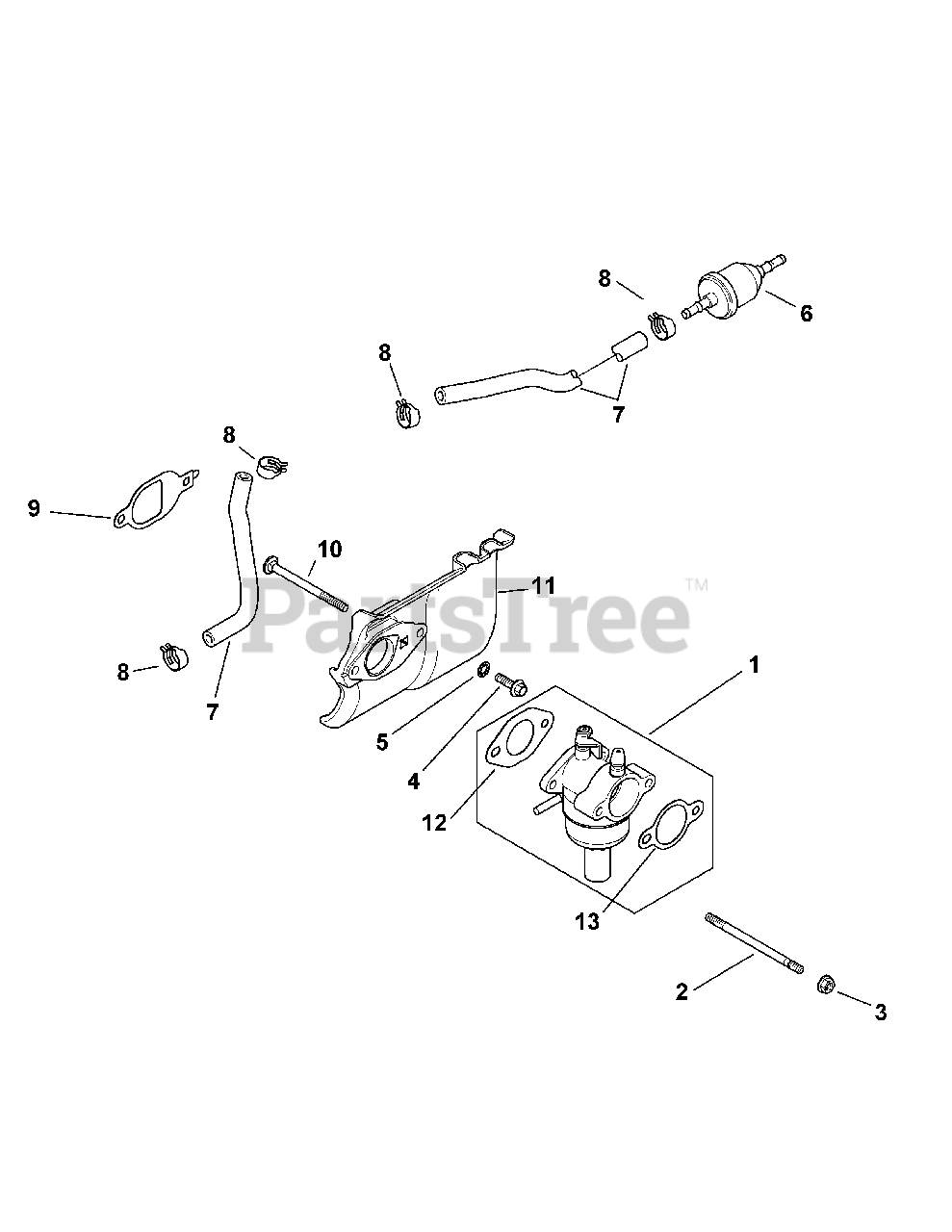

Kohler SV590-3220 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-20-853-95-S

Carburetor Kit (Inc. 12 & 13)

$

$

Not available

2

Cub Cadet KH-20-072-05-S

Stud, M6 X 1.0 X 100
(Superseded to KH-20-072-10-S)

$4.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-M-641060-S

Flange Nut, M6 X 1.0

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-M-651020-S

Flange Screw, M6 X 1.0 X 20

$2.49

$

In Stock, Qty 6

0

5

Cub Cadet KH-X-22-11

Int. Tooth Lock Washer, 1/4

$

$

Not available

6

Cub Cadet KH-25-050-21-S

Fuel Filter

$8.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-111-81-S

Fuel Line

$17.99

$

In Stock, only 4 left!

0

8

Cub Cadet KH-25-237-31-S

Hose Clamp, 1/2

$4.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-20-041-18-S

Heat Deflector Gasket

$6.99

$

In Stock, Qty 13

0

10

Cub Cadet KH-20-072-07-S

Carburetor Stud
(Superseded to KH-20-072-09-S)

$2.99

$

In Stock, Qty 9

0

11

Cub Cadet KH-20-265-09-S

Heat Deflector Kit

$29.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-041-01

Carburetor Gasket

$2.49

$

In Stock, Qty 14

0

13

Cub Cadet KH-12-041-02

Air Cleaner Base Gasket

$2.99

$

In Stock, Qty 5

0

Cub Cadet KH-25-454-05-S

Tie

Note: (not shown)

$2.49

$

In Stock, only 2 left!

0
