LTH 2042 (954571953-B) - Husqvarna 42" Lawn Tractor (2004-01) Engine Parts Diagram

42" Lawn Tractor

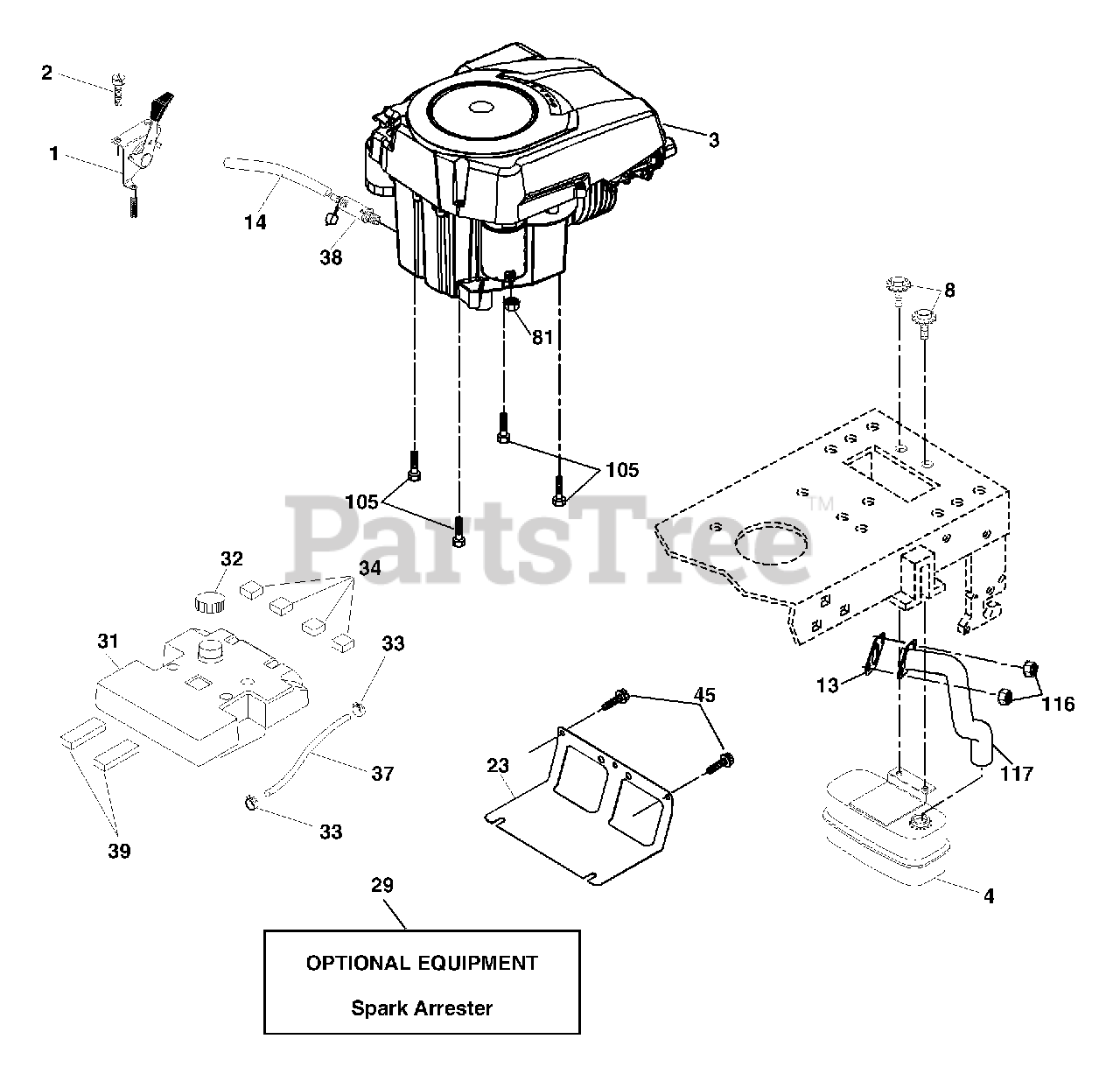

Engine Parts Diagram

  • Title

1

Husqvarna 532170805

Control Throttle/Choke Flag

$

$

Not available

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine, Kohler SV600

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532188655

Muffler

$45.99

$

In Stock, only 2 left!

0

8

Husqvarna 532171877

Bolt 5/16-18 unc x 3/4

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 532185909

Gasket Eng

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

23

Husqvarna 532169837

Shield Brn/Dbr Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532157103

Tank Fuel

$

$

Not available

32

Husqvarna 532161696

Cap Asm Fuel

$

$

Not available

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 532106082

Pod Spacer 1 x 1 x 1

$

$

Not available

37

Husqvarna 532142158

Line Fuel 64"
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

39

Husqvarna 532109227

Pod Spacer 1.75 x .75 x .06

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

45

Husqvarna 817000612

Screw Hex wsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 19

0

116

Husqvarna 532184362

Nut Hex Flange Toplock M8-1.25

$6.49

$

In Stock, only 3 left!

0

117

Husqvarna 532188654

Tube Exhaust
(Superseded to 583955301)

$34.99

$

In Stock, only 2 left!

0
