LTH 2042 (954571953-A) - Husqvarna 42" Lawn Tractor (2003-12) Drive Parts Diagram

42" Lawn Tractor

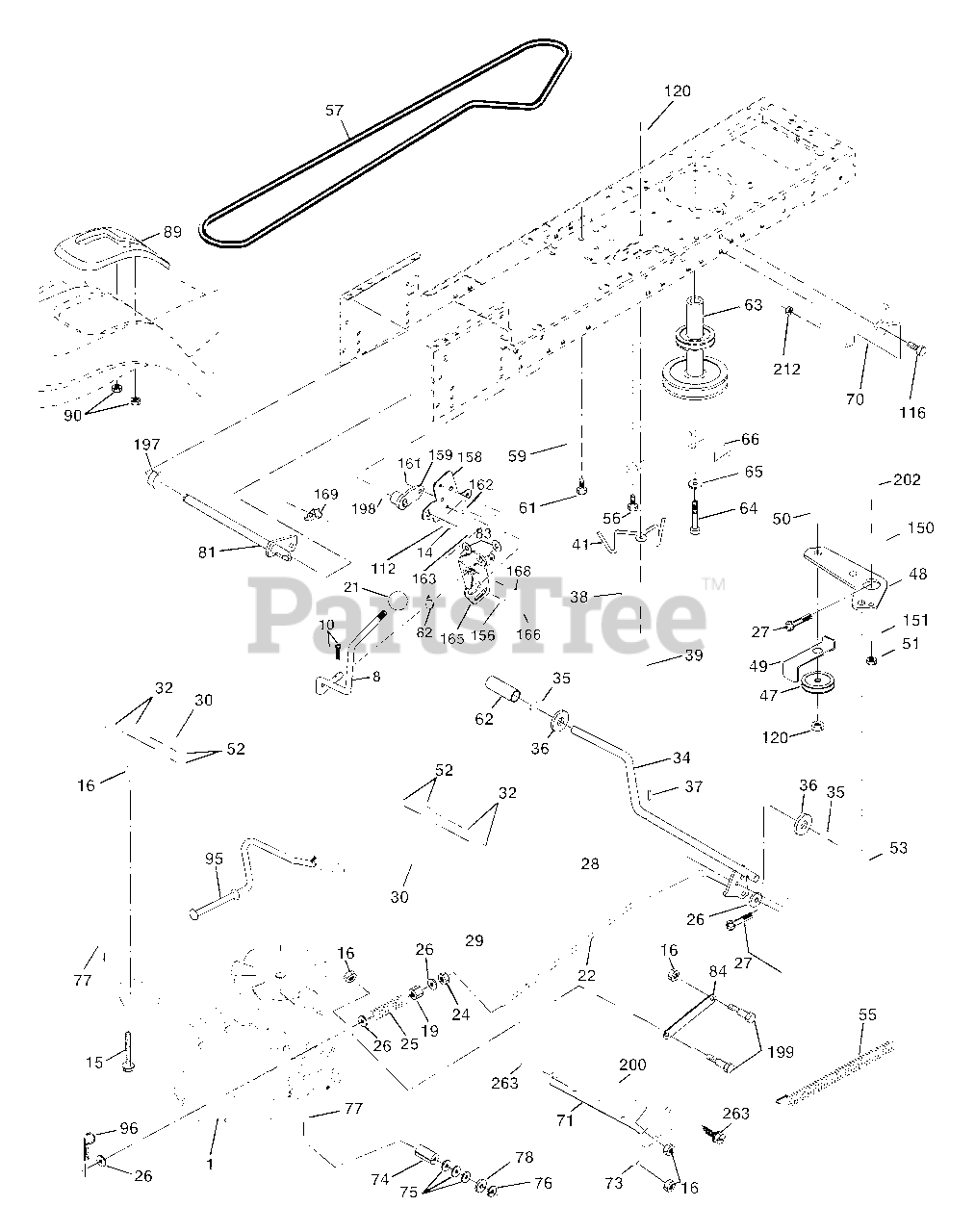

Drive Parts Diagram

  • Title

1

Transaxle Hydro Gr Model 314-0510

Note: (Order parts from transaxle mfg.)

$

$

Not available

8

Husqvarna 532165866

Rod Shift Fender

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 x 1 CAD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 874490544

Bolt Hex Flg Hd 5/16-18 x Gr.5

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

Nut Lock Hex W/Ins. 5/16-18 unc

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut Lock Hex W/Wsh 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532140845

Knob, Deluxe

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532169498

Rod, Brake Hydro

$20.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 819131316

Washer
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532175765

Rod, Parking Brake

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532071673

Cap, Parking Brake

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532169592

Bracket, Transaxle

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

Bolt Hex Hd 5/16-18 unc x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532175578

Shaft, Foot Pedal

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819211616

Washer

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532179114

Pulley, Composite

$31.99

$

Usually ships in 3-10 days

0

39

Husqvarna 872110622

Bolt

$4.99

$

In Stock, Qty 10

0

41

Husqvarna 532175556

Keeper, Belt Idler

$9.99

$

In Stock, only 1 left!

0

47

Husqvarna 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

48

Husqvarna 532154407

Bellcrank Clutch Grnd Drv Stl

$8.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

Bolt

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 2 left!

0

56

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

57

Husqvarna 532140294

V-Belt, Ground Drive

$39.99

$

In Stock, only 3 left!

0

59

Husqvarna 532169691

Keeper, Center Span

$26.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817120614

Screw 3/8-16 x .875
(Superseded to 817490614)

$

$

Not available

62

Husqvarna 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

63

Husqvarna 532175410

Pulley, Clutch Eng

$87.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 Ga. 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

Washer
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532154778

Keeper Belt Engine

$12.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532134683

Guide Belt Mower Drive RH

$

$

Not available

71

Husqvarna 532169183

Strap Torque Lh Hydro

$7.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532169182

Strap Torque Rh Hydro

$17.99

$

In Stock, only 1 left!

0

74

Husqvarna 532137057

Spacer, Axle

$7.49

$

In Stock, only 3 left!

0

75

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, Qty 7

0

78

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532165596

Shaft Asm. Cross Hydro

$40.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532165711

Spring Torsion T/A

$7.49

$

In Stock, only 1 left!

0

83

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

84

Husqvarna 532169594

Link Transaxle

$

$

Not available

89

Husqvarna 532166510

Console, Shift
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

Nut 1/4

$7.99

$

In Stock, only 1 left!

0

95

Husqvarna 532170201

Control Asm Bypass Hydro

$12.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

116

Husqvarna 872140608

Boulon 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

120

Husqvarna 873900600

Nut Lock Flg 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Husqvarna 532175456

Spacer Retainer

$

$

Not available

151

Husqvarna 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

156

Husqvarna 532166002

Washer Srrtd 5/16 ID x 1.0 x .125 Tk

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532183900

Hub Shift
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

Nut Crownlock 1/4-20 unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

163

Husqvarna 874780416

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Husqvarna 817490510

Screw 5/16-18 x 5/8 TT Yellow

$4.99

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

Bolt Shoulder 5/16-18 x .561 TT

$10.99

$

In Stock, only 3 left!

0

169

Husqvarna 532165580

Plate Fastening Cross Shf. STLT/CRD

$6.99

$

Usually ships in 3-10 days

0

197

Husqvarna 532169613

Nyliner Snap-In 5/8" ID

$7.49

$

In Stock, Qty 6

0

198

Husqvarna 532169593

Washer Nyl. 7/8 ID x .105"

$11.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532169612

Bolt Shoulder 5/16-18 unc
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

200

Husqvarna 872140508

Bolt Rdhd Sq Neck 5/16-18 unc x 1

$2.99

$

Usually ships in 3-10 days

0

202

Husqvarna 872110614

Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

212

Husqvarna 532145212

Nut Hex Flg Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

263

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0
