LTH 2038 (960410171-00) - Husqvarna 38" Lawn Tractor (2010-02) MOWER LIFT / DECK LIFT Parts Diagram

38" Lawn Tractor

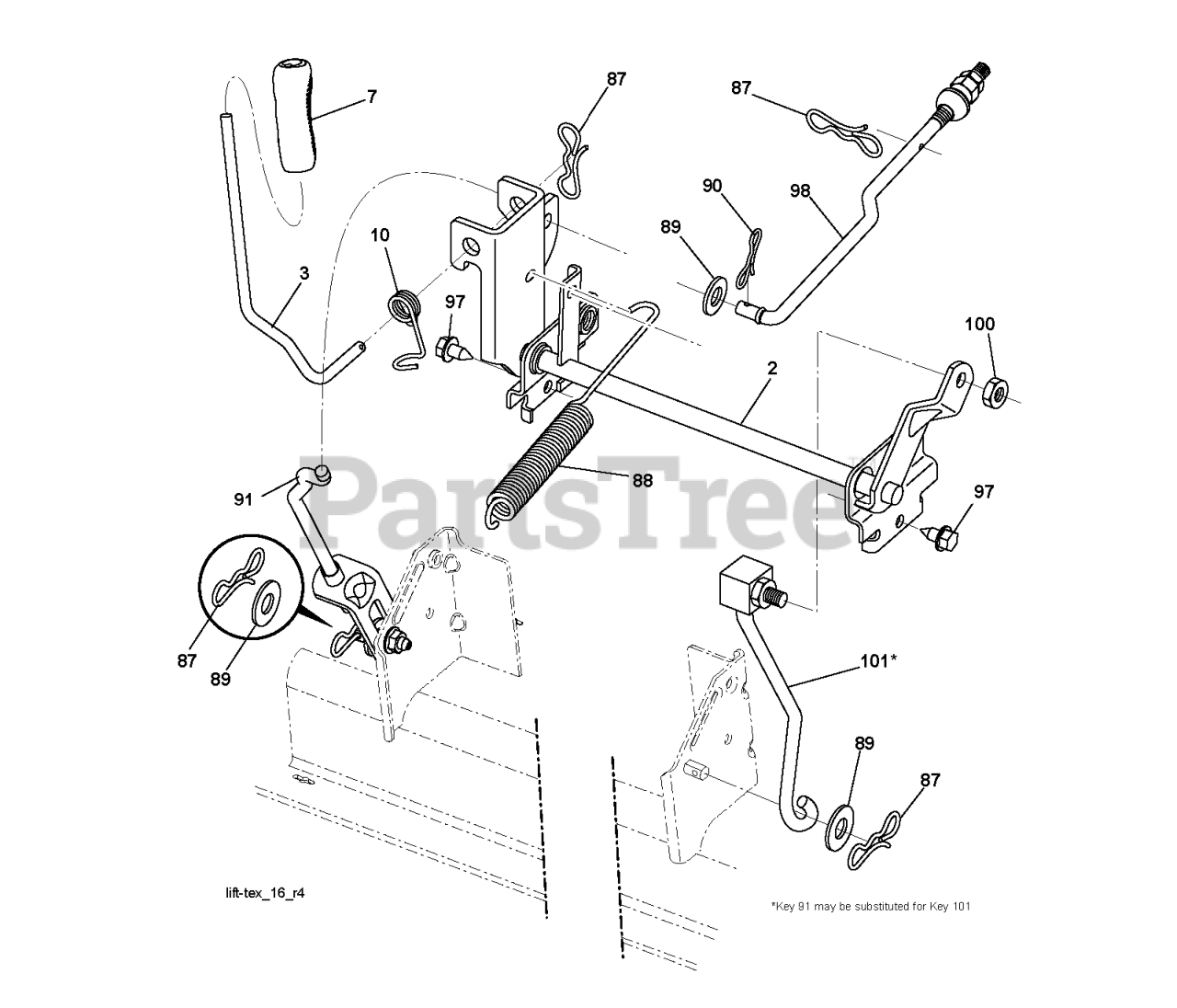

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
97

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532411555

GRIP.HANDLE.LIFT.PVC.BLACK

$9.49

$

In Stock, only 1 left!

0

2

Husqvarna 532422027

SHAFT.ASM.CROSS.LIFT

$80.99

$

In Stock, only 1 left!

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

98

Husqvarna 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, Qty 9

0

101

Husqvarna 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

In Stock, only 1 left!

0

100

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532195231

LEVER.LIFT.HANDLE.LT

$

$

Not available

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

91

Husqvarna 532195181

LINK.ASM.LIFT.REAR

$

$

Not available

88

Husqvarna 532410710

SPRING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0
