LTH 19530 (960410169-03) - Husqvarna 30" Lawn Tractor (2011-06) DRIVE Parts Diagram

30" Lawn Tractor

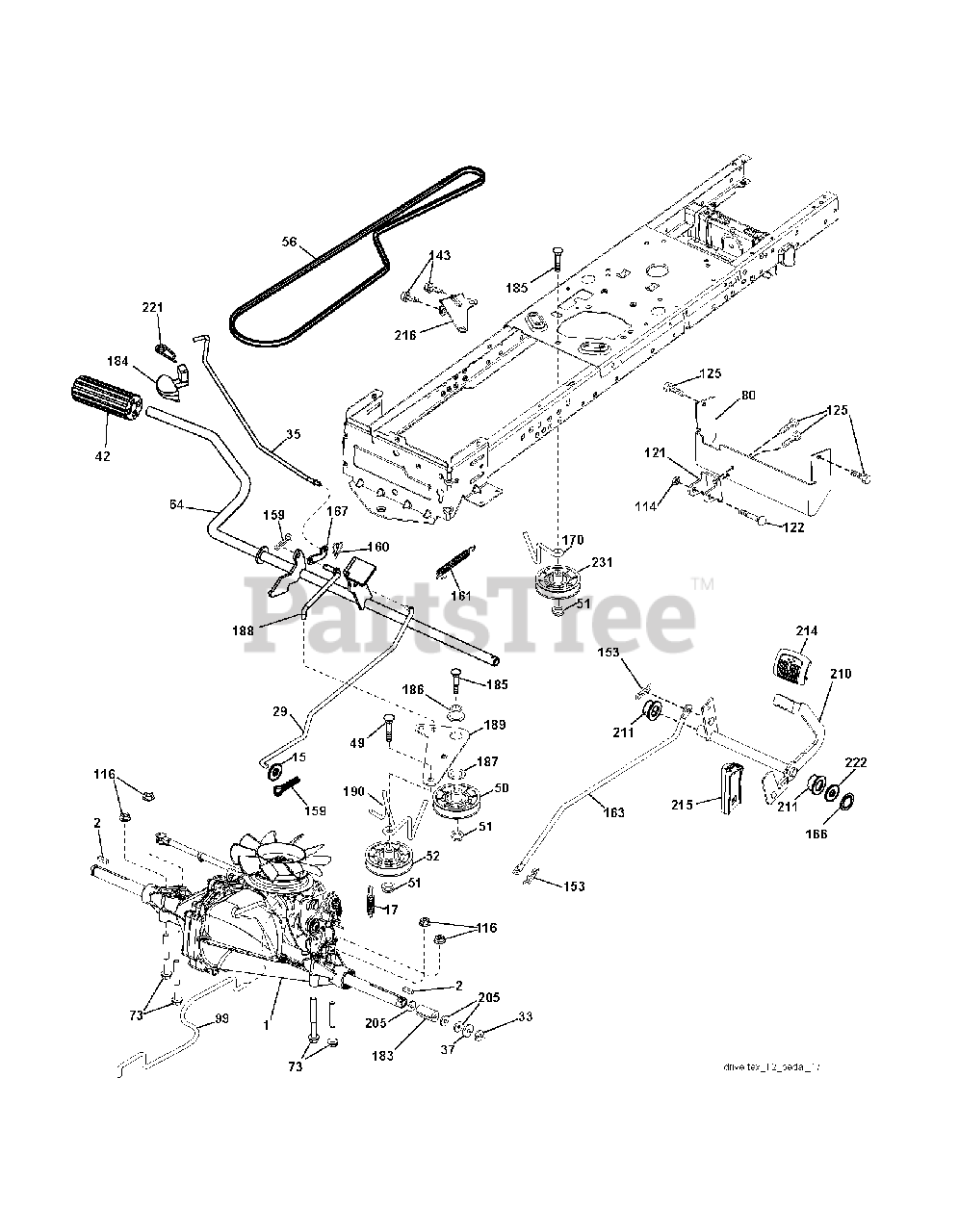

DRIVE Parts Diagram

  • Title
1

000000000

Note: TRANSAXLE HYDRO T2-BABC-1X2B-1GX1 (421645)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, only 1 left!

0

29

Husqvarna 532423239

ROD.BRAKE.T2.TEX

$45.99

$

In Stock, only 2 left!

0

33

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX

$18.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 11

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

$39.99

$

In Stock, Qty 9

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532408393

RP.STRAP.TORQUE.FS.T2
(Superseded to 581550701)

$26.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532408418

ROD.ASM.BYPASS.SPRING.T2.FS

$9.99

$

Usually ships in 3-10 days

0

114

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

121

Husqvarna 532175611

BRACKET STRAP TORQUE

$7.99

$

Usually ships in 3-10 days

0

122

Husqvarna 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 2 left!

0

163

Husqvarna 532413322

ROD.CONTROL.PCH.T2.TEX

$30.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

In Stock, only 1 left!

0

183

Husqvarna 532156972

SPACER, AXLE PVST

$6.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532411484)

$66.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 10

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

205

$4.99

$

In Stock, Qty 20+

0

210

Husqvarna 532400980

ROCKER.ASM.PEDAL.CONTR

$37.99

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Husqvarna 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

231

Husqvarna 532407287

IDLER.V-GROOVE.1.688.OFFSET

$22.99

$

In Stock, only 1 left!

0
