LTH 18542 (954571731-C) - Husqvarna 42" Lawn Tractor (2004-08) Electrical Parts Diagram

42" Lawn Tractor

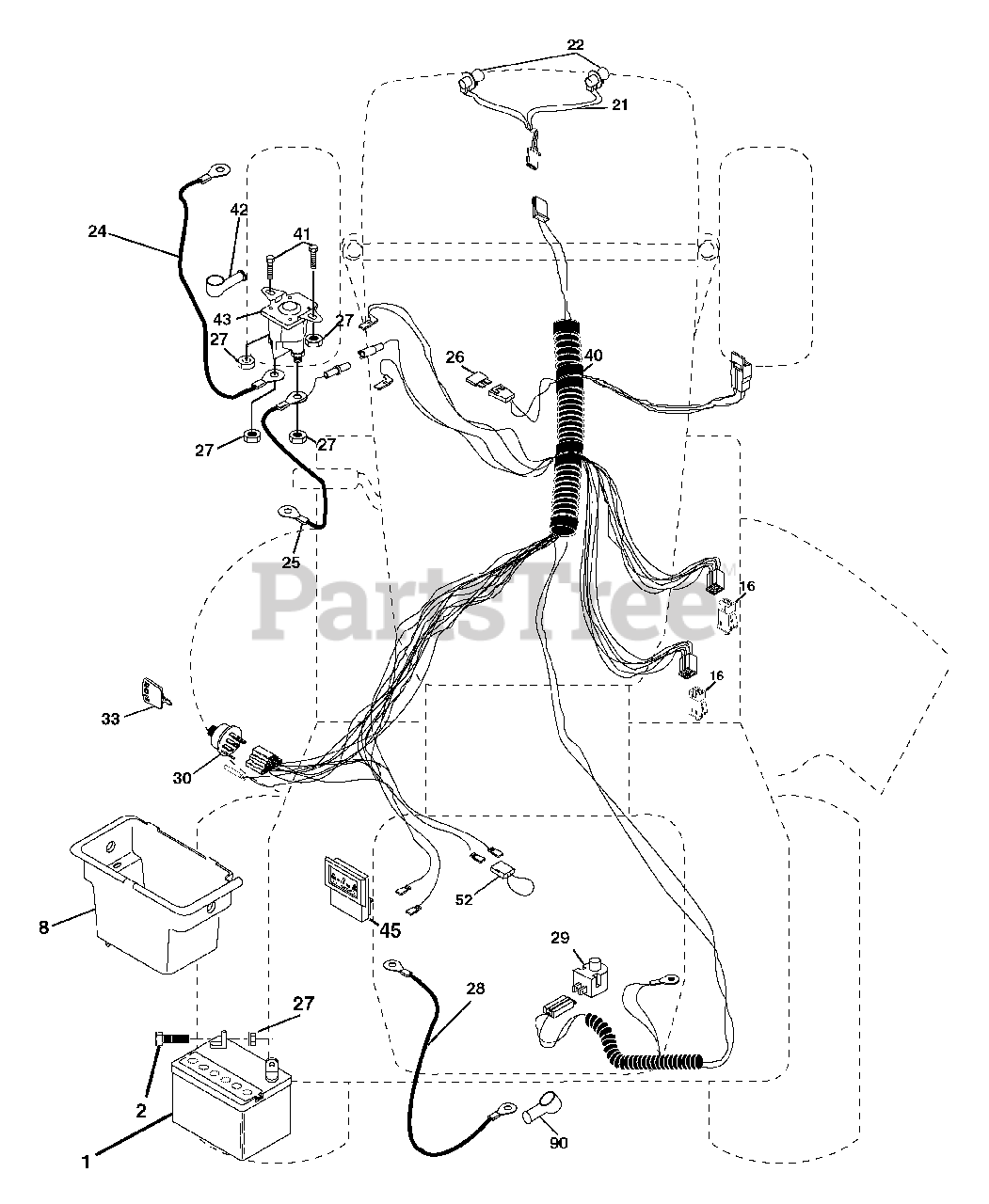

Electrical Parts Diagram

  • Title
1

Husqvarna 532163465

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532176689

Box Battery

$

$

Not available

16

Husqvarna 532176137

Switch Interlock

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532175688

Harness Asm Light W/4152j

$44.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

Cable Battery 6 Ga. 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146147

Cable Battery 6 Ga. 44" red w/16 wire

$34.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

28

Husqvarna 532124773

Cable Ground 6 Ga. 12" black
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

Switch Plunger Olive
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Husqvarna 532175566

Switch Ign Delta

$26.99

$

In Stock, Qty 7

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.99

$

In Stock, Qty 9

0

40

Husqvarna 532179720

Harness Ign.

$120.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

45

Husqvarna 532121433

Ammeter Rectangular
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

52

Husqvarna 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

90

Husqvarna 532180449

Cover Terminal Battery
(Superseded to 532435395)

$6.49

$

In Stock, only 2 left!

0
