LTH 18542 (954571731-A) - Husqvarna 42" Lawn Tractor (2003-11) Engine Parts Diagram

42" Lawn Tractor

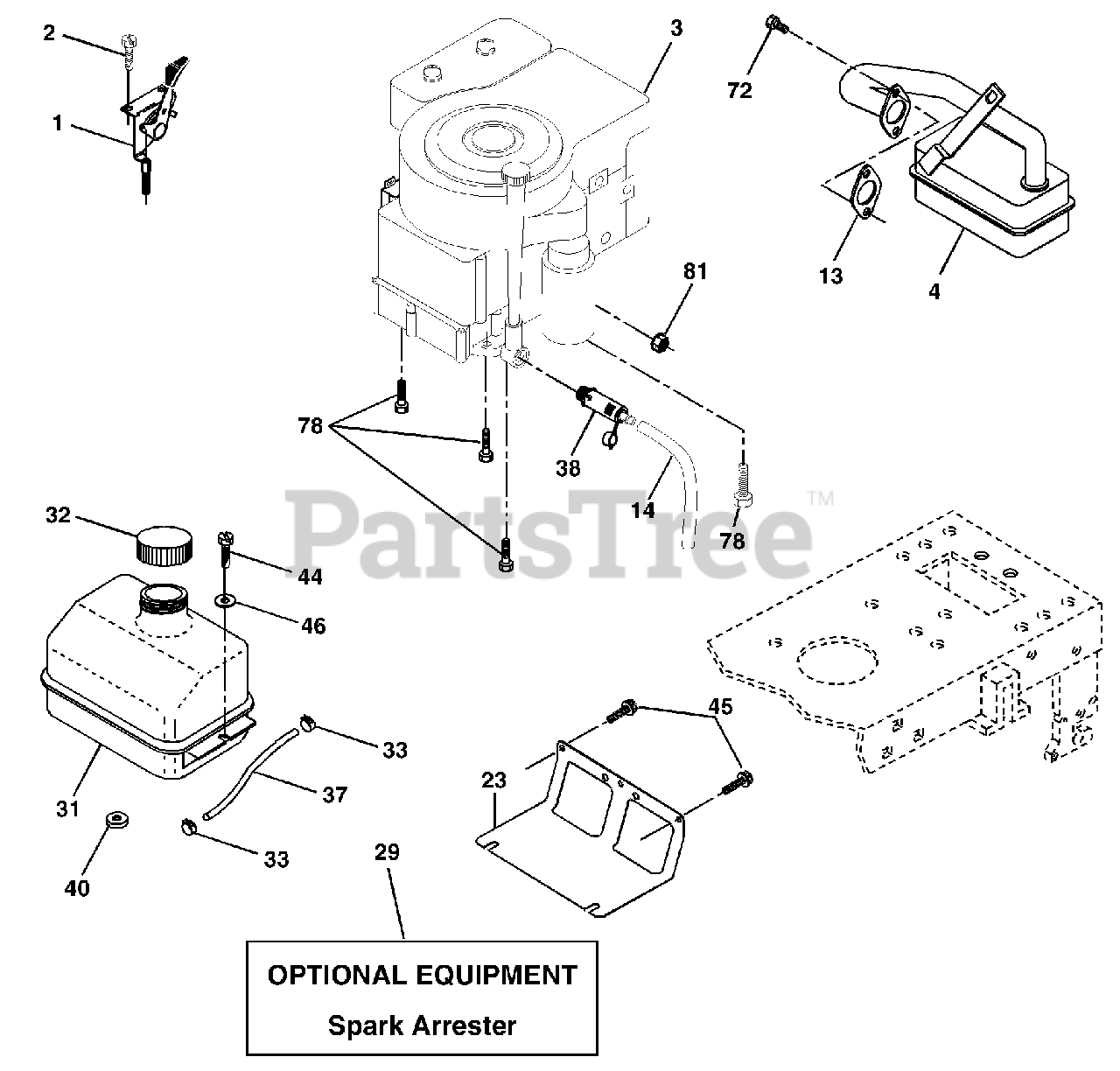

Engine Parts Diagram

  • Title

1

Husqvarna 532170551

Control Th/ch Flag

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine, B&S 31Q777

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532137352

Muffler

$45.99

$

In Stock, only 3 left!

0

13

Husqvarna 532165291

Gasket Eng
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 3 left!

0

23

Husqvarna 532169837

Shield Brn/Dbr Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532185534

Tank Fuel Front
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532137040

Line Fuel 20"
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Husqvarna 532181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

40

Husqvarna 532124028

Bushing Snap Nyl Blk Fuel Line

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 817670412

Screw Hexwsh Thdrol 1/4-20 x 3/4

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532183906

Screw Socket Head 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

78

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0
