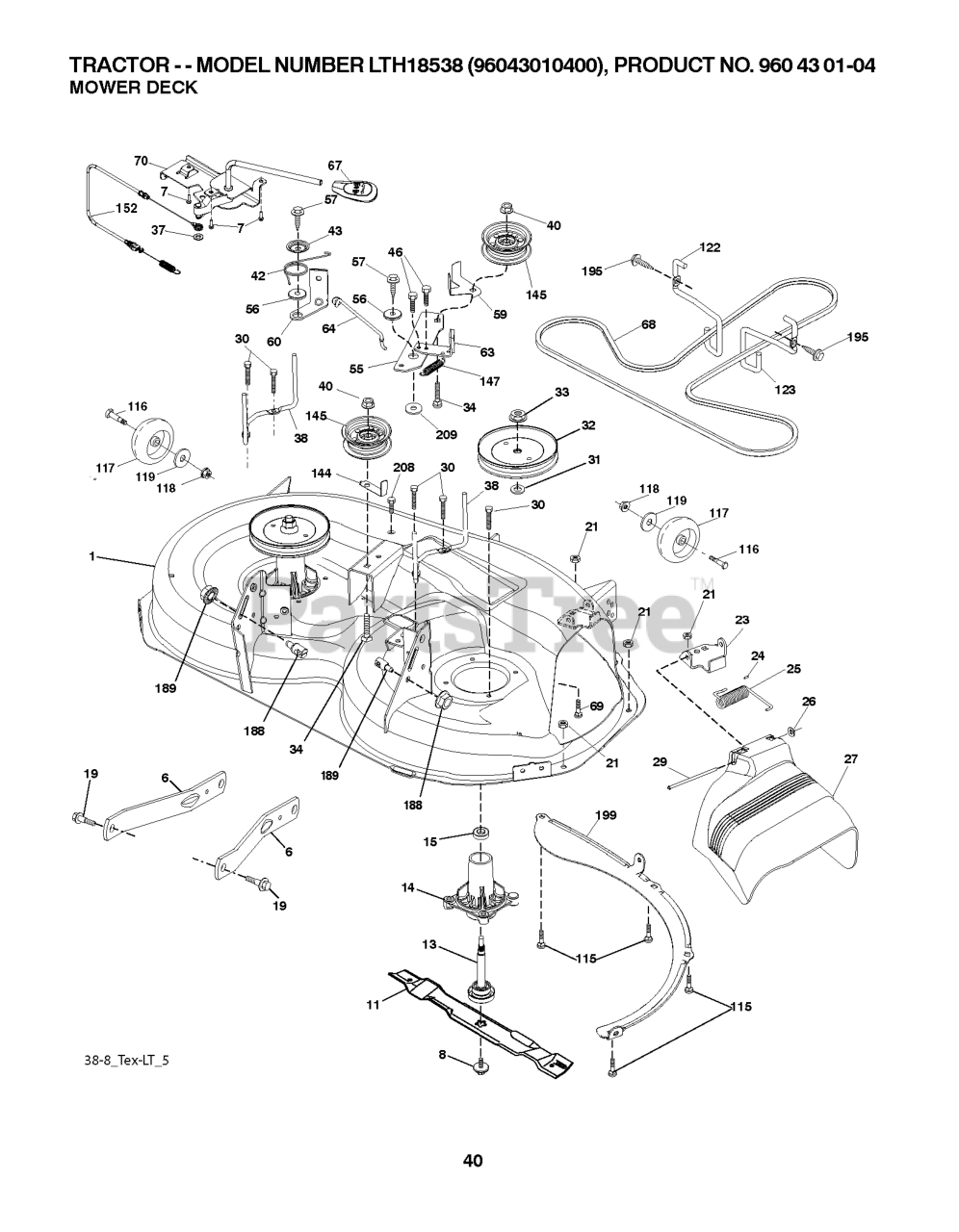

LTH 18538 (960430104-00) - Husqvarna 38" Lawn Tractor (2009-11) MOWER DECK / CUTTING DECK Parts Diagram

38" Lawn Tractor

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

115

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532199541

KEEPER BELT LH MANDREL
(Superseded to 532400140)

$53.99

$

In Stock, only 1 left!

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532193968

SHIELD, DEFLECTOR
(Superseded to 532192572)

$80.99

$

In Stock, only 1 left!

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

63

Husqvarna 532199470

RP ARM.BRAKE.MOWER.38"LH.TEX
(Superseded to 532400130)

Note: RH

$18.99

$

In Stock, only 2 left!

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532411483

MOWER HOUSING
(Superseded to 532410715)

$399.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532400095

BAFFLE.VORTEX.FRONT.38"

$18.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

32

Husqvarna 532199789

PULLEY.MANDREL.5.0.PD.38"

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

11

Husqvarna 532138497

BLADE.HI.LIFT.38"

$26.99

$

In Stock, Qty 6

0

68

Husqvarna 532408381

V-BELT

$60.99

$

In Stock, only 1 left!

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 7

0

70

Husqvarna 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

209

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

11

Husqvarna 532193957

BLADE 38" PREMIUM
(Superseded to 581116302)

$17.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 10

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

147

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

7

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

60

Husqvarna 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532400132)

Note: LH

$17.99

$

In Stock, only 3 left!

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

64

Husqvarna 532199918

LINKAGE.BRAKE.ASM.ZINC

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: "Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)"

$56.99

$

In Stock, Qty 20+

0

144

Husqvarna 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

123

Husqvarna 532197259

KEEPER BELT RH

Note: RH

$

$

Not available

55

Husqvarna 532197249

IDLER.ARM

$

$

Not available

117

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

Husqvarna 532410716

DECK ASM SVC 38"3N1.2GWB.GREY

Note: NOT SHOWN

$854.99

$

Usually ships in 3-10 days

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 6

0

152

Husqvarna 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 2 left!

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$
