LTH 1842 (960410412-00) - Husqvarna 42" Lawn Tractor (2017-08) MOWER DECK / CUTTING DECK Parts Diagram

42" Lawn Tractor

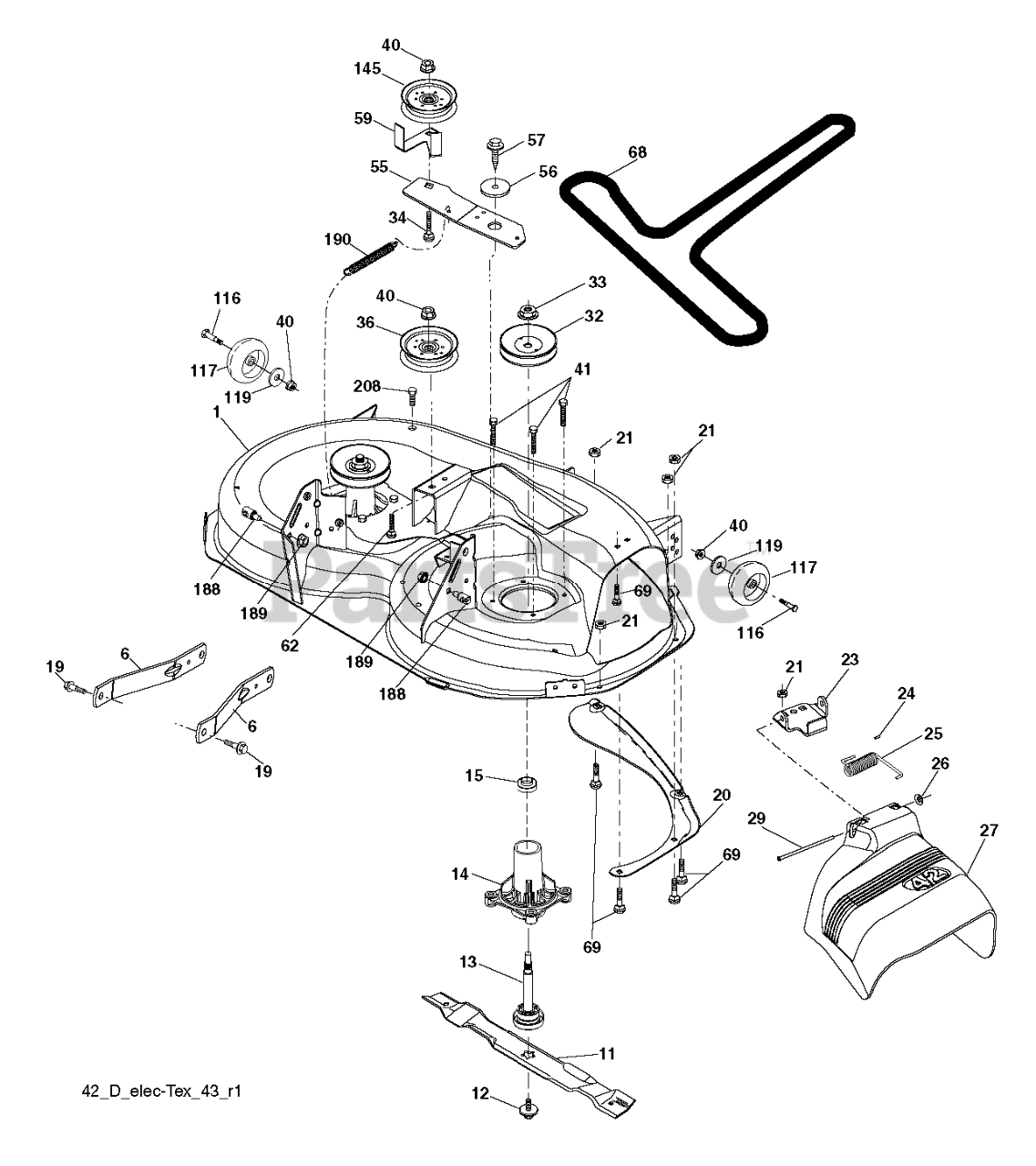

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

116

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

190

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 2 left!

0

1

Husqvarna 532196495

DECK.WELDMENT.42"
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532437110

IDLER.ARM.42"

$

$

Not available

117

Husqvarna 589527401

WHEEL.GAUGE.RALLY.NARROW

$11.99

$

In Stock, Qty 10

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532199750

CUTTING DECK
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

62

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, only 4 left!

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0
