LTH 1842 (960410048-00) - Husqvarna 42" Lawn Tractor (2006) MOWER LIFT / DECK LIFT Parts Diagram

42" Lawn Tractor

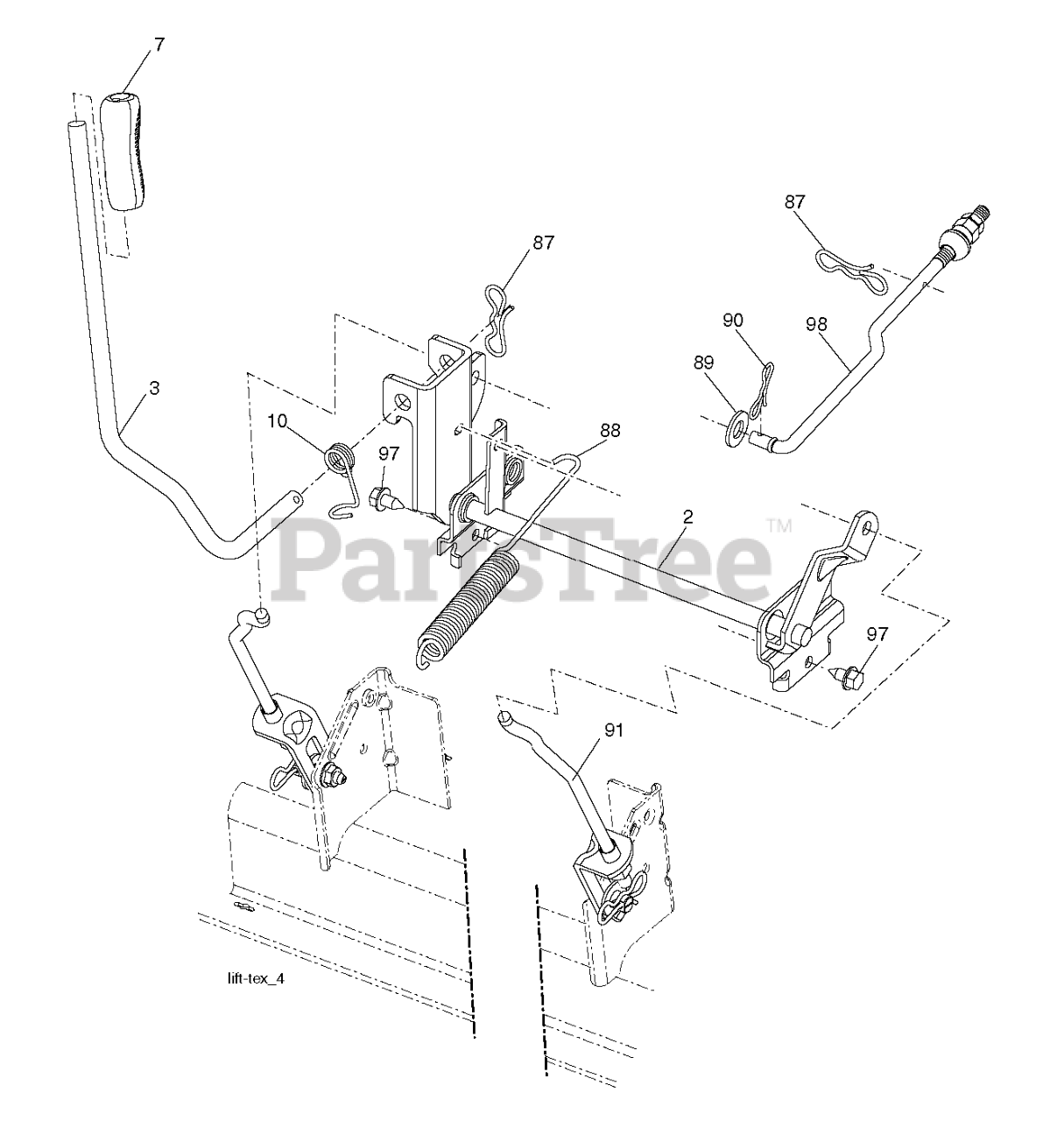

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
98

Husqvarna 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, only 4 left!

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

91

Husqvarna 532195181

LINK.ASM.LIFT.REAR

$

$

Not available

88

Husqvarna 532195303

SPRING.LIFT.ASSIST.LT
(Superseded to 532410710)

$11.99

$

In Stock, Qty 6

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 11

0

2

Husqvarna 532195223

SHAFT.ASM.LIFT.CROSS.H
(Superseded to 532422027)

$80.99

$

In Stock, only 1 left!

0

7

Husqvarna 532196492

GRIP.LEVER.5625.ID
(Superseded to 532411555)

$9.49

$

Usually ships in 3-10 days

0

97

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 11

0

3

Husqvarna 532195231

LEVER.LIFT.HANDLE.LT

$

$

Not available
