LTH 18 - Jonsered Lawn Tractor (1998-02) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

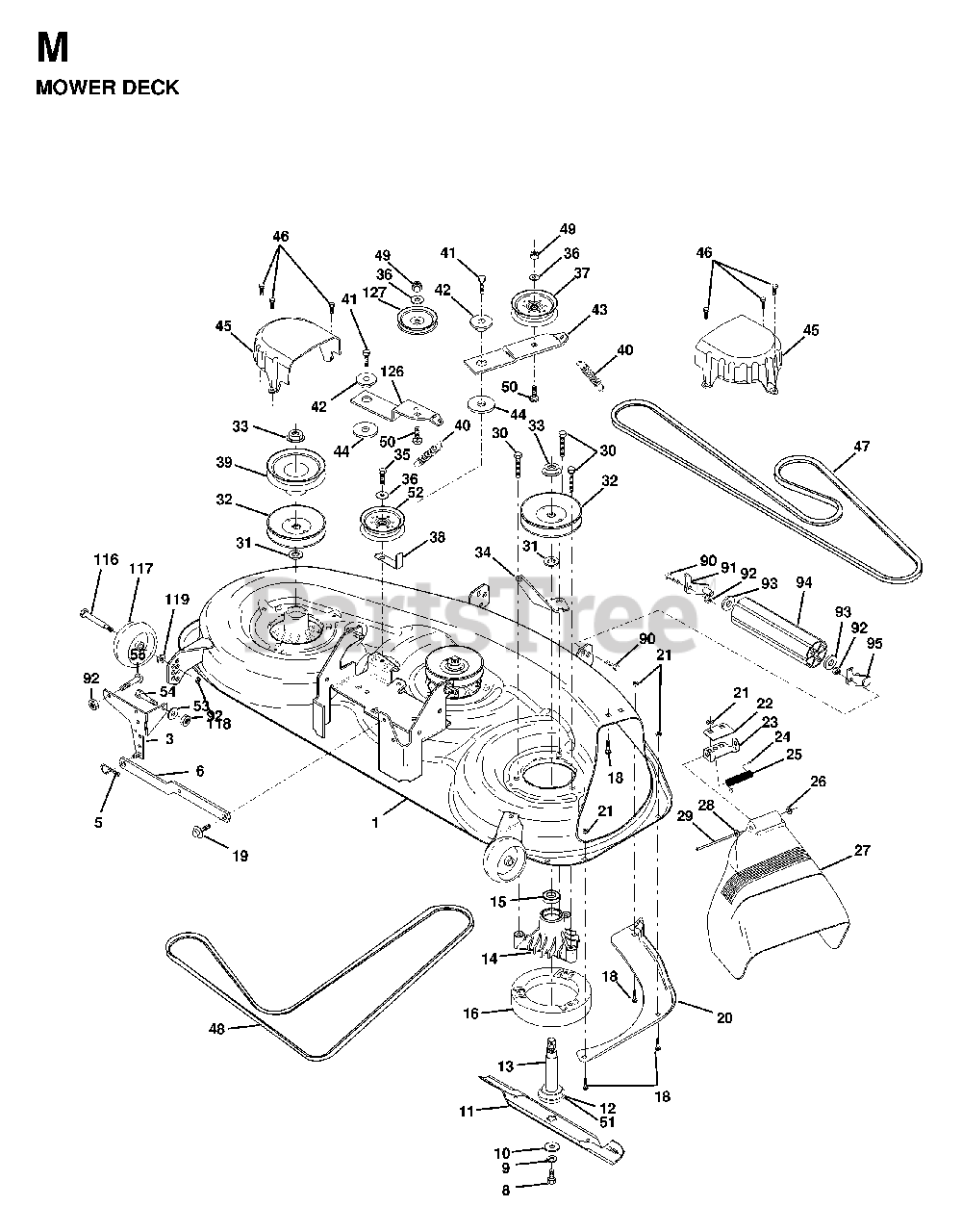

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532153125

HOUSING MOWER
(Superseded to 532164210)

$

$

Not available

3

Jonsered 532138457

BRACKET SWAY BAR
(Superseded to 138457)

$11.99

$

Usually ships in 3-10 days

0

5

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Jonsered 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Jonsered 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

11

Jonsered 532144767

BLADE 46"
(Superseded to 532157353)

$27.99

$

In Stock, only 3 left!

0

12

Jonsered 532129895

BEARING
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Jonsered 532137553

SHAFT.ASM.W/BEARING

$37.99

$

In Stock, only 1 left!

0

14

Jonsered 532137152

HOUSING.MANDREL

$40.99

$

In Stock, only 1 left!

0

15

$13.99

$

In Stock, Qty 14

0

16

Jonsered 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Jonsered 532145055

BAFFLE, VORTEX MOWER 46"

$9.99

$

Usually ships in 3-10 days

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

23

Jonsered 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$

$

Not available

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532145325

SHIELD, DEFLECTOR MOWER
(Superseded to 532157788)

$

$

Not available

28

Jonsered 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532138776

SCREW
(Superseded to 532157722)

$4.99

$

In Stock, Qty 20+

0

31

Jonsered 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Jonsered 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Jonsered 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Jonsered 532144945

ANCHOR, SPRING DECK 46"

$

$

Not available

35

Jonsered 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

36

$4.99

$

In Stock, Qty 5

0

37

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

38

Jonsered 532137554

KEEPER
(Superseded to 532156085)

$

$

Not available

39

Jonsered 532144917

PULLEY.DRIVEN.DECK.46"

$31.99

$

In Stock, only 1 left!

0

40

Jonsered 532137273

SPRING.SEC.44"VEN

$7.99

$

In Stock, Qty 5

0

41

Jonsered 817490620

SCREW
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

42

Jonsered 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

43

Jonsered 532144949

ARM IDLER DECK 46"

$

$

Not available

44

Jonsered 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

45

Jonsered 532145059

COVER MANDREL 46

$

$

Not available

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

47

Jonsered 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

48

Jonsered 532148763

V-BELT PRIMARY 50"
(Superseded to 531300769)

$

$

Not available

49

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

50

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Jonsered 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

52

Jonsered 532155191

PULLEY IDLER FLAT 46 PRI DRIVE
(Superseded to 532173438)

$

$

Not available

53

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

$6.49

$

Usually ships in 3-10 days

0

55

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

90

Jonsered 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Jonsered 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

92

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

$4.99

$

In Stock, Qty 8

0

94

Jonsered 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

95

Jonsered 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

$

$

Not available

117

$

$

Not available

118

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

126

Jonsered 532144948

ARM IDLER PRIM 46

$

$

Not available

127

Jonsered 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

--

Jonsered 532150539

No Description Available

$

$

Not available

--

Jonsered 532143651

MANDREL SERV ASM 44/50

$102.99

$

In Stock, only 4 left!

0
