LTH 18 (954130005) - Jonsered Lawn Tractor (1997-04) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

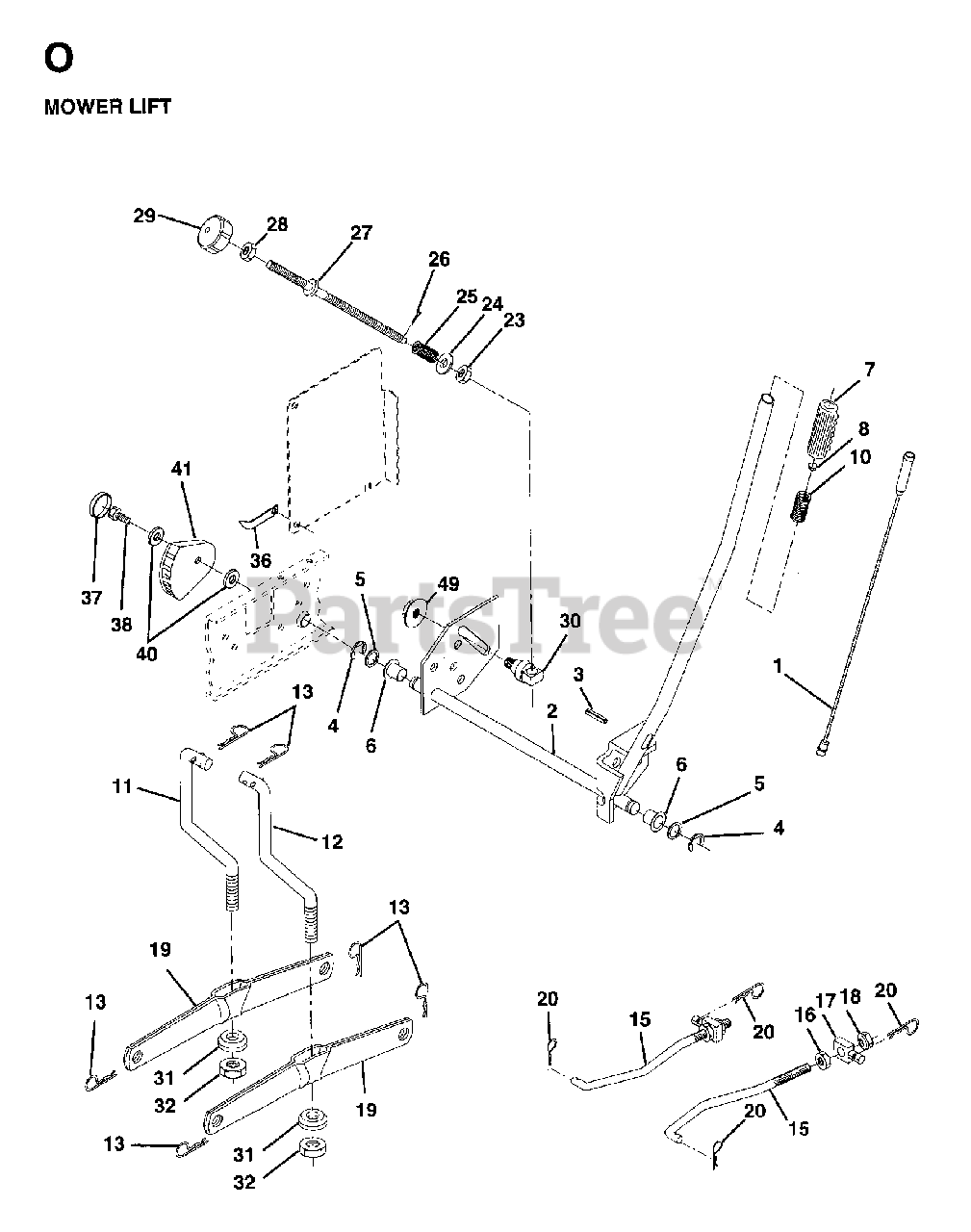

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
1

Jonsered 532136973

WIRE, INNER HANDLE

$

$

Not available

2

Jonsered 532145117

SHAFT ARM LIFT RH

$

$

Not available

3

Jonsered 532105767

PIN GROOVE

$6.49

$

In Stock, only 3 left!

0

4

Jonsered 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

7

Jonsered 532109413

GRIP
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Jonsered 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

10

Jonsered 532122512

SPRING, COMP T

$9.49

$

Usually ships in 3-10 days

0

11

Jonsered 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Jonsered 532139866

LINK LIFT RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Jonsered 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

15

Jonsered 532127218

FRONT LINK

$17.99

$

In Stock, only 4 left!

0

16

Jonsered 873350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

17

Jonsered 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Jonsered 873800800

NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Jonsered 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

20

Jonsered 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

$

$

Not available

24

$6.49

$

In Stock, Qty 5

0

25

Jonsered 532124874

SPRING**
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 876020308

COTTER PIN
(Superseded to 532003145)

$

$

Not available

27

Jonsered 532126971

ROD ADJ LIFT

$

$

Not available

28

Jonsered 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Jonsered 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

30

$12.99

$

Usually ships in 3-10 days

0

31

Jonsered 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

32

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

36

Jonsered 532155097

POINTER, HEIGHT INDICATOR

$

$

Not available

37

Jonsered 532123935

PLUG,HOLE

$5.99

$

Usually ships in 3-10 days

0

38

Jonsered 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

40

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 532155098

IND. HEIGHT STLT

$6.49

$

Usually ships in 3-10 days

0

49

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0
