LTH 17538 (960430298-00) - Husqvarna 38" Lawn Tractor (2018-08) MOWER LIFT / DECK LIFT Parts Diagram

38" Lawn Tractor

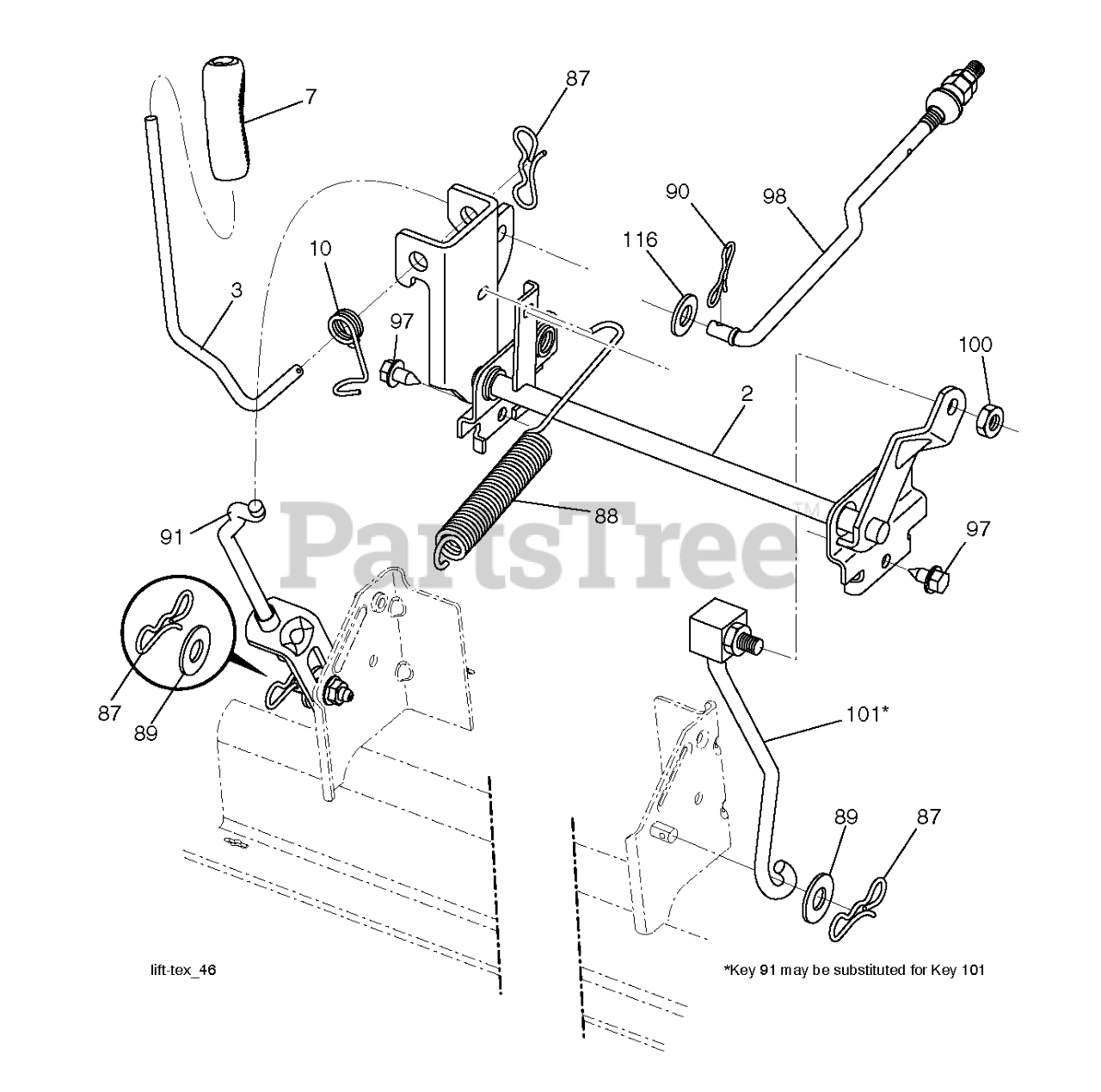

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

91

Husqvarna 589464803

LINK ASSY LIFT.REAR 10.278

Note: LH

$

$

Not available

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

97

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

116

Husqvarna 819151516

WASHER

$

$

Not available

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 7

0

98

Husqvarna 581506903

Links

$11.99

$

In Stock, Qty 11

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 594018001

Levers

Note: RH

$20.99

$

In Stock, only 1 left!

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 10

0

2

Husqvarna 532422027

SHAFT.ASM.CROSS.LIFT

Note: Lift

$80.99

$

Usually ships in 3-10 days

0

100

Husqvarna 595305901

Nuts

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.49

$

In Stock, only 2 left!

0

88

Husqvarna 532410710

SPRING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

101

Husqvarna 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

In Stock, only 1 left!

0
