LTH 1742 (954170224-D) - Husqvarna 42" Lawn Tractor (2006-03) MOWER LIFT / DECK LIFT Parts Diagram

42" Lawn Tractor

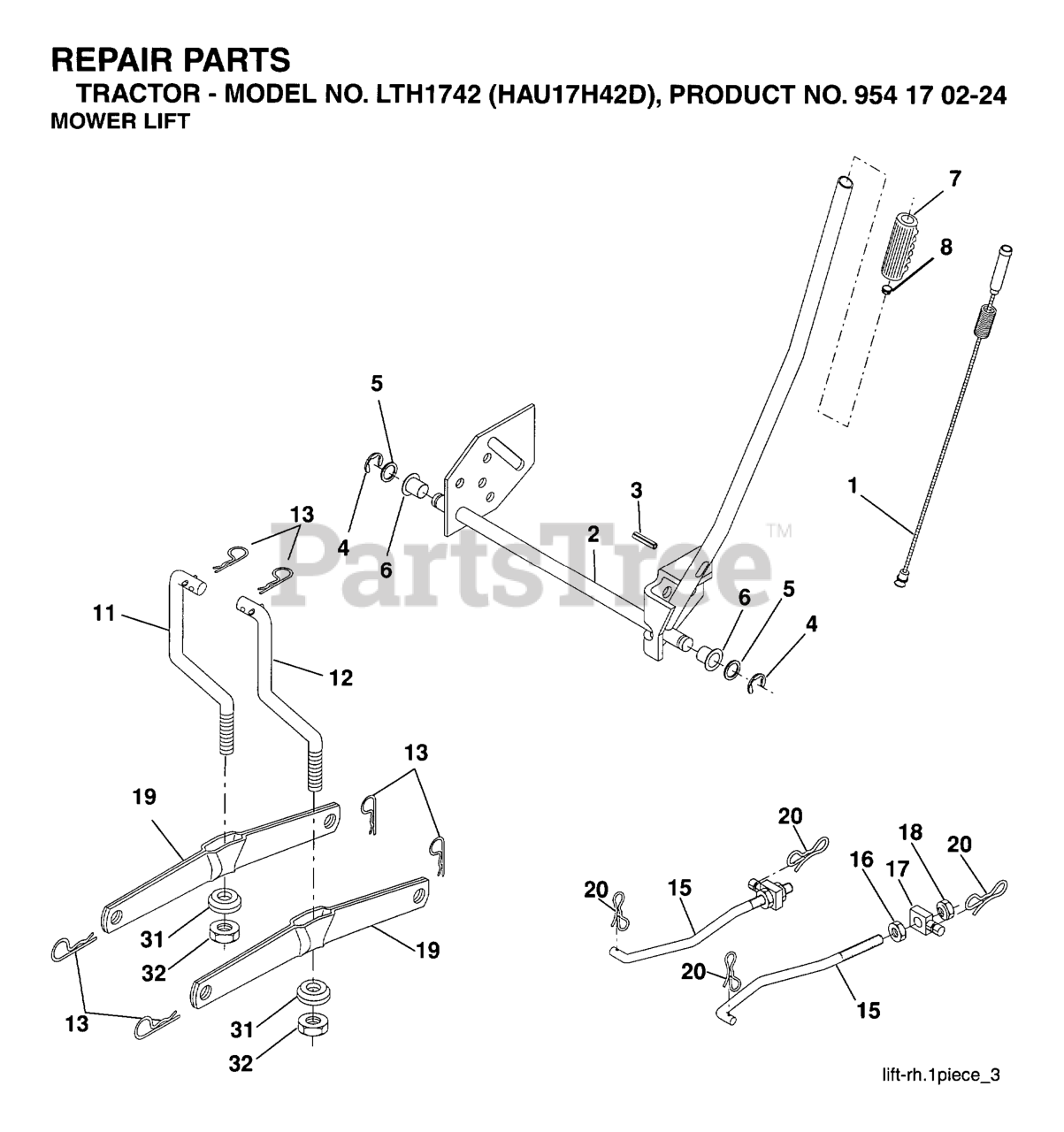

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 532173288

LINK.SUSPENSION.FRONT

$13.99

$

In Stock, only 3 left!

0

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 819211621

WASHER

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532175689

TRUNNION

$

$

Not available

31

Husqvarna 532169865

BEARING.PIVOT.LIFT

$

$

Not available

20

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 7

0

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

2

Husqvarna 532159471

SHAFT ASM R HANDLE

$54.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0
