LTH 171 (960410202-00) - Husqvarna Lawn Tractor (2010-10) SEAT Parts Diagram

Lawn Tractor

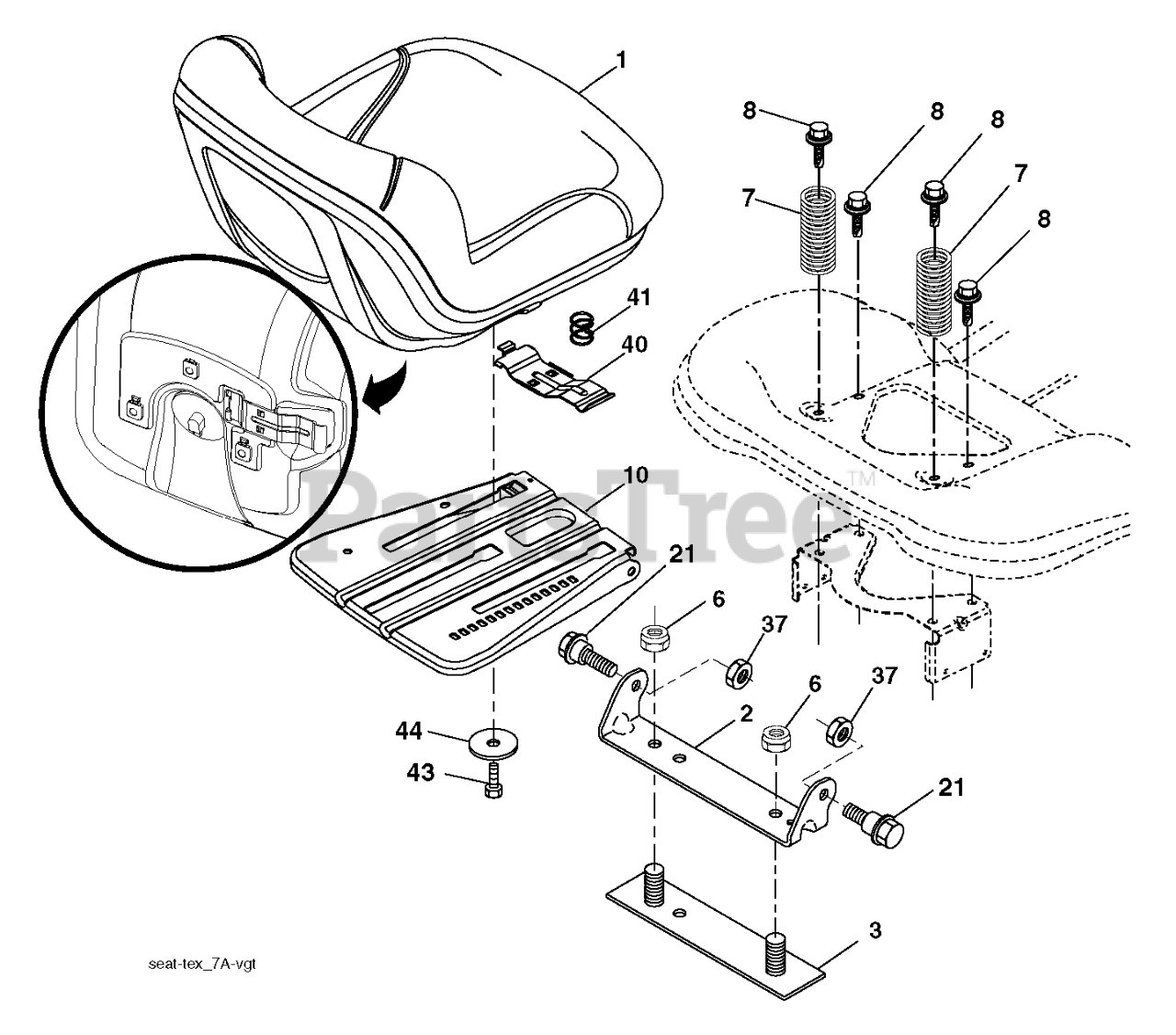

SEAT Parts Diagram

  • Title

21

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

STRAP

$6.99

$

Usually ships in 3-10 days

0

44

Husqvarna 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532424067

RP SEAT.TH130.GRY.MILSCO.
(Superseded to 532439819)

$239.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

10

Husqvarna 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

43

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
