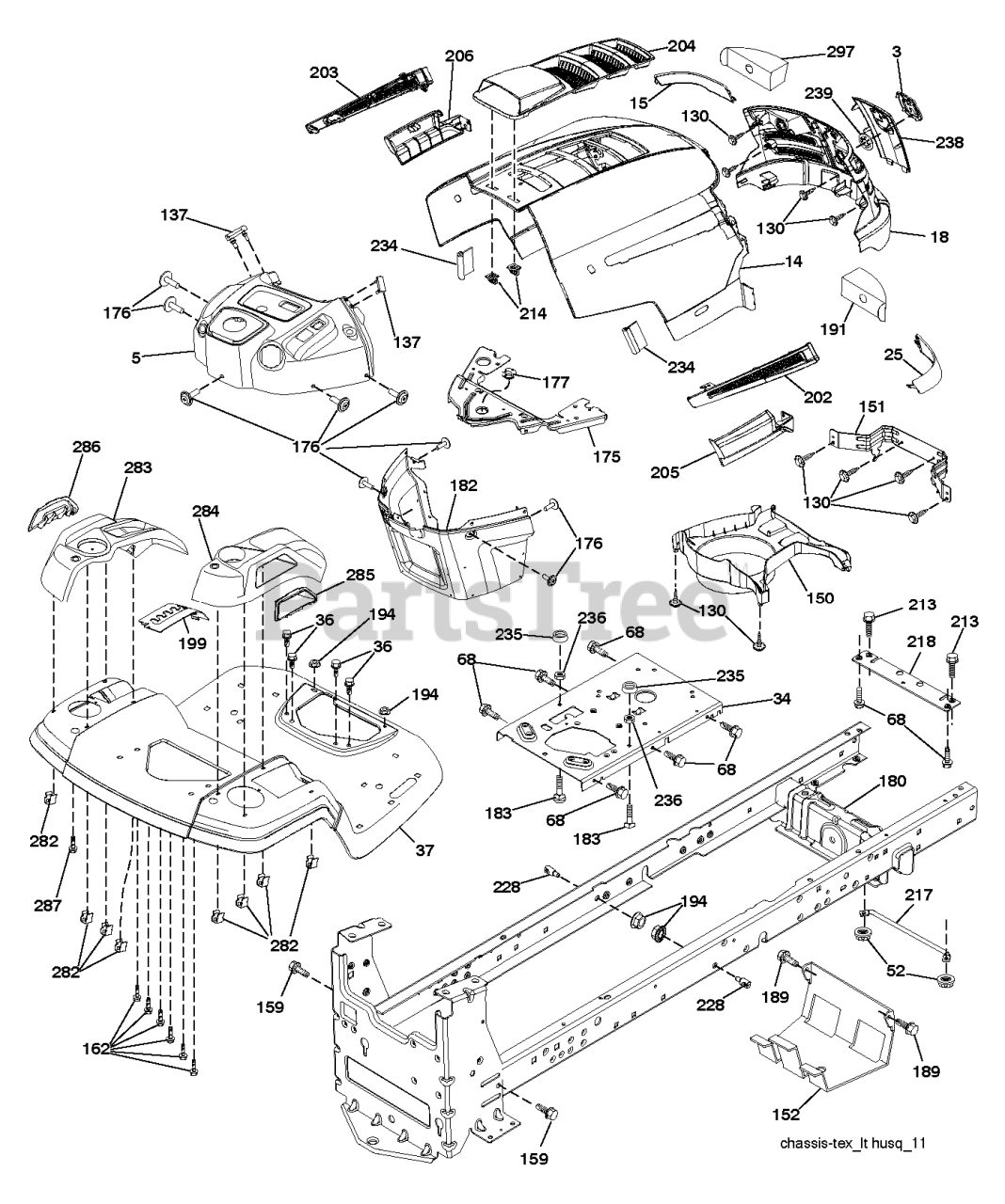

LTH 171 (960410023-04) - Husqvarna Lawn Tractor (2010-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

CHASSIS & ENCLOSURES Parts Diagram

  • Title
202

Husqvarna 532411075

VENT SIDE HOOD LH
(Superseded to 532406670)

$13.99

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

204

Husqvarna 532411116

VENT TOP HOOD
(Superseded to 532441375)

$30.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532441267

HOOD.HUSQVARNA.LT.ORANGE

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532411079

LENS.HUSQVARNA LT.LH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

150

$40.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532411074

VENT SIDE HOOD RH
(Superseded to 532406671)

$10.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532426963

GRILLE.SVC.HUSQVARNA.LT.GREY
(Superseded to 584382301)

$72.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532413485

PLATE.DECK.LIFT.HUSQ.LT

$11.99

$

In Stock, only 1 left!

0

297

Husqvarna 532406665

INSERT REFLECTIVE

$9.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

238

Husqvarna 532411119

TRIM
(Superseded to 532407881)

$22.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532407592

DASH
(Superseded to 532438964)

$78.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532411076

SKIRT SIDE RH
(Superseded to 532406668)

$13.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

285

Husqvarna 532416315

CONSOLE INSERT RH

$17.99

$

In Stock, only 1 left!

0

286

Husqvarna 532416317

CONSOLE.INSRT.LH.HUSQ.LT.BLACK

$13.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

239

$15.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

191

Husqvarna 532416500

INSERT.REFLECTIVE.RH.

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532411078

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532405012

RP LOGO
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

37

Husqvarna 532441266

FENDER.TLT.FS.W/CUPHLD.ORANGE

$205.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532195457

CHASSIS
(Superseded to 579841501)

$250.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532407176

DASH.LOWER.PREDATOR LT

$79.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

151

Husqvarna 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

206

Husqvarna 532411077

SKIRT SIDE LH
(Superseded to 532441345)

$13.99

$

Usually ships in 3-10 days

0

283

Husqvarna 532416316

CONSOLE.DECK.LIFT.HUSQ.N/FR.GR
(Superseded to 532413492)

$46.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532416345

CONSOLE.SHFT.HYD,HUSQL
(Superseded to 583746501)

$26.99

$

Usually ships in 3-10 days

0
