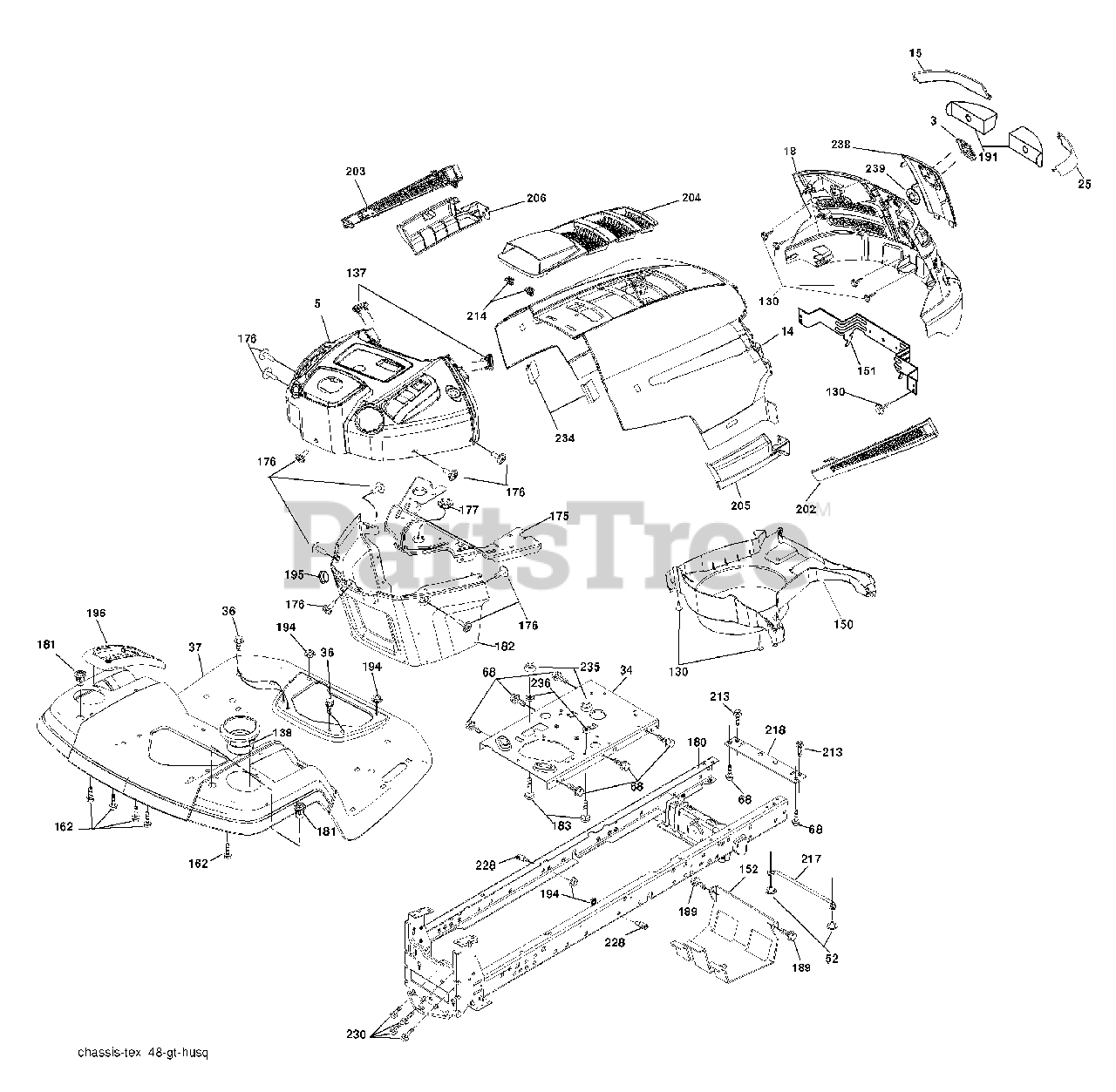

LTH 1538 (960430038-01) - Husqvarna 38" Lawn Tractor (2007-08) Chassis Parts Diagram

38" Lawn Tractor

Chassis Parts Diagram

  • Title
3

Husqvarna 532405012

Logo
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

5

Husqvarna 532407592

Dash
(Superseded to 532438964)

$78.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532411073

Hood
(Superseded to 532441267)

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532411079

Lens LH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532406667

Grille/Lens Asm.
(Superseded to 532439421)

$157.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532411078

Lens RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

Plate Engine
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532402953

Fender
(Superseded to 532441266)

$205.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crown Lock 5/16
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw THDROL 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532191611

Screw
(Superseded to 532416358)

$

$

Not available

137

Husqvarna 532407590

Bumper Dash

$6.49

$

In Stock, Qty 6

0

138

Husqvarna 532402954

Cupholder
(Superseded to 532439747)

$8.99

$

In Stock, only 1 left!

0

150

$30.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532407807

Bracket Pivot

$31.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

Shield Browning

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532199472

Crossmember

$28.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

Bushing Steering

$5.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532195457

Chassis
(Superseded to 579841501)

$250.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo

$

$

Not available

182

Husqvarna 532198917

Dash Lower
(Superseded to 532407176)

$79.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874780520

Bolt 5/16-18 unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

191

Husqvarna 532406665

Insert Reflective

$9.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532411115

Plug Dash
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0

196

Husqvarna 532402843

Console Asm. Deck Lift
(Superseded to 532414579)

$37.99

$

In Stock, only 1 left!

0

202

Husqvarna 532411074

Vent Side Hood RH
(Superseded to 532406671)

$10.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532411075

Vent Side Hood LH
(Superseded to 532406670)

$13.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532411116

Vent Top Hood
(Superseded to 532441375)

$30.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532411076

Skirt Side RH
(Superseded to 532406668)

$13.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532411077

Skirt Side LH
(Superseded to 532441345)

$13.99

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

Bolt 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

Clip Retainer

$6.49

$

In Stock, only 4 left!

0

217

Husqvarna 532409167

Rod Pivot Hood

$13.99

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-Piece Hood Stop

$7.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

Stud Fastener

$

$

Not available

230

Husqvarna 532170165

Bolt Shoulder 5/16-18

$4.99

$

In Stock, Qty 7

0

234

Husqvarna 532404742

Bumper Hood

$6.99

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

Spacer Fender

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Lock 5/16-18 unc

$7.49

$

Usually ships in 3-10 days

0

238

Husqvarna 532411119

Trim
(Superseded to 532407881)

$22.99

$

Usually ships in 3-10 days

0

239

Husqvarna 532404883

Clip Tinnerman

$15.99

$

Usually ships in 3-10 days
