LTH 1536 (954170223-C) - Husqvarna 36" Lawn Tractor (2005-01) CHASSIS & ENCLOSURES Parts Diagram

36" Lawn Tractor

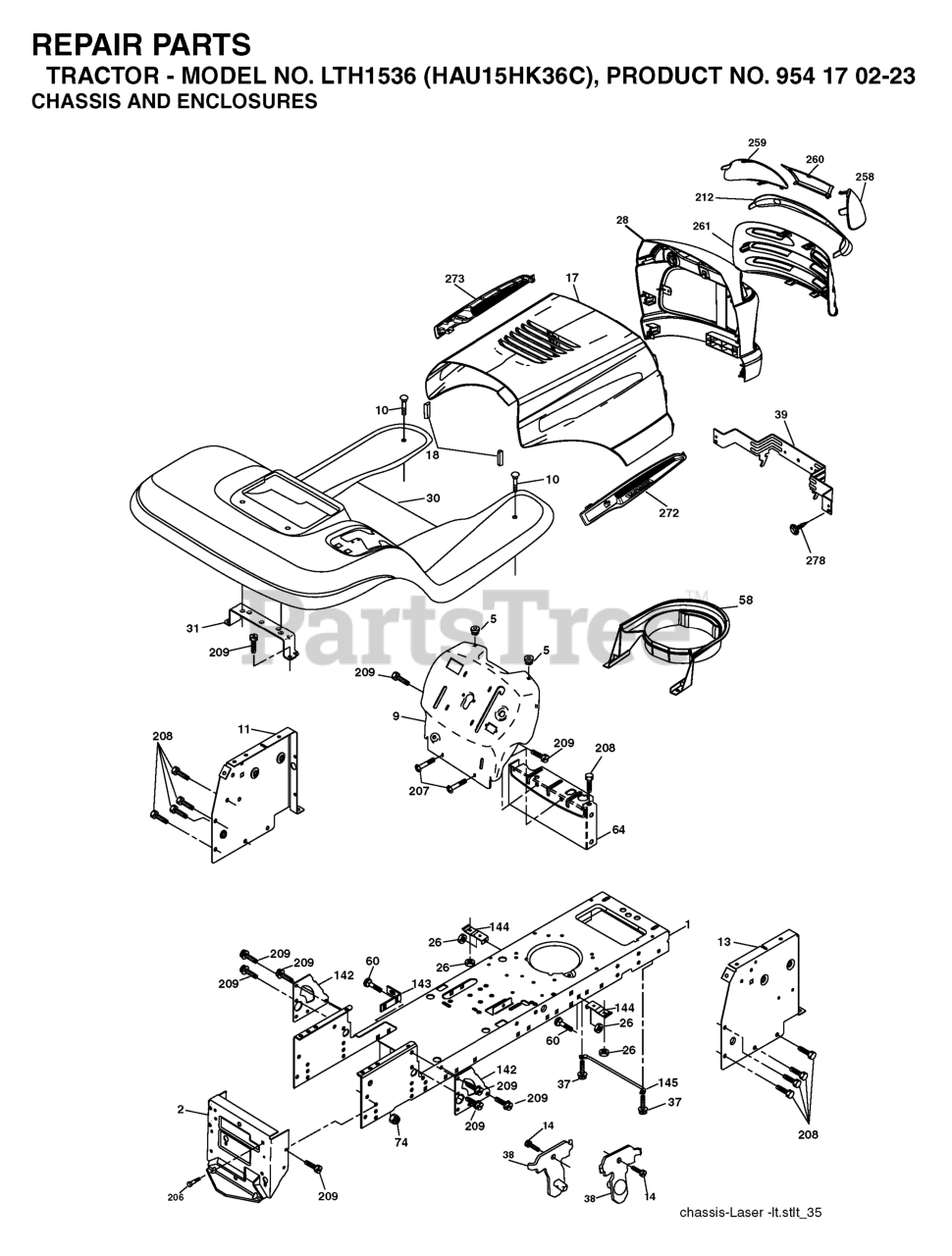

CHASSIS & ENCLOSURES Parts Diagram

  • Title

9

Husqvarna 532193937

FENDER.STL.W/O CUPHLDR.ROS.422

$157.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532181719

PANEL DASH RH
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

261

Husqvarna 532185433

INSERT GRILLE

$24.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

272

Husqvarna 532188895

VENT.HOOD.LASER.

$11.99

$

Usually ships in 3-10 days

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

278

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

58

Husqvarna 532187154

NEEDS DESCRIPTION

$

$

Currently unavailable

64

Husqvarna 532154798

DASH LOWER

$20.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193938

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 532188893

VENT.HOOD.LASER.III
(Superseded to 588251301)

$47.99

$

Usually ships in 3-10 days

0

258

Husqvarna 532185213

LENS LH
(Superseded to 532183378)

$10.99

$

In Stock, only 1 left!

0

143

Husqvarna 532186689

BRACKET, SWAYBAR CHASSIS

$6.99

$

In Stock, only 2 left!

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

28

Husqvarna 532183538

$

$

Currently unavailable

273

Husqvarna 532188896

VENT.HOOD.LASER.

$15.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

144

Husqvarna 532175582

BRKT, FOOT REST

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

- -

Husqvarna 532193935

PLUG.SWITCH.LIGHT.428
(Superseded to 532193934)

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$

$

Not available

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532174714

BRACKET PIVOT LASER
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532183548

INSERT.LENS.REFLECTIVE

$

$

Not available

2

Husqvarna 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 7

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$17.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532185214

LENS LH
(Superseded to 532183379)

$10.99

$

In Stock, only 2 left!

0

74

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

260

Husqvarna 532185429

COVER.LENS.HUSQ.( HAVE GRAY)

$

$

Not available

- -

Husqvarna 532187801

PLUG

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0
