LTH 145 - Electrolux/AYP Lawn Tractor SEAT ASSEMBLY Parts Diagram

Lawn Tractor

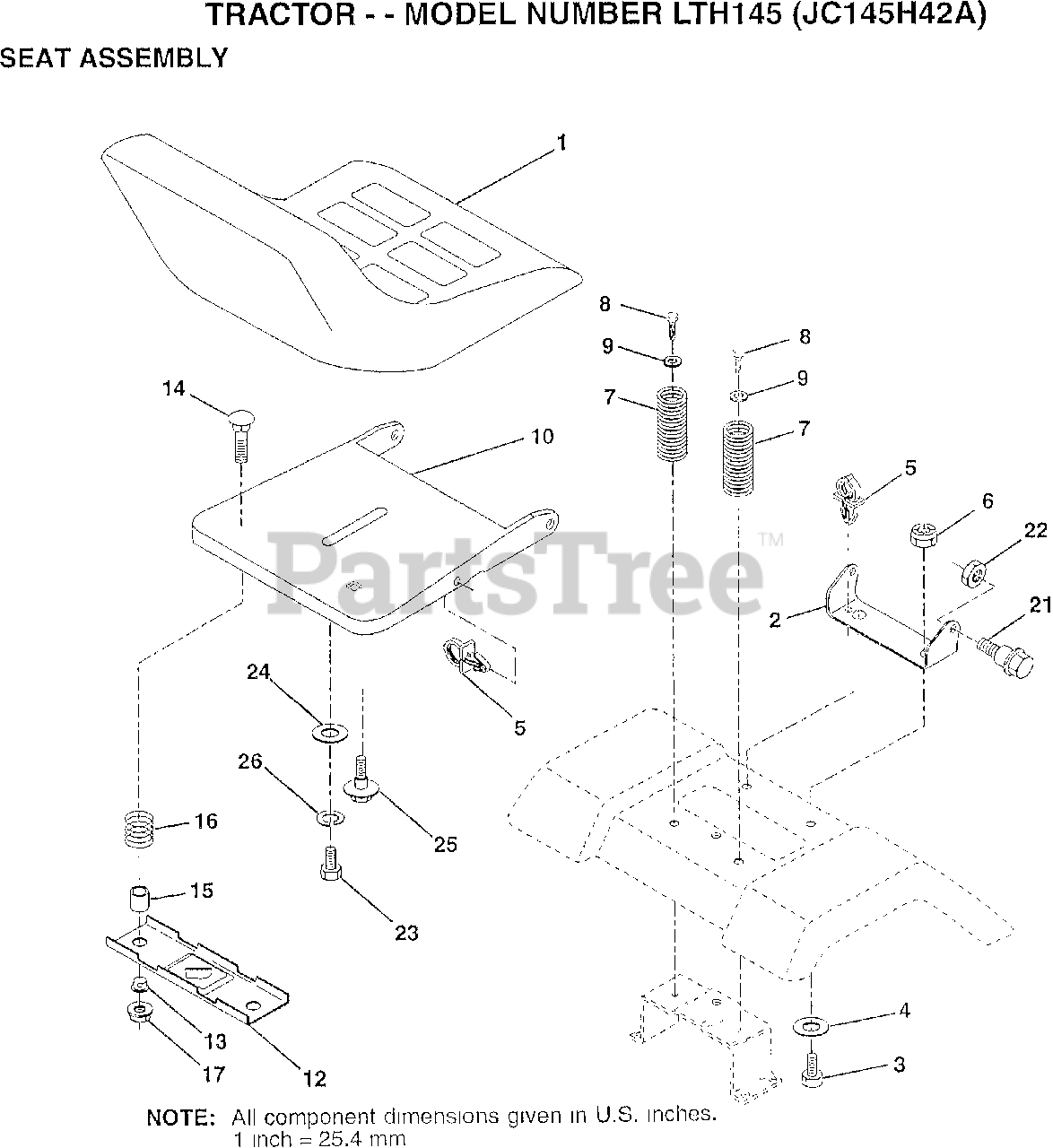

SEAT ASSEMBLY Parts Diagram

  • Title

1

Electrolux/AYP 532127428

SUB= 140119
(Superseded to 532140119)

$206.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532140551

SUB= 140551

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 874760616

BOLT FIN HEX 3/8-16 X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 819131610

WASHER 13/32 X 1 X 10 GA

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 532145006

SUB= 145006

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124181

SUB= 124181X
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 817490616

SCREW THDROL 3/8-16 X 1 TY-TT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 819131614

WASHER 13/32 X 1 X 14 GA
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532155925

SUB= 155925
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532121246

SUB= 121246X
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532121248

SUB= 121248X

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 872050411

BOLT RDHD SQNK 1/4-20X 1-3/8

$

$

Not available

15

Electrolux/AYP 532134300

SUB= 134300

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532121250

SUB= 121250X

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532153236

SUB= 153236
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 873800500

LOCKNUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 874780814

BOLT FIN HEX 1/2-13 X 7/8 GR 5
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 819171912

WASHER 17/32 X 1-3/16 X 12 GA

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 532127018

SUB= 127018X

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 810040800

WASHER LOCK HVY HLCL SPR 1/2

$6.99

$

Usually ships in 3-10 days

0
