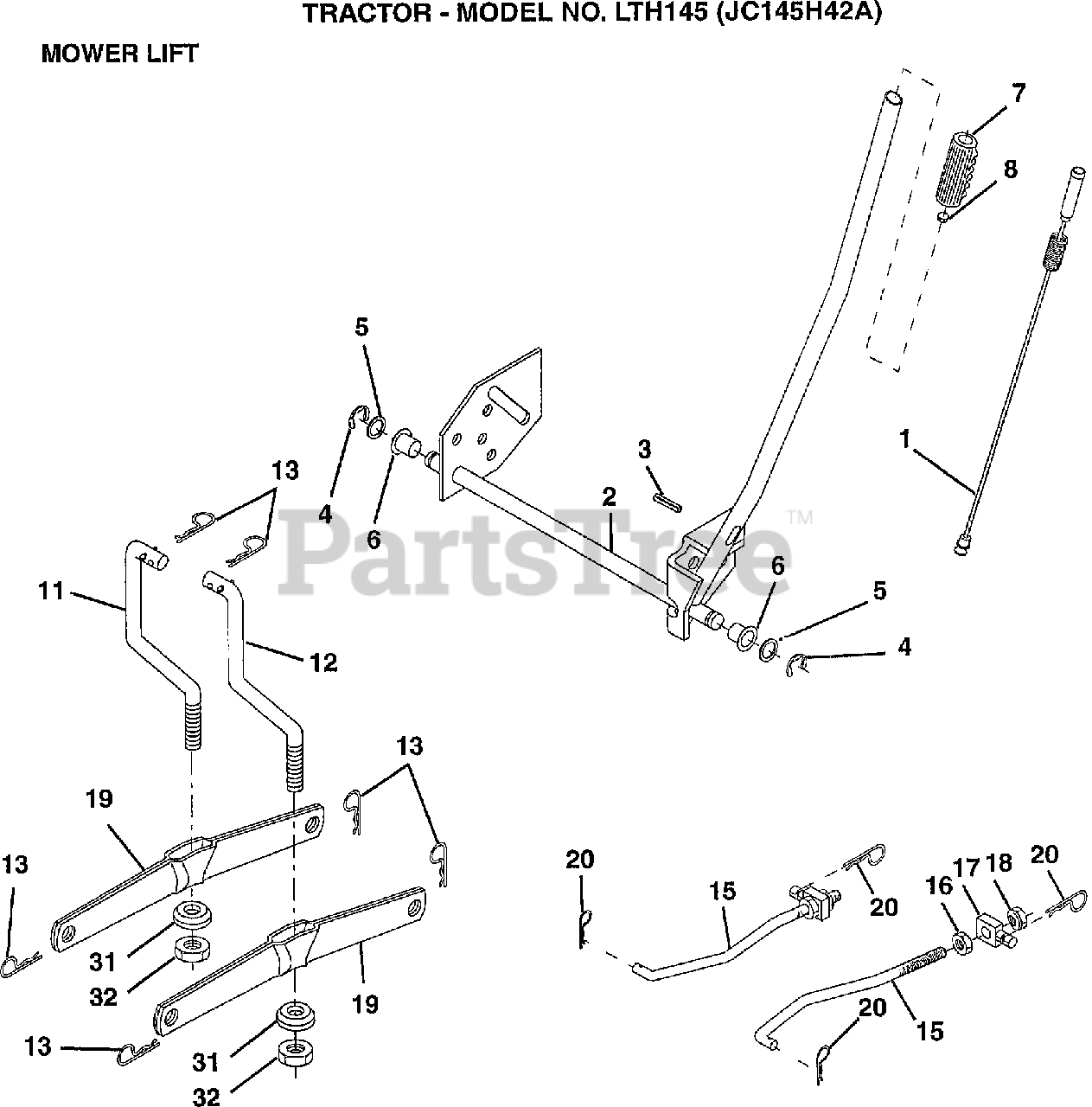

LTH 145 - Electrolux/AYP Lawn Tractor MOWER LIFT Parts Diagram

Lawn Tractor

MOWER LIFT Parts Diagram

  • Title

1

Electrolux/AYP 532159460

SUB= 159460

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532159471

SUB= 159471

$54.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532105767

SUB= 105767X

$6.49

$

In Stock, only 3 left!

0

4

Electrolux/AYP 812000002

E RING #5133-62

$7.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 819211621

WASHER PLTD 21/32 X 1 X 21 GA

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532120183

SUB= 120183X

$6.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 532109413

SUB= 109413X
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532124526

SUB= 125925X
(Superseded to 532125925)

$

$

Not available

11

Electrolux/AYP 532139865

SUB= 145537
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 532139866

SUB= 151140
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 532124670

SUB= 85902
(Superseded to 532085902)

$

$

Not available

15

Electrolux/AYP 532127218

SUB= 127218

$17.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 873350800

NUT JAM HEX 1/2-13
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 532130171

SUB= 130171
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 873800800

NUT LOCK W/WSH 1/2-13
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532139868

SUB= 139868

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532124660

SUB= 3146R
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532140302

SUB= 140302
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0
