LTH 145 (954140006-A) - Husqvarna Lawn Tractor (1997-01) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

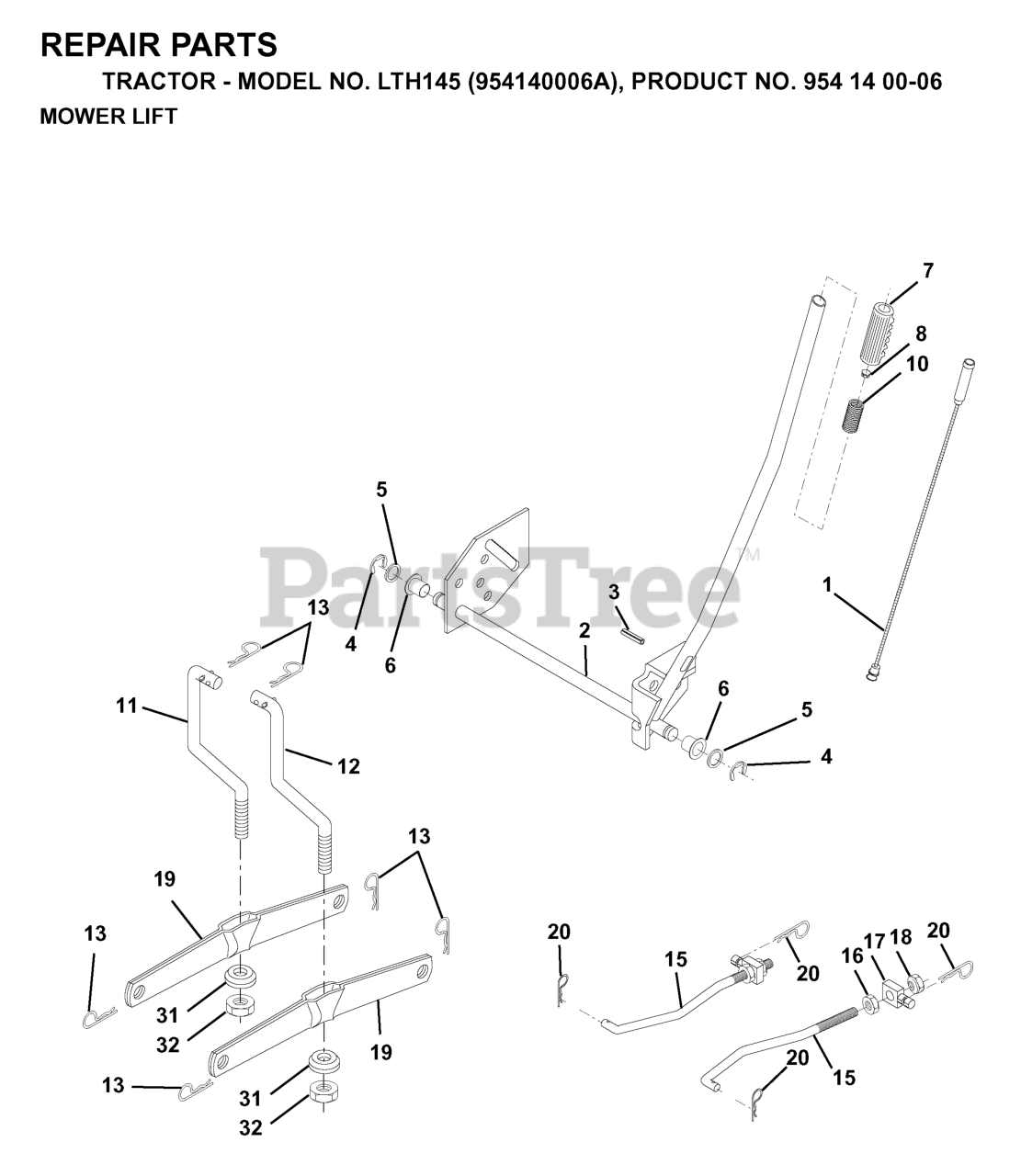

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

17

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

19

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532139866

LINK LIFT RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

11

Husqvarna 532139865

LINK LIFT LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

15

Husqvarna 532127218

FRONT LINK

$17.99

$

In Stock, only 4 left!

0

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532145117

SHAFT ARM LIFT RH

$

$

Not available

10

Husqvarna 532122512

SPRING, COMP T

$9.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532136973

WIRE.INNER.HANDLE.LIFT.LEVER

$

$

Not available
