LTH 140 (954001192-C) - Husqvarna Lawn Tractor (1998-05) STEERING Parts Diagram

Lawn Tractor

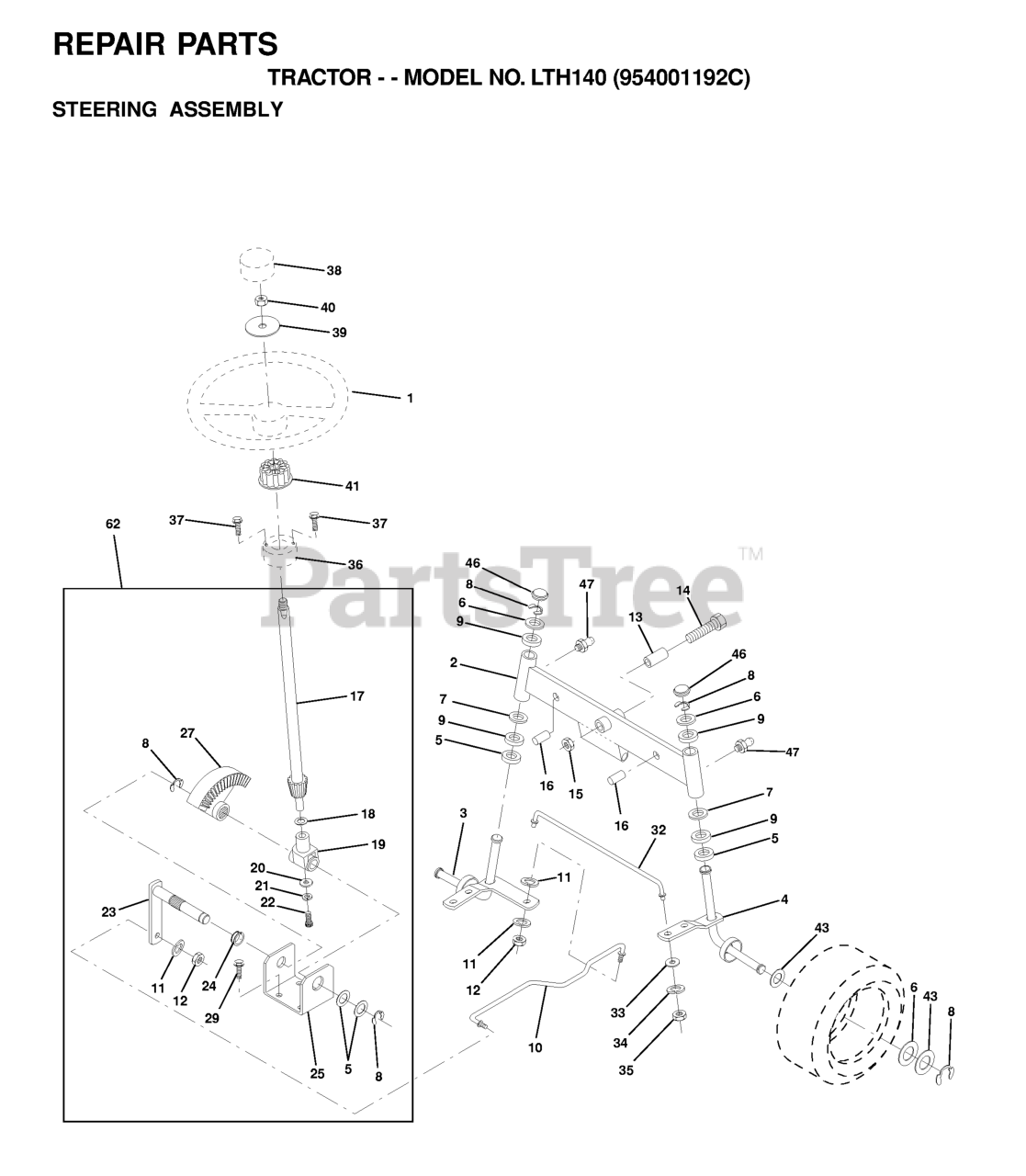

STEERING Parts Diagram

  • Title

4

Husqvarna 532135228

SPINDLE RH

$

$

Not available

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532149682

STEERING KIT
(Superseded to 532167905)

$159.99

$

In Stock, only 1 left!

0

19

Husqvarna 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

41

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

10

Husqvarna 532130468

LINK.DRAG.SOL.BALL JT.20.064

$93.99

$

In Stock, only 1 left!

0

25

Husqvarna 532124036

BRKT,STEERING

$

$

Not available

24

Husqvarna 532109816

NYLINER T (7283A)

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 532142033

AXLE ASSY

$

$

Not available

32

Husqvarna 532130467

TIE ROD
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

27

Husqvarna 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

16

Husqvarna 532132624

AXLE PIN

$

$

Not available

3

Husqvarna 532135227

SPINDLE LH

$

$

Not available

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

39

Husqvarna 532100712

WASHER

$

$

Not available

1

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

43

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 871070410

SCREW,SPECIAL
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

13

Husqvarna 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

17

Husqvarna 532128758

STEERING SHAFT
(Superseded to 532156543)

$66.99

$

In Stock, only 1 left!

0

21

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

20

Husqvarna 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 532145207

BUSHING STRG 3/4

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

35

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

33

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 873610600

NUT
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 874011056

Bolt, Hex Head 5/8-11 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

23

Husqvarna 532127501

SHAFT PITMAN
(Superseded to 532156365)

$

$

Not available

6

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0
