LTH 140 (954000642-A) - Husqvarna Lawn Tractor (1994-01) Steering Assembly Parts Diagram

Lawn Tractor

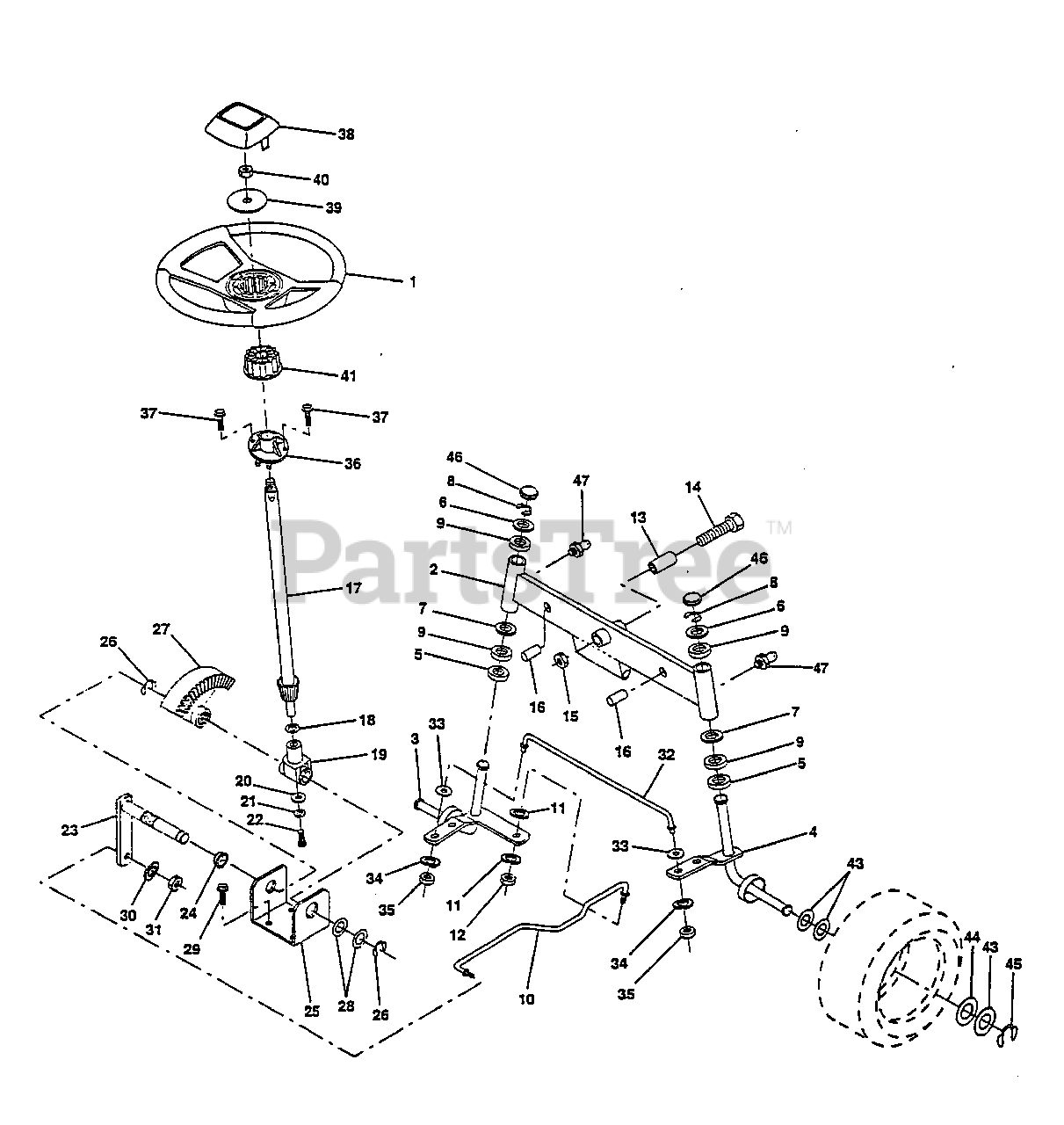

Steering Assembly Parts Diagram

  • Title
1

Husqvarna 532124415

Wheel Steering

$

$

Not available

2

Husqvarna 532142033

Axle Asm Fr LT W/gzks 38/42

$

$

Not available

3

Husqvarna 532135227

Spindle Asm LH

$

$

Not available

4

Husqvarna 532135228

Spingle Asm RH

$

$

Not available

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

6

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 819272016

Washer 27/32 X 1-1/4 X 16 Ga

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124937

Bearing Col Strg
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

10

Husqvarna 532130468

Link Drag Sol Ball Jt

$93.99

$

In Stock, only 1 left!

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

12

Husqvarna 873610600

Nut Fin 3/8-24 Unf
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532110438

Spacer Bearing Axle Front
(Superseded to 532155134)

$

$

Not available

14

Husqvarna 874011056

Bolt Hex 5/8-11 Unc X 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873901000

Nut Lock Flange 5/8-11 Unc
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532132624

Pin Axle 5/8 X 1 55/1 54 Lg

$

$

Not available

17

Husqvarna 532128758

Shaft Asm Strg 18 31x3/4
(Superseded to 532156543)

$66.99

$

In Stock, only 1 left!

0

18

Husqvarna 532057079

Washer Thrust 515x 750x 033

$6.49

$

In Stock, Qty 10

0

19

Husqvarna 532124035

Suport Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

20

Husqvarna 532126684

Washer Shim 1/4 X 5/8 X 062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 871070410

Screw Hex Socket 1/4-20 X 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532127501

Shaft Asm Pittman
(Superseded to 532156365)

$

$

Not available

24

Husqvarna 532109816

Nyliner Snap In

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532124036

Bracket Steering

$

$

Not available

26

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532136874

Gear Sector

$80.99

$

In Stock, only 1 left!

0

28

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

29

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 810040600

Washer Lock Hvy Hlcl 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

31

Husqvarna 873610600

Nut Fin Hex 3/8-24 Unf
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532130467

Rod Tie Wire Form
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

33

Husqvarna 819111216

Washer 11/32 x 12116 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

34

Husqvarna 810040500

Washer, Lock, Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

35

Husqvarna 873810500

Locknut 5/16-24 Unf
(Superseded to 873610500)

$

$

Not available

36

Husqvarna 532124720

Bushing Link Drag
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

37

Husqvarna 817431008

Screw Slftp #10-16 X 1/2 Ty-b
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532124416

Insert Cap Strg Wh Aut

$

$

Not available

39

Husqvarna 532100712

Washer 53 X 2 25 X 160

$

$

Not available

40

Husqvarna 873940800

Nut Hex Jam Taplock 1/2-20 Unf

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532100711

Adapter Wheel Strg
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

43

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ja

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ja

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 812000029

Ring Klip #25304-75

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532121232

Cap Spindle Fr Top

$4.99

$

In Stock, Qty 8

0

47

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0
