LTH 140 (954000642-A) - Husqvarna Lawn Tractor (1994-01) Seat Assembly Parts Diagram

Lawn Tractor

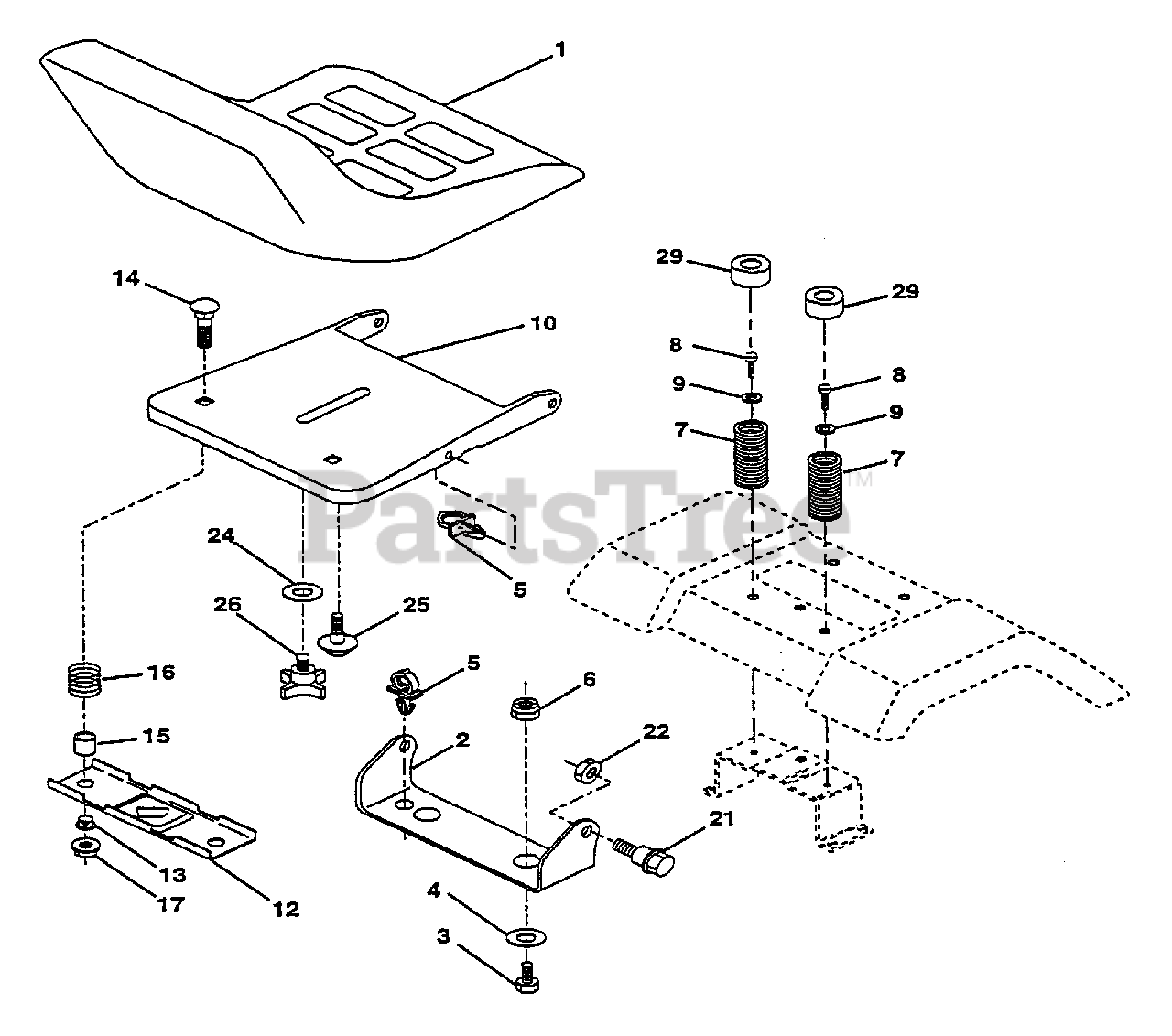

Seat Assembly Parts Diagram

  • Title
1

Husqvarna 532124185

Seat
(Superseded to 532401042)

$206.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140551

Bracket Pivot Seat

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 874760612

Bolt, Hex 3/8-16unc X 2-1/2

$4.99

$

In Stock, only 3 left!

0

4

Husqvarna 819131610

Washer 13/32 X 1 X 10 Ga

$6.49

$

In Stock, Qty 7

0

5

Husqvarna 532140407

Clip Push in .375 x .250

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut, Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 817490616

Screw Hwsh Thdrol 3/8-16x1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 819131614

Washer 13/32 X 1 X 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532140552

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing Snap

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050411

Bolt 1/4-20x1-3/8

$

$

Not available

15

Husqvarna 532134300

Spacer Split

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532121250

Spring Cprsn

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Locknut 1/4 Gr. 5
(Superseded to 873900400)

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 532139888

Bolt, Shoulder 5/16-18 Unc

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

Washer 17/32 X 1-3/16 X 12 Ga

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532127018

Bolt, Shoulder 5/16-18 X 62

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532120068

Knob Seat 1/2-13unc
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532124238

Cap Spring Seat

$

$

Not available
