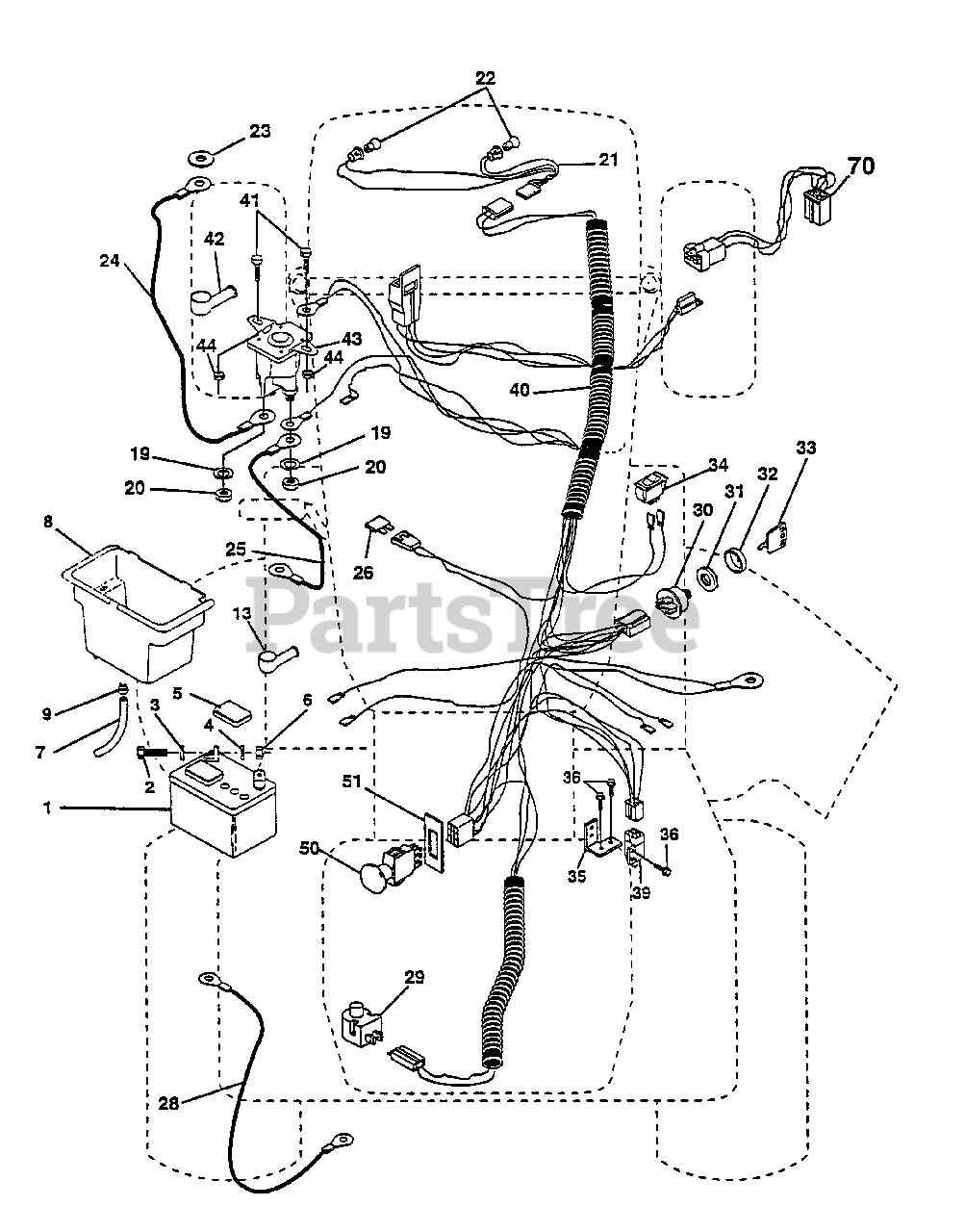

LTH 140 (954000642-A) - Husqvarna Lawn Tractor (1994-01) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532121537

Battery 12 Volt 30 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 819091016

Washer 9/32 X 5/8 X 16 Ga

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 532121264

Caps Battery 20/25/30 Amp

$

$

Not available

6

Husqvarna 873220400

Nut Fin Hex 1/4-20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 532109238

Tube Plastic 12"

$

$

Not available

8

Husqvarna 532133753

Case Battery w/o Lid

$

$

Not available

9

Husqvarna 532109596

Clamp Hose Olive

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124783

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

19

Husqvarna 810090400

Washer Lock 1 /4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532136850

Harness Socket Light

$

$

Not available

22

Husqvarna 532004152

Bulb, Light # 1156

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 811150400

Washer, Lock Int. Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124770

Cable Battery 6ga 22" red
(Superseded to 532185464)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124964

Cable Battery 6ga 39" Red
(Superseded to 532005114)

$

$

Not available

26

Husqvarna 532108824

Fuse 30 Amp Auto Green

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532124773

Cable Ground 6ga 12"black
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Husqvarna 532140399

Switch Ign 3 pos
(Superseded to 532158913)

$66.99

$

In Stock, only 1 left!

0

31

Husqvarna 532140400

Nut Ignition
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

Cover Sw Key

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.99

$

In Stock, Qty 8

0

34

Husqvarna 532110712

Switch Light BIk Blk Red

$9.49

$

In Stock, only 4 left!

0

35

Husqvarna 532108236

Bracket Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817021008

Screw Hex Tapping # 10-24 X 1/2

$4.99

$

In Stock, Qty 14

0

39

Husqvarna 532109553

Switch Interlock Clutch
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532140421

Harness Ign Kohl Fend HI Amm

$72.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

Bolt Fin Hex 1/4-20uncxl/2 Gr5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532138406

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

44

Husqvarna 87360400

Nut Keps Hex 1/4-20 Unc

$

$

Currently unavailable

45

Husqvarna 532122822

Ammeter Rectangular

$20.99

$

In Stock, only 1 left!

0

50

Husqvarna 532140404

Swtitch PTO 3 pdt deltg
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

51

Husqvarna 532140405

Ring Retainer PTO

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532140426

Harness Engine Koh. cmd I.15AR

$

$

Not available
