LTH 135 (954170089-B) - Husqvarna Lawn Tractor (2004-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

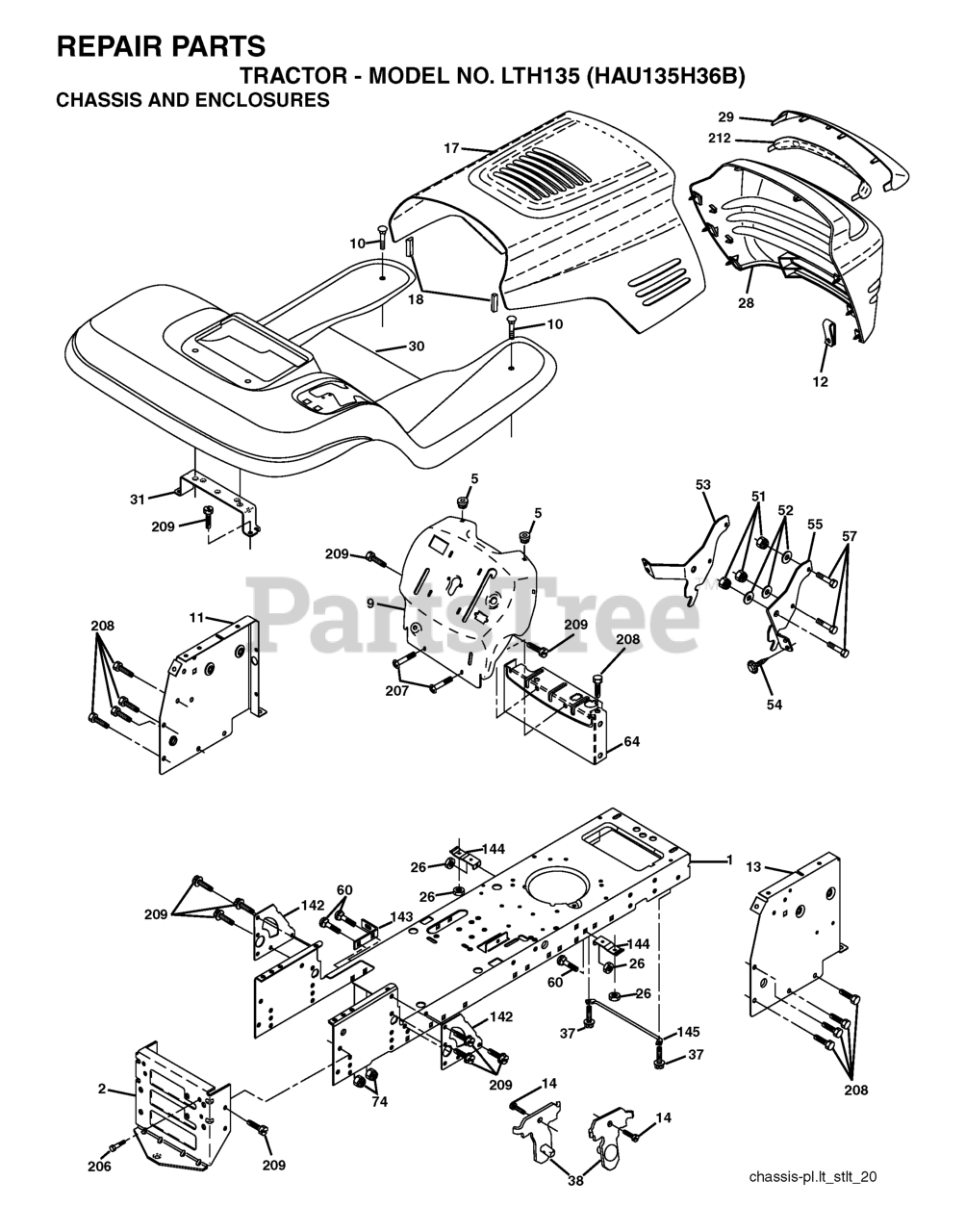

CHASSIS & ENCLOSURES Parts Diagram

  • Title
11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$

$

Not available

29

Husqvarna 532176645

LENS
(Superseded to 532146654)

$

$

Not available

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532179845

GRILLE/LENS ASM

$

$

Not available

212

Husqvarna 532156229

REPL BY 532 1745-03
(Superseded to 532174503)

$26.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

14

$6.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

53

Husqvarna 532144697

BRACKET.GRILLE.LH

$

$

Not available

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532154798

DASH LOWER

$20.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532171853

DASH
(Superseded to 532168336)

$

$

Not available

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

143

Husqvarna 532186689

BRACKET, SWAYBAR CHASSIS

$6.99

$

In Stock, only 2 left!

0

31

Husqvarna 532139976

BRACKET.SUPPORT.FENDER

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532186689

BRACKET, SWAYBAR CHASSIS

$6.99

$

In Stock, only 2 left!

0

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

$21.99

$

In Stock, only 1 left!

0

17

Husqvarna 532162237

HOOD ASM.
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

55

$

$

Not available

144

Husqvarna 532175582

BRKT, FOOT REST

$7.49

$

Usually ships in 3-10 days

0

74

$3.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532180507

FENDER FOOTREST
(Superseded to 532192813)

$

$

Not available

60

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0
