LTH 1342 (954567031-A) - Husqvarna 42" Lawn Tractor (2000-12) Mower Lift Parts Diagram

42" Lawn Tractor

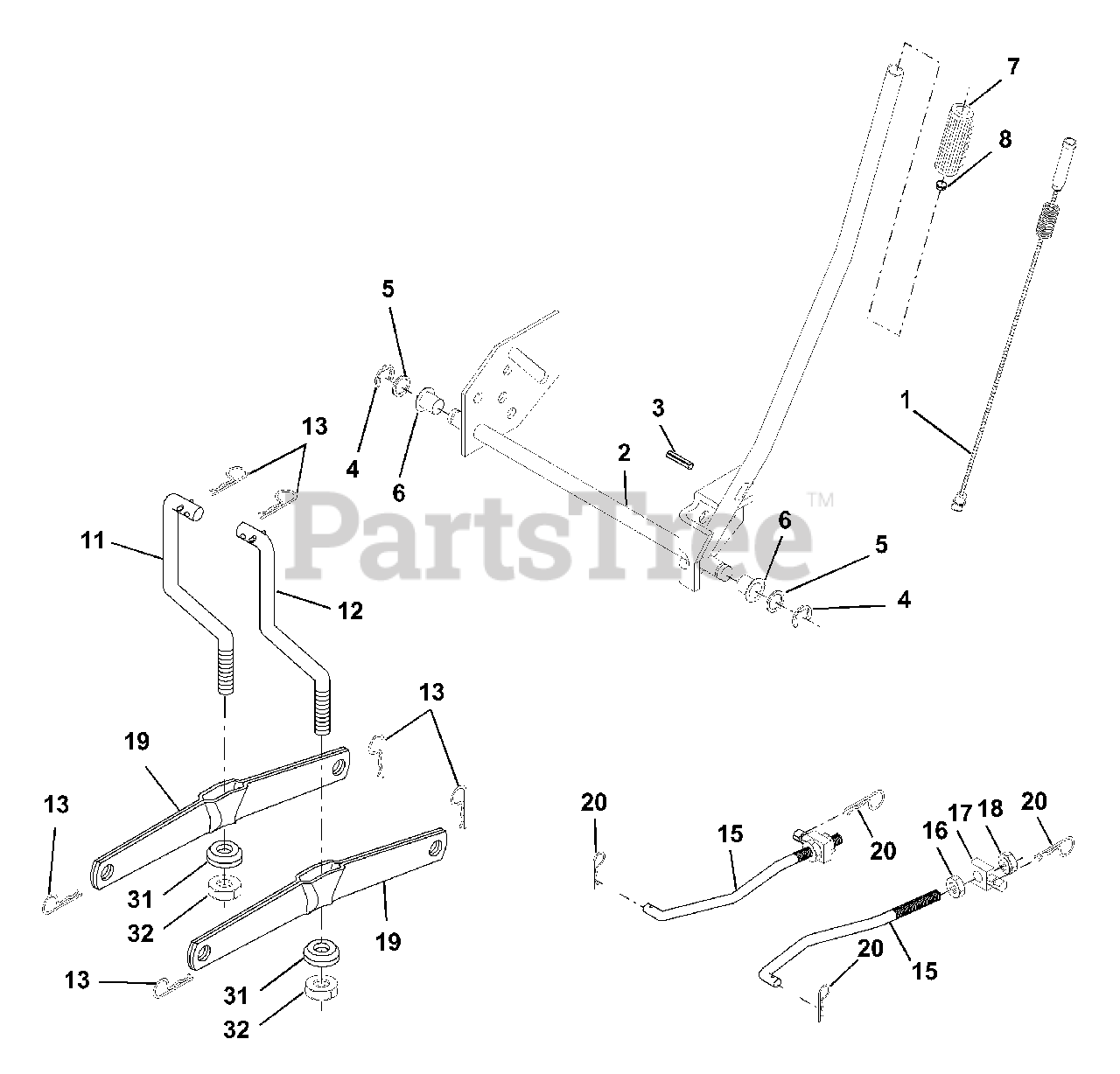

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532159460

Wire Asm Inner W/plunger LT

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159471

Shaft Asm Lift

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532105767

Pin Groove

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 812000002

E Ring #5133-62

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 819211621

Washer PLTD 21/32 X 1 X 21ga

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 532109413

Grip Handle Bicycle

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124526

Button Plunger Black
(Superseded to 532125925)

$

$

Not available

11

Husqvarna 532139865

Link Lift LH
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 532139866

Link Lift RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Husqvarna 532124670

Retainer Spring

$

$

Not available

15

Husqvarna 532173288

Link Front

$13.99

$

In Stock, only 3 left!

0

16

Husqvarna 873350800

Nut Jam Hex 1/2-13 Unc

$

$

Not available

17

Husqvarna 532130171

Trunnion Blk Zinc
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 873800800

Nut Lock W/Wsh 1/2-13 Unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532139868

Arm Suspension Rear

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532163552

Spring, Retainer
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532169865

Bearing Pvt. Lift

$

$

Not available

32

Husqvarna 873540600

Nut Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0
