LTH 130 - Husqvarna Lawn Tractor (1998-02) BRAKE / REAR MOWER LIFT Parts Diagram

Lawn Tractor

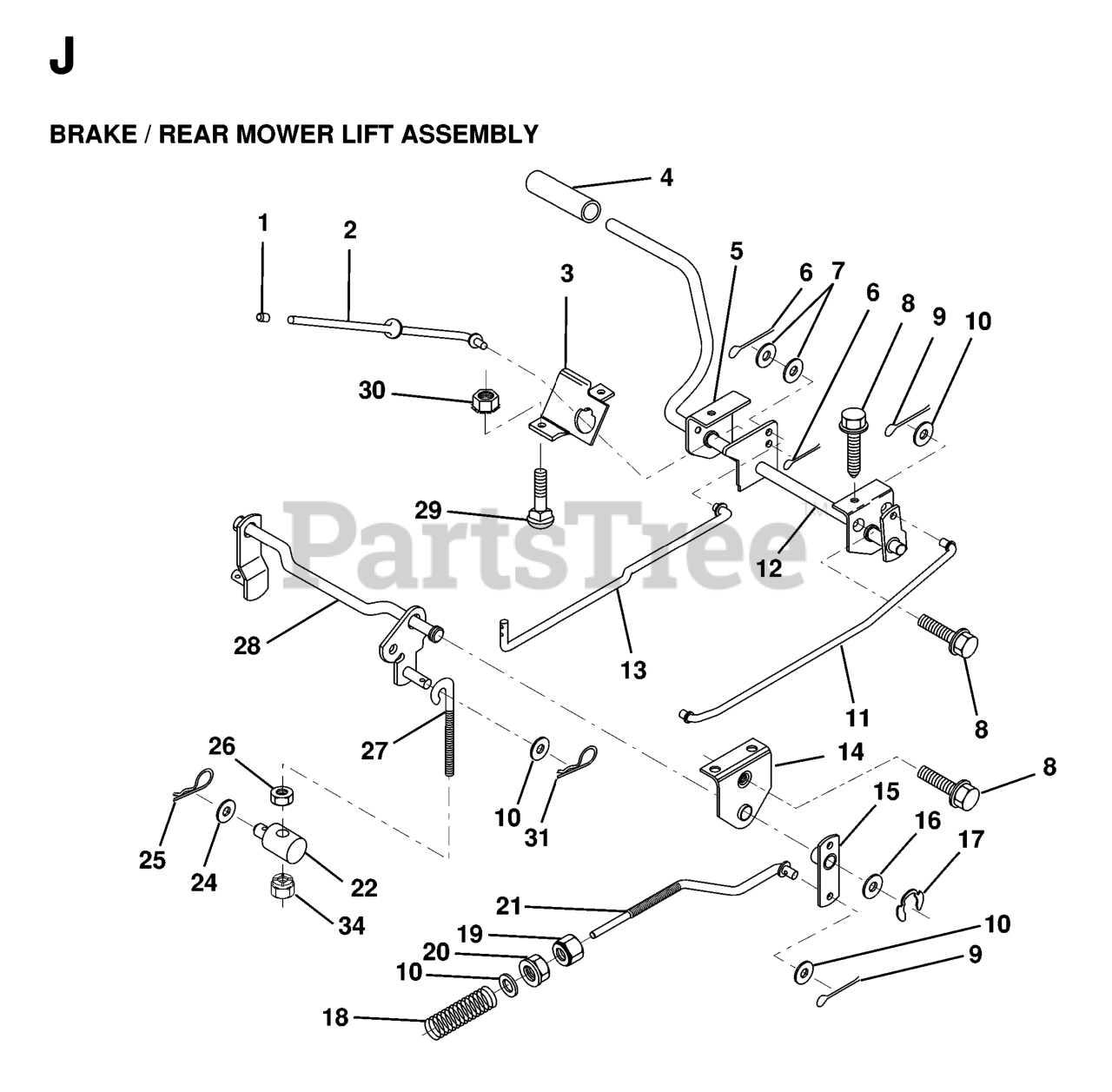

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title
34

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532123437

BRKT,PARK BRAKE

$

$

Not available

22

Husqvarna 532144585

TRUNNION, LEFT

$

$

Not available

31

Husqvarna 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532133332

ARM, BRAKE ASMBLY

$

$

Not available

5

Husqvarna 532122504

BRKT,CLU PEDAL LH

$

$

Not available

$6.49

$

In Stock, Qty 5

0

30

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532123543

ROD,FRT BRAKE

$

$

Not available

28

Husqvarna 532140776

REAR MOWER LIFT ASSY

$

$

Not available

17

Husqvarna 812000034

Ring, Klip Truarc #5304-75

$

$

Not available

2

Husqvarna 532123436

ROD,PARK BRAKE

$

$

Not available

14

Husqvarna 532121978

BRKT,LIFT SHAFT

$

$

Not available

10

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532127369

LINK.MOWER.REAR

$

$

Not available

6

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

20

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532151332

SPRING, BRAKE ROD

$6.49

$

In Stock, only 1 left!

0

1

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532123394

ROD,CLUTCH

$

$

Not available

19

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 19

0

12

Husqvarna 532139933

CLUTCH/BRAKE PEDAL ASSY

$

$

Not available

9

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

24

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

4

Husqvarna 532008156

FOOT PEDAL COVER

$

$

Not available

16

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0
